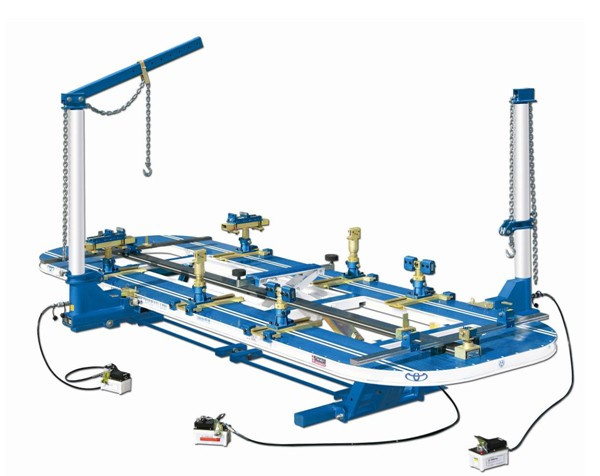

Automative Car Body Aligner with Secondary Lift Wld-5

Automative Car Body Aligner with Secondary Lift Wld-5
Price: US $ 14260-16800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Factory cost and excellent quality.
Our service tenet is "quality first, service highest".

Technical Parameter:

Working-bench Length5846mm
Working-bench Width2000mm
Working-bench Height320-820mm
Equipment Overall Weight3500kg
Hydraulic Power69MPa
Power Pulling capacity98000N
Radius of Pulling360°
Air Supply Required100PSI
Secondary lifting capacity2500kg
Secondary lifting height408mm

Features:
1. Adjustable vertical bench makes car easy on and off and convenient to be repaired.

2. Two pulling towers with large pulling force and long-lasting durability can be moved freely around the rail.

3. The high-precision movable three-dimensional laser measuring system is both reliable in accuracy and practical in USA.

4. Patent general-purpose jigs and auxiliary clamps guarantee the positioning and fixing of any type of cars.

5. Almost all deformation of cars are considered in the mechanics streamline design of auxiliary clamps.

6. The movable secondary lift system enables car to be loaded on the bench and be repaired more quickly and easily.

7. Mechanical and hydraulic self-lock device ensures safety doubly.

8. Pulling setup equipped both at top and bottom are always ready multi direction straightening for demanding structures.

9. The hydraulic system imported from USA has the advantages of reliable performance and long service life.

10. The global simultaneous car body database ensures the providing of the latest and fastest car body data.
Prod Model: WLD-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working-Bench Length: 5846mm
Working-Bench Width: 2000mm
Working-Bench Height: 320-820mm
Equipment Overall Weight: 3500kg
Hydraulic Power: 69MPa
Power Pulling Capacity: 98000n
Radius Of Pulling: 360degree
Air Supply Required: 100psi
Secondary Lifting Capacity: 2500kg
Secondary Lifting Height: 408mm
Type: Flatbed-type
Max. Lifting Capacity: 2.5T
Certification: CE
Condition: New
