Prod Model: |
WLD-8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working-Bench Length: |
6000mm |
Working-Bench Width: |
2000mm |
Working-Bench Height: |
320-1020mm |
Equipment Overall Weight: |
3550kg |
Hydraulic Power: |
69MPa |
Power Pulling Capacity: |
98000n |
Radius Of Pulling: |
360° |
Air Supply Required: |
100psi |
Secondary Lifting Capacity: |
2500kg |
Secondary Lifting Height: |
408mm |
Type: |
Flatbed-type |
Max. Lifting Capacity: |
4.5T |
Certification: |
CE |
Condition: |
New |
Product Description

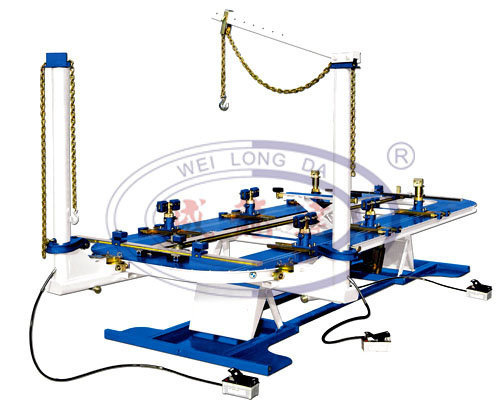

WLD-8 Automative Second Lift Car Bench
Features:
1. The high-accuracy large bench with both vertical lift and scissor lift provides an ideal place serving for several purpose.
2. The working height of the bench can be adjusted vertically between 300mm and 1020 mm as needed. High lift eases up straightening work.
3. The movable secondary lift system enables quick and accurate fixing of cars on the bench.
4. With powerful pulling force and unique fixing way the two movable hydraulic pulling towers can turn 360 degrees along the bench rail, making work on all sides of the vehicle fast and efficient.
5. The adjustable general-purpose clamps can fix any cars out of shape.
6. Pulling setup equipped both at top and bottom are always ready multi direction straightening for demanding structures.
7. Mechanical self-lock device driven by pneumatic system can realize long-distance operation, which ensures safe lifting of the bench and can prolong the life of oil cylinder.
8. The flexible and accurate three-dimensional laser measuring system can make measurement and repair happen at the same time.
9. The hydraulic system imported from USA has the advantages of reliable performance and long service life.
10. Car collision repair system is also named car bench, chassis straightener, auto body repair equipment, collision repair equipment, frame rack, frame machine,chassis straightening system, frame straightener, etc.
Specifications:
Working-bench Length | 6000mm |
Working-bench Width | 2000mm |
Working-bench Height: | 320-1020mm |
Equipment Overall Weight | 3550kg |
Hydraulic Power | 69MPa |
Power Pulling capacity | 98000N |
Radius of Pulling | 360° |
Air Supply Required | 100PSI |
Lifting Capacity | 5000kg |
Secondary lifting capacity | 2500kg |
Secondary lifting height | 408mmT |
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
