Automatic Lock Release 2 Post Lift (SHL-2-240D)
| Price: |
US $ 1380/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |

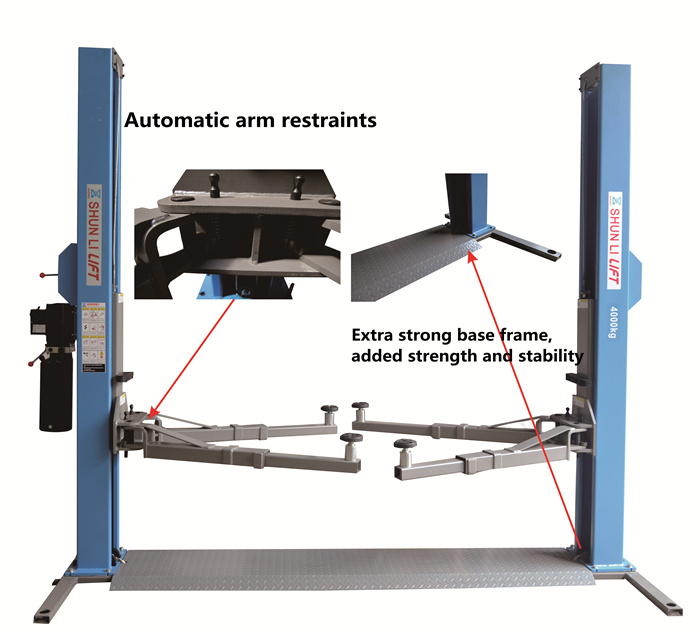

Product Specification1. Extra strong base frame, added strength and stability.
2. Driven by double hydraulic cylinders, steel wire chain-type elevating system
3. Automatic lock release, easy operation, just press UP/DOWN button.
4. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
5. Automatic arm restraints, lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.
6. Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
7. 3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
8. Door opening protection rubber as standard.
9. The overall design is suitable for tire tear open outfit, chassis maintenance, oil changes and maintenance, engineering vehicles such as regular vehicle maintenance; (suitable for conventional garage and service station to purchase)
10. Economical but reliable cast-iron cover motor, Optional aluminum motor

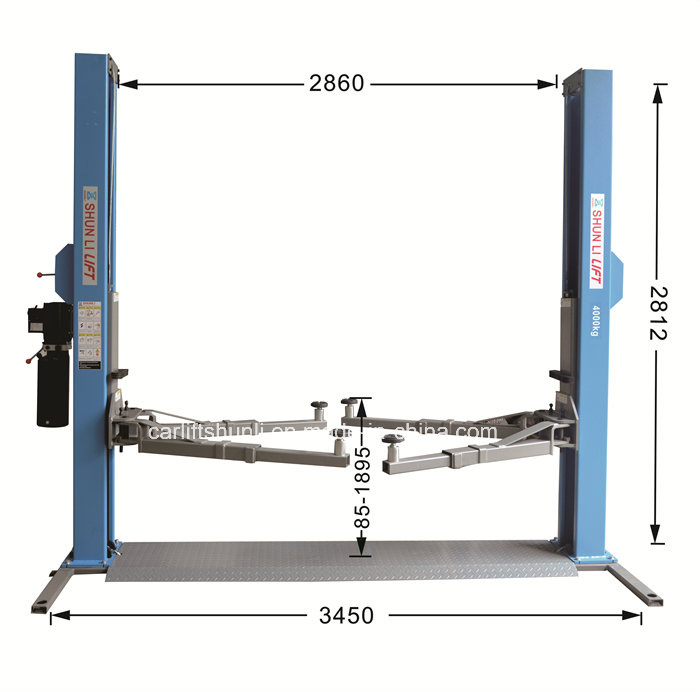

11. Optional imported pumping deviceTechnical parameter| Model | SHL-2-235D | SHL-2-240D |
| FOB Guangzhou price | 1125.00USD | 1180.00USD |
| Lift Capacity | 3.5T | 4.0T |
| Min height(mm) | 85 | 85 |
| Car max lifting height(mm) | 1880 | 1880 |
| Rise time(appro.) | 50s | 50s |
| Drop time(appro.) | 30s | 30s |
| Power of motor | 2.2KW | 2.2KW |
| Power supply | 220V/380V | 220V/380V |
| Height of the post(mm) | 2812 | 2812 |
| Inner Width between posts(mm) | 2860 | 2860 |
| Total width | 3860 | 3860 |
| Machine weight | 0.56T | 0.59T |
Product Details

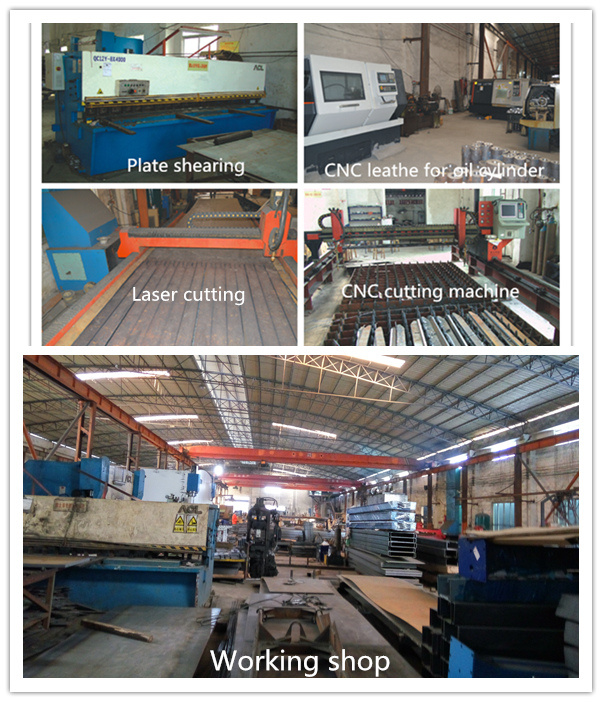

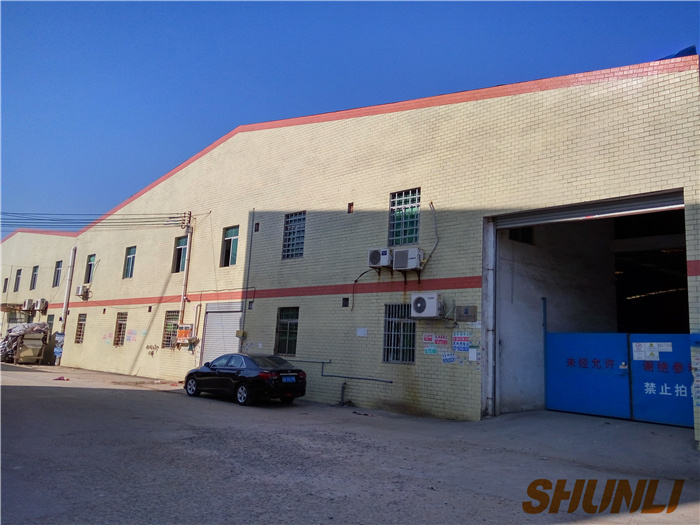

Our Factory
| Prod Model: |
SHL-2-240D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
2.2kw |
| Lifting Height (Main Machine): |
1880mm |
| Main Lifting Capacity: |
4000kg |
| Colour: |
Blue, Red, Grey, Yellow |
| Type: |
Double Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Two Post |
| Lifting Capacity: |
4000kg |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
