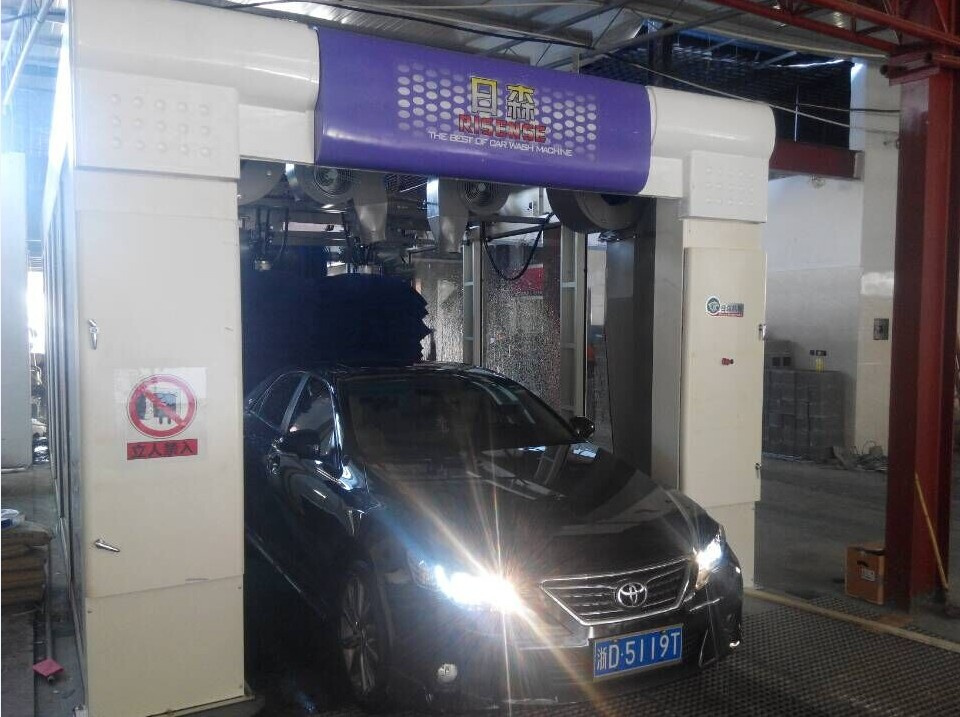

CC-690 Fully automatic tunnel car wash machine
Main Features:
1. Can identify the car model with photoelectric and approaching sensors.
2. Hot-dip galvanized frame can keep the whole machine stable and long life use.
3. PLC electronic control panels system can easy to operate and maintain.
4. Three function (Car wash, Inspection and management) to an operation panel.
5. Many wash procedure combination with high pressure water, wax and foams at will.
6. Inclinable side brush strengthens cleaning ability around the car body.
7. The dovetail foam brush makes the car washing more quiet and clean.
8. High efficiency shape drying to the car with photoelectric and approaching sensors.
9. The motor with IP67 make the machine work well in the water condition.
10. High quality control systems, motors and pumps from Japan can keep the car wash running with great performance in any conditions.
11. The electroplated conveyor was equipped with the tire corrector device system.
12. The LED warning light in the entrance can be recognized by driver easily.
13. Fully automatic wash in the bay and easy to install, operate use and maintain.
14. With on-site installation and operate training for free and long time quality guarantee to whole car wash.
The advanced structure and parts of CC-690 Automatic tunnel car wash machine
1.2 sets high efficiency silence dryer.
2. PLC control systems imported from Japan.
3. Automatic wax and foam formulating system.
4. Wax sprinkling system automated.
5. Fabric brush and second foam brush.
6. Hot-dip galvanized frame.
7. High pressure water systems.
8. The sensor made by BN from America.
9. The thin film operate panel with flame retardant and weather resistance.
10. The frequency converter made by SL from Taiwan.
11. The air cylinder made by YDK from Taiwan.
12. The IP67 waterproof motor made by CB from Japan.
| Specifications: |
| Overall dimensions | 9500x3800x3440mm |
| Assembling range | 11600x3800mm |
| Moving range | 11600x3800mm |
| Available size for car | 5200x2150x2200mm |
| Available car to wash | car/jeep/coach within 10seats |
| Washing time | 1'12"/car |
| Car wash capacity | 45-55cars/hour |
| Mains voltage | 3PHASE AC380V /50HZ |
| Total power | 42KW |
| Water supply | DN25mm/Waterflow rate≥200L/min |
| Air pressure | 0.75-0.9Mpa/Airflow rate≥0.1m³/min |
| Water/electricity consumption | 150L/Car, 0.6kw/Car |
| Shampoo consumption | 7ml/Car |
| Water wax consumption | 12ml/Car |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
