Automatic Bus and Truck Wash Machine for Clean Equipment
| Price: |
US $ 31000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
CB-730 Automatic bus and truck wash machineMain Features:1. Can identify the car model with photoelectric and approaching sensors. 2. Hot-dip galvanized frame can keep the whole machine stable and long life use. 3. PLC electronic control panels system can easy to operate and maintenance. 4. The nylon material brush makes the car washing more quiet and clean. 5. High quality control systems, pumps and motors from Italy.6. The high sensor on the top brush can keep the bus from damage.7. The motor with IP67 make the machine work well in the water condition.8. Fully automatic to wash the bus and truck body thoroughly.9. With on-site installation and operate training for free and long time quality guarantee to whole wash machine.

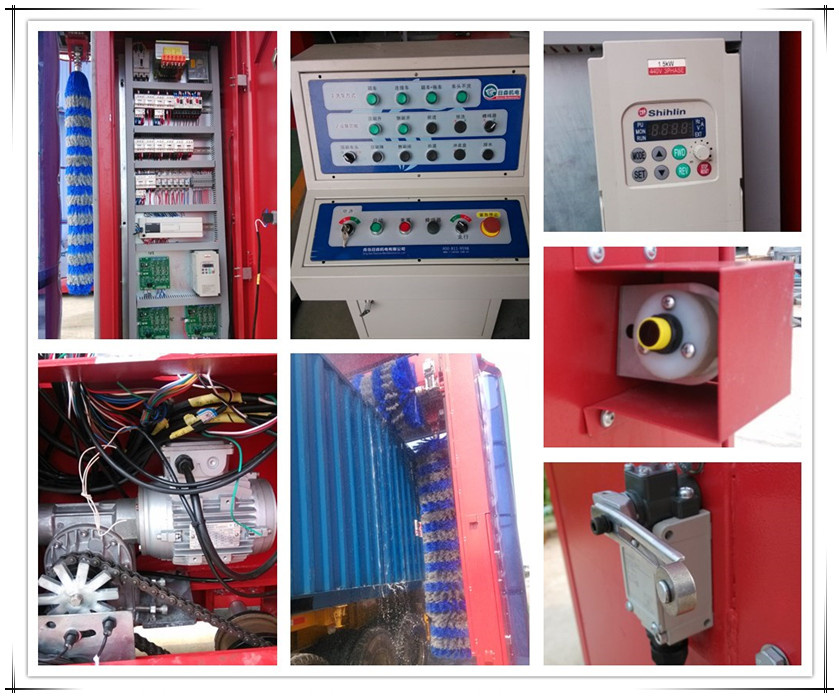

The advanced structure and parts of CB-730 bus wash machine1. LED light systems.2. PLC control systems imported from Japan.3. Automatic wax and foam formulating system.4. Wax sprinkling system automated.5. The second generation nylon brush.6. Hot-dip galvanized frame.7. High pressure water systems.8. The sensor made by BN from America.9. The operate panel with flame retardant and weather resistance.10. The frequency converter made by SL from Taiwan.11. The air cylinder made by YDK from Taiwan.12. The IP67 waterproof motor made by CD from Italy.| Specifications |
| Overall dimensions | 2150x4680x5200mm |
| Assembling range | 25000x6580mm |
| Moving range | 25000x5114mm |
| Available size for car | 18000x3500x4200mm |
| No. of brushes | 2-3 brushes |
| Available car to wash | bus, double-decker bus |
| Washing time | -- |
| Car wash capacity | 12-15buses/hour |
| Mains voltage | 3PHASE AC380V /50HZ |
| Total power | 8.86KW |
| Water supply | DN25mm/Waterflow rate≥120L/min |
| Water/electricity consumption | 250L/Bus, 0.59kw/Bus |
| Shampoo consumption | 25ml/Car |
All of us at Risense take great pride in offering our car wash for your consideration. We happy to answer any questions you may have or discuss with you which machine is best suit for your needs.
FAQWhich service will you offer?1. Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.Who will install my car wash?2. We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.How long will the machine quality guarantee?1. We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.2. The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.3. The working life of the car wash can up to 15-20years.
| Prod Model: |
CB-730 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2150X4680X5200mm |
| Automatic Type: |
Fully Automatic |
| Control System: |
PLC |
| Washing Way: |
Mobile Style |
| No. Of Brushes: |
2-3 Brushes |
| Fuel: |
Electric |
| Certification: |
ISO4001, ISO9001 |
| Material: |
Metal |
| Condition: |
New |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
