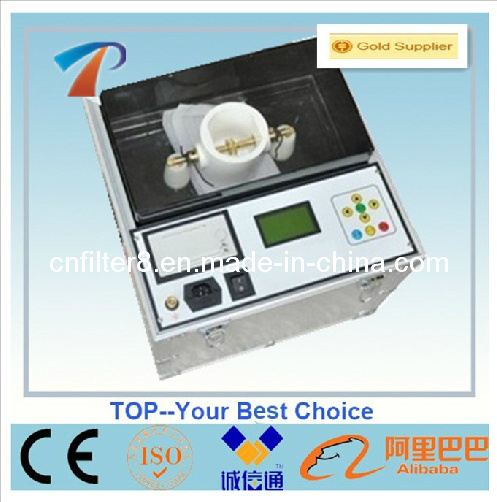

Automatic 80kV Insulation Oil breakdown voltage Tester(IIJ-II-80)
IIJ-II Insulation Oil Breaker Tester is adopted industrial single plate integrated circuit, new-style I/O jack, with unique inspection and anti-interference technology to greatly improve its reliability and functionality.
Features
Easy operation,high automation. (only press button once and all work done automatically)
Menu management, data input simple and convenient.
Store 99 data of oil sampling tests for review and print. The test data can be saved even the power is off.
The clock is still on after power off. (The internal time of the system just for test reference, not for standard time)
Strong anti-interference, high precision testing.
Small measurement, light weight, convenient for outdoor operation.
The software can be upgraded through RS232 terminal.(Optional)
transformer oil dielectric strength tester, used motor oil recycling machines, oil purifier equipment, oil purifier equipment, transformer oil test equipment, fuel oil purifier, transformer oil gas analysis, transformer turn ratio, oil analysis equipment, oil analysis equipment, transformer oil dielectric strength tester, supplier of cooking oil reuse machine, regeneration machine, dielectric strength meter, ce tester device
Test process
After packing for delivery
Our oil tester/ analyzer
1. Transformer oil Breakdown voltage Tester (BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Consolidation Point Determinator model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF
21. Underground water/gold detector model TP-UWD
Please contact us for more details.
|
Power supply |
AC220V±10%, 50Hz |
|
Output voltage |
80/100 kV |
|
Capacity |
2.0 kVA |
|
Speed of voltage increase |
about 2 k V/ s |
|
Voltage inspection accuracy |
1 % |
|
Breakdown sensitivity |
< 0.1 kV |
|
Waveform distortion |
≤ 1 % |
|
Breakdown response time |
≤ 10 ms |
|
Storage environment |
Temperature: 0 -40 C |
|
Humidity: Max. relative humidity 85% |
|
Storage environment |
Temperature: - 20 - 60 C |
|
Humidity: Max. relative humidity 75% |
|
Altitude |
<1500m (if over 1500m, it can be customized) |
|
Dimension |
420mm*400mm*380mm(100kV) |
|
Weight |
36kg(N.W.) (100kV) |
