Autocatalyst in Catalytic Converter of Exhaust System
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
WISDOM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Wisdom |
| Size: |
More Sizes |
| Shape: |
Can Be Customized to Your Requirement |
| Substrate: |
Metal Substrate |
| Durability: |
Above 120, 000 Km |
| Warranty: |
12 Monthes |
| Car Make: |
Universal |
| MOQ: |
1 Piece |
| Scope: |
Apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Certification: |
ISO9001 |
| Component: |
Catalytic Converter |
| Body Material: |
Ss/Fecral |
| Discharge Standard: |
Euroiii.Euroiv, Even Higher Standard |
| Main Market: |
USA, Europe, India, South America, etc. |
Product Description
What is a Catalytic converter and how does it work?
A catalytic converter is a device used to reduce harmful emissions released from a car's exhaust. It can be found between the extractors and muffler. Emissions from car's exhaust consist of noxious gases such as carbon monoxide, hydrocarbons and nitrogen oxide. They are responsible for smog, myriad
respiratory problems and damage to plant life.
Emissions pass through a metal honeycomb catalytic structure (normally consisting of a metallic catalysts, platinum, rhodium or palladium) that causes a chemical reaction with the noxious gases, converting them into less harmful gases such as carbon dioxide, nitrogen and water vapors.
Why did you choose us?
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications.
Product Description:
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality. Our product: | Brand | WISDOM |
| Material | Metal meterial |
| Size | More sizes and Spec. Can be customized to your engine |
| Shape | Round/ Racetrack/Oval or can be customized to your requirement

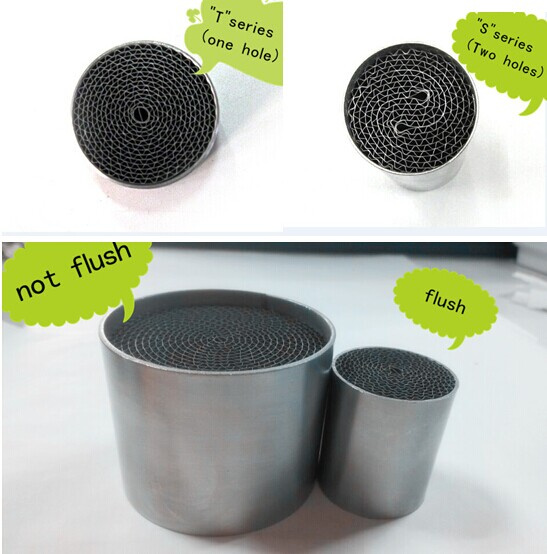

"T" series(one hole)/ "S" series (Two holes) |
| Certification | ISO9001 |
| MOQ | 1 Piece |
| Packaging | All product package can be customized based on your requirements |
| Payment terms | L/C, T/T, Money Gram, Western Union |
| Conversion Rate | CO≥96, HC≥95, NO≥90 |
| Coating losing rate | ≤3 |
| Scope | Apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Advantage | Low initiation temperature |
| Low pressure drop |
| High mechanical strength |
| Excellent thermal and coking resistance |
| Reliable braze welding intensity |
| Durable heat-resisting impact performance |
| Perfect catalyst coating binding force |
| Good anti-shock |
| Service life | Above 120, 000 KM |
| Usage | For exhaust system of general engine, off-road engine(gasoline engine and diesel engine), like garden machinery: Gasoline Chain Saw, Brush Cutter, Hedge Trimmer, Earth-Auger, |
| Price | The price is different in different specifications between USD1 and USD100. |
Why metallic? Why metallic?
A metal-based monolith substrates offers many advantages in comparison with a ceramic one, for instance: |
| Shorter light off time |
| Less risk of overheating |
| Less back pressure |
| Larger effective area |
| Greater catalytic capacity |
| Smaller and more flexible design |
| Thinner walls |
| Higher mechanical strength |
| Better resistance to thermal shock |

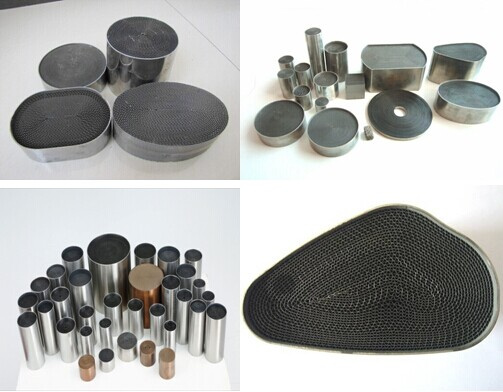

Specifications: Honeycomb Metallic Substrate of catalytic converterWe are able to supply metallic substrate with different design and specifications, which works as a most important part of car emission system. Cooperate with lots of customers both at home and abroad, they are satisfied with our products and we are confident to supply better quality and service. Here are the specifications of metallic substrate: Material| Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
Or Austenitic heat resistant stainless steel
(SUS304) |
Dimension and Cell Densitities| Dimensions, mm | Cell densities, CPSI | Foil thickness, mm |
| Round shape with diameter more than 10mm, length up to 800mm | 50, 100, 200, 250, 300, 400, 500, 600, 800, 1000, | 0.03, 0.04, 0.05, 0.06, 0.08, 0.10 |
| Oval shape |
| Others (Rectangle etc. ) |
| Mantle, mm | Matrix, mm | Density, CPSI | Material of mantle | Material of Matrix |
| Round Metallic Substrate |
|
|
|
|
| 30X22 | 28X20 | 100/200/300/400 | 441 | FeCrAl |
| 35X20 | 33X20 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø35 X 70/100/130 | Ø33 X 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø42 X 70/100/130 | Ø40 X 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø45 X 70/100/130 | Ø43 X 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø63.5 X 85/100/130 | Ø60.5 X 74.5/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø73 X 70/100/130 L | Ø70 X 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø93 X 70/100/130 | Ø90 X 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø420 X 100/130 | Ø416 X 90/120 | 300/400 | 444/441 | FeCrAl |
| Ø100.3 X 100/130 | Ø98.3 X 90/120 | 600 | 444/441 | FeCrAl |
| Oval Metallic Substrate |
|
|
|
|
| 123X63X 85 | 120X60 X 75 | 200/300 | 304/441 | FeCrAl |
| 123X63)X 100 | 120X60 X 90 | 200/300 | 304/441 | FeCrAl |
| 78.5X52X104 | 76.5X50X90 | 200/300 | 304/441 | FeCrAl |
Mark: We can supply Metallic Substrate coated with noble metals of PT, Pd and Rh. We also supply Metallic Substrate without noble. More information you may interested:
WISDOM Technologies is a founder and leader in Research and development, manufacturing of metallic substrate in China. More than 9 years of experience and constant further developments ensure that our products are of the highest quality and always competitive. We can customize according to specification metal honeycomb from you.
Our product lines include honeycomb seal for turbine machines, such as aero engines, steam turbines, gas turbines and industrial turbo machines, metallic honeycomb products including aerospace quality honeycomb core materials, honeycomb flow straightened and honeycomb rolls for nonwoven, products and metallic catalytic converter for automobile, Infrared Gas Stove, etc.
Quality Assurance. According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality. Manages to make sure the products keep updated, and be well received by users.
Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and corrugated machine, foil wash machine, etc.
Principle. "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.
Welcome. We warmly welcome friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.

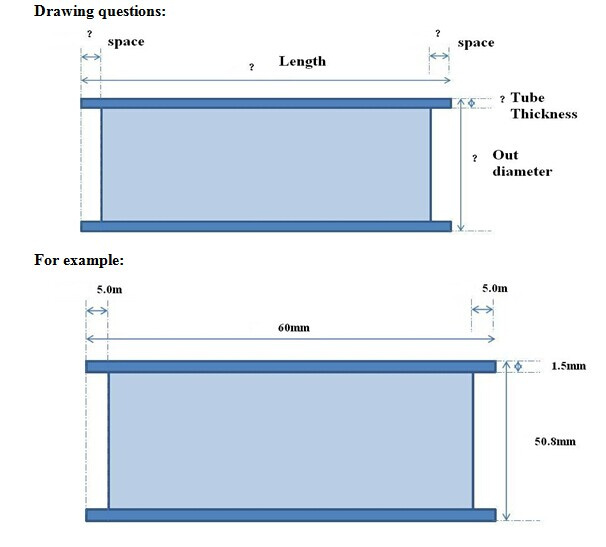

If you are interested in our products, please see the following information before sending inquiry, please fill out the specification of the products you need in the attached form in order to make both of us understand each other in shortest time. We will quote the most reasonable price.
Do you want to use for car or motorcycle?
Do you want to use for Gasoline vehicle or diesel motor?
Does your side require flush or not flush on the each side?

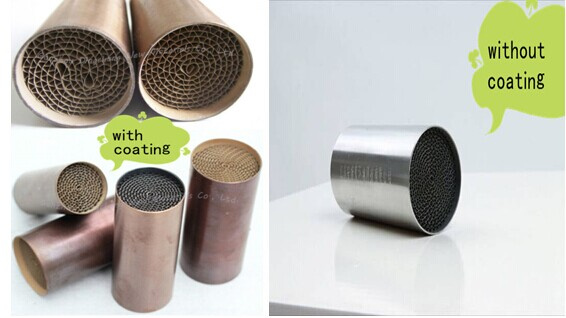

Do you need coating or not? What's your coating requirement?
Also need to confirm the density of holes (cpsi).
Common CPSI: 50, 100, 200, 300, 400, 500, 600, 800, 1000We can produce according to your sizes, no problem.
| No. | Diameter(mm) | Length(mm) | CPSI | Flush | Emission standard | Coating | Used for
(Gasoline/ diesel) | Quantity |
| 1 |
|
|
|
|
|
|
|
|
| 2 |
|
|
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
|
|
