Prod Model: |
VKBA1379 VKBA1383 |
Type: |
Wheel Hub Bearing |
Material: |
Chrome Steel |
Tolerance: |
P5 |
Certification: |
VDA6.1 |
Clearance: |
C3 |
ABS: |
With ABS |
Application: |
All |
Product Description

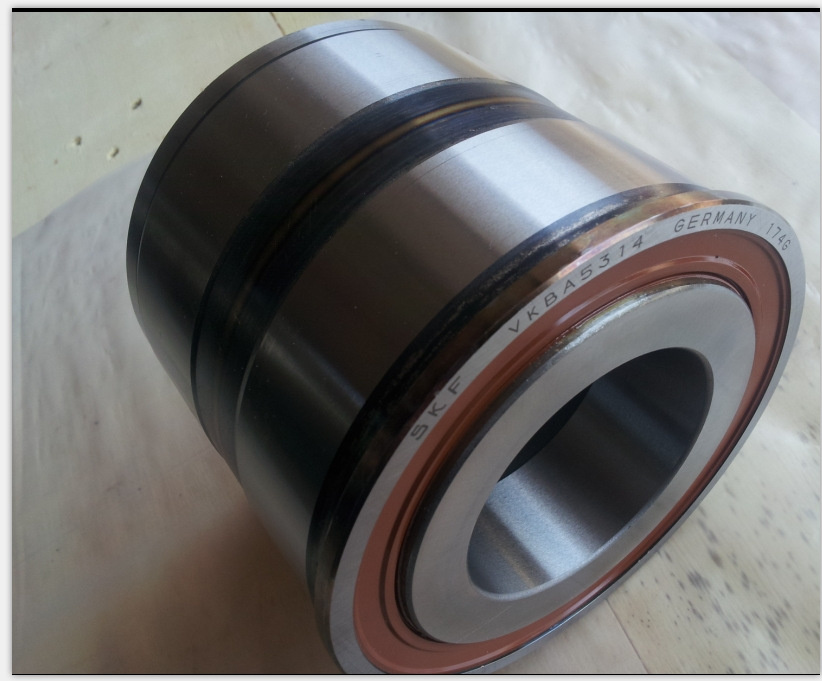

Auto wheel hub bearing:
1. Material: Bearing steel or chrome steel
2. Features:
A. auto wheel hub bearings are adopted with international superior raw material and high-class grease from USA Shell grease.
B. The series auto wheel hub bearings are in the nature of frame structure, light weight, large rated burden, strong resistant capability, thermo stability, good dustproof performance and etc.
C. Auto wheel hub bearing can be endured bidirectional axial load and major radial load and sealed bearings are unnecessary to add lubricant additives upon assembly.
3. Application: Auto wheel bearing are mainly used on Ford, Chrysler, Benz, BMW, Audi, FIAT, Seat, Isuzu, Polo, Renault, Peugeot, Toyota, Nissan, Santana and etc.
4. Size: We principally provides automotive wheel hub bearings for open formula, single or double shield from 25mm to 43mm on inner diameter.

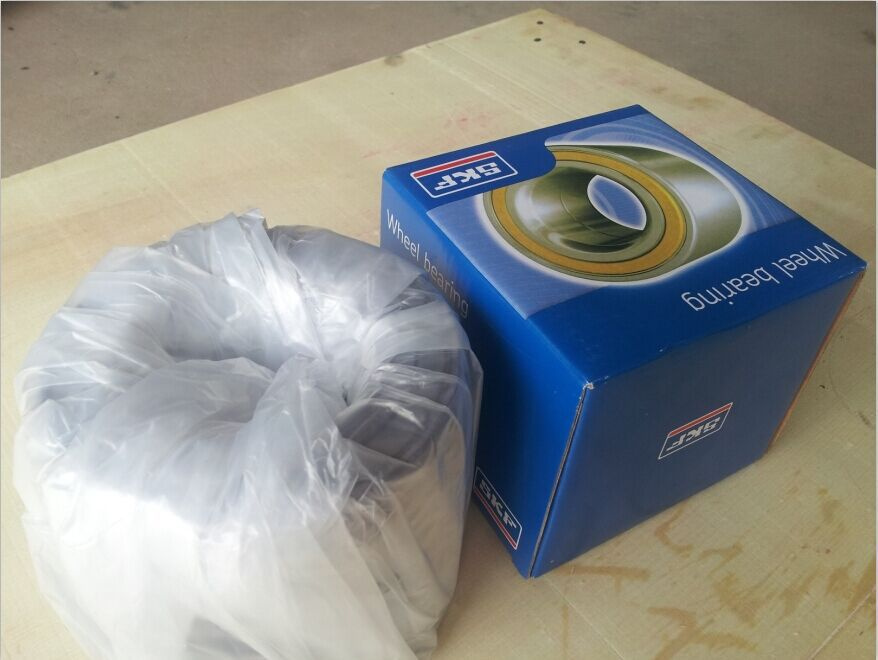

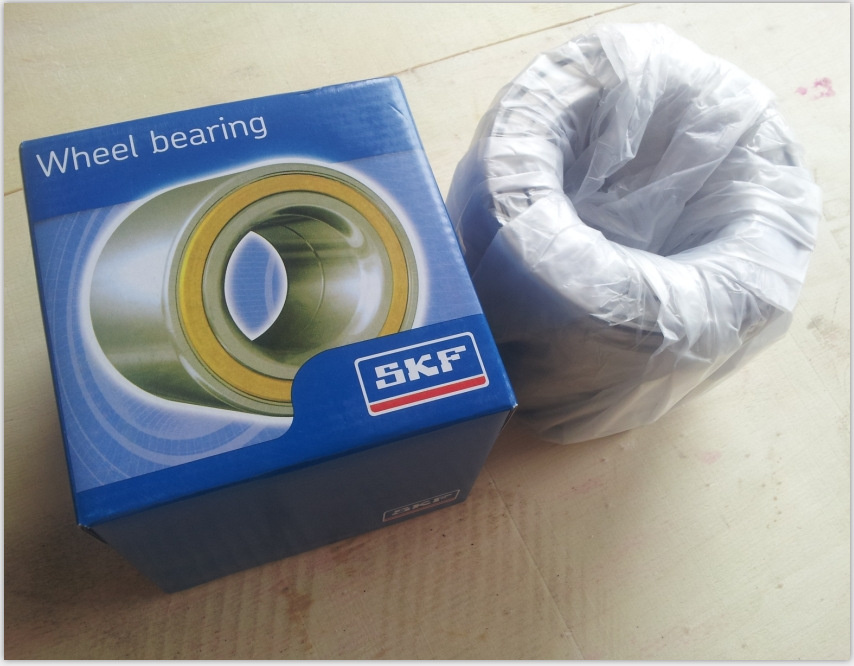

5. Packing: Carton and pallet
Wheel Hub Bearings |
Bearing N0. | Dimensions(mm) | Net Weight (Kg) |
Seal |
Use in automotive | | |
IKC Bearing | | | | d | D | B | C | | |
DAC124000183 | | C-00187 | | 12 | 40 | 18.3 | 18.3 | 0.11 | D | | | |
DAC20420030/29 | 565592 | 56592 J22 | | 20 | 42 | 30 | 29 | 0.18 | C | Mercedes Benz | | |
DAC205000206 | 156704 320104 | | | 50 | 20.6 | 20.6 | 0.17 | D | Fiat ,Seat | | |
DAC255200206 | | 617546A | | 25 | 52 | 20.6 | 20.6 | 0.19 | A | Fiat,Seat, POLEA VENTILADOR 124 | | |
c | 546467/576467 | BT2B445539AA VKBA869 | | 37 | 37 | 0.31 | C | Renault,Peugeot,Citroen TRAS.RENAULT9, | IR2220 | |
DAC25520040 | | | | 40 | 40 | 0.35 | C | POLO | | |
DAC25520042 | | | 25BWD01 | 42 | 42 | 0.36 | C | ISUZU | | |
DAC25520043 | | | | 43 | 43 | 0.36 | C | Renault,Peugeot,Citroen | | |
DAC25520045/43 | | | | 45 | 43 | 0.35 | C | | | |
DAC25550043 | | | | 55 | 43 | 43 | 0.41 | C | Renault | | |
DAC25550045 | | | | 45 | 45 | 0.46 | C | | | |
DAC255600206/29 | | BA2B633280 | | 56 | 20.6 | 29 | 0.28 | A | Fiat | | |
DAC25560032 | 445979 | BAH5000 | | 32 | 32 | 0.34 | E | Citroen | IR8520 | |
DAC25600029/206 | | BA2B633272 | | 60 | 29 | 20.6 | 0.33 | A | Fiat | | |
DAC25600045 | | | | 60 | 45 | 45 | | | Peugeot | | |
DAC25620028/17 | | | | 62 | 28 | 17 | 0.19 | D | | | |
DAC25620048 | | | | 62 | 48 | 48 | | | | | |
DAC25720043 | | | | 72 | 43 | 43 | 0.88 | C | | | |
DAC27520045/43 | 801437 | | 27KWD02 | 27 | 52 | 45 | 43 | 0.35 | C | Nissan | | |
DAC27520050 | | | | 50 | 50 | 0.38 | C | | | |
DAC27600050 | | FW120 | 27BWD01J | 60 | 50 | 50 | 0.56 | C | Nissan | | |
DAC28580042 | 576447 | | 28BWD03ACA51 | 28 | 58 | 42 | 42 | 0.47 | C | | | |
DAC28590038/28 | | | | 59 | 38 | 28 | 0.4 | | | | |
DAC28610042 | | VKBA1346 | 28BWD01ACA60 | 61 | 42 | 42 | 0.56 | D | Toyota, COROLLAGTIAE921.6*16V87 | | 513031 |
DAC29530037 | 801023AB | VKBA3531 BTH1206AA | | 29 | 61 | 37 | 37 | 0.35 | C | | | |
DAC30550026 | | | 30BWD08 | 30 | 55 | 26 | 26 | 0.32 | A | | | |
DAC30550032 | | | | 55 | 32 | 32 | | | dune buggy ZZ | | |
DAC30580042 | | VKBA1349 | 30KWD01AG3 | 58 | 42 | 42 | 0.4 | C | | | 513055 |
DAC30600037 | 545312A 529891 AB 522372 | BAHB63313CA | | 60 | 37 | 37 | 0.42 | C | Fiat,Lada,lancia,seat,Volvo | IR8040 | 513116 |
DAC30600337 | 529891AB 545312 581736 | BA2B633313C 418780 405956A 434201B VKBA1307 | 30BWD07 | 60.03 | 37 | 37 | 0.42 | C | Fiat131-147,Lada,lancia,seat, Volvo | | |
DAC30600043/37 | | | | 60 | 43 | 37 | | E | | | |
DAC30620038 | | | 30BWD10 | 62 | 38 | 38 | 0.52 | | Dune buggy | | |
DAC30630042 | | VKBA1344 | 30BWD01A 30BWD01AC70 | 63 | 42 | 42 | 0.57 | A | TOYOTA, CAMRY-91,CARINALL 83-92,CEL | | |
DAC30630342 | | | | 63.03 | 42 | 42 | 0.56 | A | TOYOTA CAMRY-91,CARINALL 83-92,CEL | | |
DAC30640042 | | | 30BWD03ACA78 | 64 | 42 | 42 | 0.49 | C | TOYOTA | | |
DAC30670024 | | 361971 | | 67 | 24 | 24 | 0.34 | C | Ford Taunus | | |
DAC30680045 | | | 30BWD04CA19 | 68 | 45 | 45 | 0.73 | E | | | 510031 |
DAC32700038 | | | | 32 | 70 | 38 | 38 | 0.62 | E | | | |
DAC32720034 | | | | 72 | 34 | 34 | 0.6 | B | | | |
DAC32720045 | | | 32BWD06 | 72 | 45 | 45 | 0.6 | D | TOYOTA | | 513150 |
DAC32720345 | | | 32BWD05 P5A | 72.03 | 45 | 45 | 0.6 | D | | | |
DAC32730054 | DAC3273W | | | 73 | 54 | 54 | 0.98 | B | | | |
DAC34620037 | 531910 561447 | BAHB311316B 309724 | | 34 | 62 | 37 | 37 | 0.41 | C | Audi,Volkswagen Chrysler ,POLO/90 | | |
DAC34640034 | | VKBA1382 | 34BWD03ACA78 | 64 | 34 | 34 | 0.43 | D | Honda JAZZAA1.2 B4-86 | | |
DAC34640037 | 532066DE 540466B 805231 | 605124 VKBA1306 BA2B309726 309726DA | 34BWD04BCA70 34BWD11 | 64 | 37 | 37 | 0.47 | B | Lada,Opel,Volkswagen,Bedford Daewoo | IR8041 | B-35 |
DAC34660037 | 559529 580400CA 805464 | 636114A 479399 BAHB636114A | 34BWD10B | 34 | 66 | 37 | 37 | 0.5 | C | Opel,Vauxhall,Accord | IR8622 | |
DAC34670037 | | | | 67 | 37 | 37 | 0.44 | C | | | |
DAC34680037 | | | 34BWD08A | 68 | 38 | 37 | 0.55 | | | | 510033/513182 |
