| Prod Model: |
WM1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
Electric |
| Certification: |
CB |
| Material: |
Metal |
| Condition: |
New |
Product Description

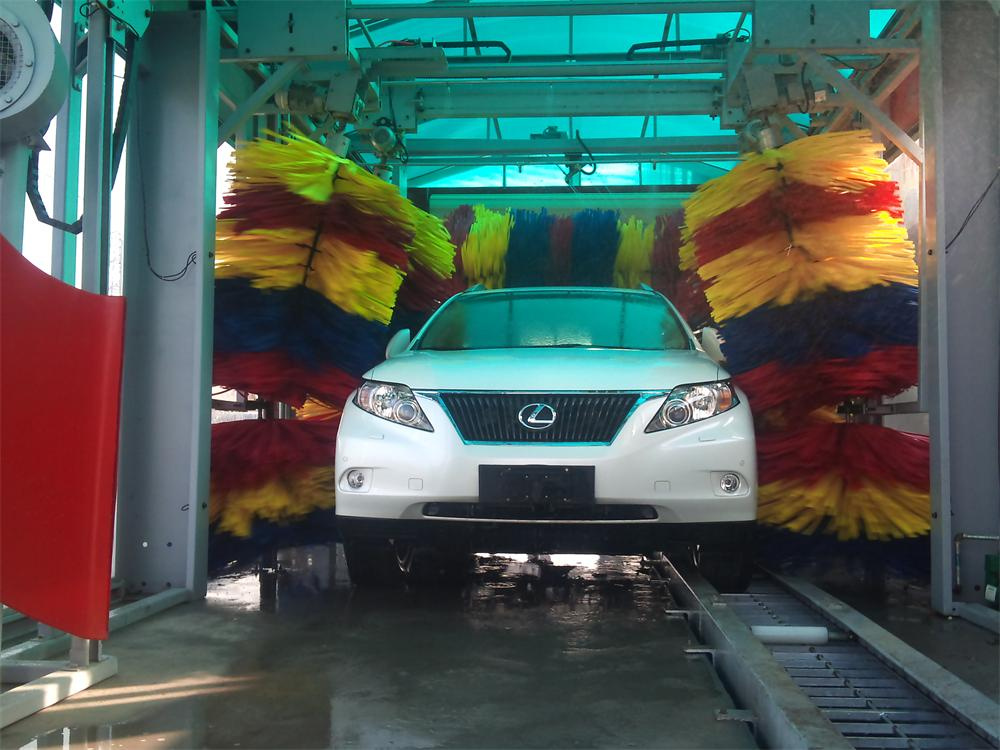

Professional cleaning cars, all kinds of mini-vans;
Without any direct touching to the vehicle;
Precise preparation ratio for agent
High-pressure rotating nozzle which is specially imported from german
Stainless steel plate;
Profiling top spray system;
Colorful tri-color foam wax;
Non-blocking air-dry system;
| Item | CD05L-2A | Item | CD05L-2A |
| Machine size(Unit:L×W×Hmm) | 2350×3800×3000 | Power switch | Meanwell Taiwan |
| Track length(Unit:mm) | 10000 | leakage protector | CHNT |
| Power supply | 380v 50hz | Motor | Huangyan IP55 |
| Total power | 22KW | Water pump | HUYI Shanghai |
| Washing size(Unit:L×W×Hmm) | 5250×2300×2100 | Bottom spraying | Include |
| Pump power | 1.5kw | Foaming | Include |
| Dryer power | 17kw | Drying system | Include |
| Water consumption | 150L | Waxing | Include |
| Power consumption | 1.5kwh | Intelligent induction body distance | Include |
| Washing speed | 200seconds | Fault self-inspection | Include |
| PLC | Omron | Emergency system | Include |
| Frequency changer | ADT AD3000 | Touch screen | Optional |
| photoelectric switch | Pubang Shanghai | high pressure washing | Optional |
| Approach switch | Pubang Shanghai | Brush quantity | 1 top brush,2 big vertical brushes,2 small vertical brushes |
| Relay | Omron | bottom spraying washing pressure | 40kg |
| Contactor | CHNT | Adaptable car | Sedan,business car,SUV,Minibus |
Name | automatic car wash machine | automatic car wash machine | automatic car wash machine |
| Type | tunnel car wash equipment | tunnel car wash equipment | tunnel car wash equipment |
| Model | CR-7SF
with 7 brushes and
4 smart dryers | CR-9SF
with 9 brushes and
4 smart dryers | CR-12SF
with 12 brushes and
4 smart dryers |
Machine Size
(L*W*H ) | 12000*4000*3200(mm) | 13000*4000*3200(mm) | 15000*4000*3200(mm) |
| Installation Size | 17000*4000*3200(mm) | 18000*4000*3200(mm) | 20000*4000*3200(mm) |
| Adaptable Vehicle | Sedan,SUV,MPV,Minibus | Sedan,SUV,MPV,Minibus | Sedan,SUV,MPV,Minibus |
| Power Supply | 380V OR AS LOCAL | 380V OR AS LOCAL | 380V OR AS LOCAL |
| Total Power | 25KW | 25KW | 26KW |
| Washing Speed | 60S/vehicle | 60S/vehicle | 60S/vehicle |
| Power Consumption | 0.6KWH/vehicle | 0.6KWH/vehicle | 0.6KWH/vehicle |
| Water Consumption | 80L-100L/vehicle | 80L-100L/vehicle | 80L-100L/vehicle |
| Brush Quantity | 1 top brush
4 big vertical brushes
2 small vertical brushes | 1 top brush
4 big vertical brushes
4 small vertical brushes | 1 top brush
4 big vertical brushes
4 small vertical brushes
3 polish brushes |
| Operation System | PLC/Touch Screen | PLC/Touch Screen | PLC/Touch Screen |
| Drying System | 4 smart dryers
moving with shape of vehicle | 4 smart dryers
moving with shape of vehicle | 4 smart dryers
moving with shape of vehicle |
| Washing System | Bottom Spraying
Foam Washing
Auto Waxing
Auto Coating | Bottom Spraying
Foam Washing
Auto Waxing
Auto Coating | Bottom Spraying
Foam Washing
Auto Waxing
Auto Coating |
| Water Reclaim System | available | available | available |
| Delivery Time | 20-25 Days | 20-25 Days | 20-25 Days |
NOTICE
WARRANTY & AFTER SERVICE
1. Payment term :
30% paid for deposit by T/T before production arranged , the balance to be paid before shipment.
2.Delivery time :
15 to 20 days for automatic car wash machine (BR-5v ,BR-5vf , BR-7v , BR-7vf)
20 to 25 days for automatic tunnel car wash machine (BR-7sf , BR-9sf , BR-12sf)
3. Maintenance :
We will give you the manual books for daily operation and maintain
We have unique maintenance system:
First , each machine is provided with fault diagnosissystem . when breakdown happens , the touch screen will show you where is breakdown , and also tell you how to fix it.
Second , IF you can not fix it by yourself , we get B plan---intelligent operation system. That system will help you to stop failure parts of machine , let other parts of machine still normal operate. E.G. you get one automatic car wash machine with 5 brushes , one of 5 brushes do not work , you do not need to stop the whole system like other manufacturers do .
Using BERRY intelligent operation system , you just only need stop the wrong brush , and the other brushes will be working normally . So you will not waste time to fix the machine because of tiny problem . You can continue to do business .
4. Installation :
We arrange our technician to your place for assembling and training , just
round air ticket and accommodation will be paid by your side .
5. Warranty:
One year warranty after the normal operation , life time technical ,maintenance and parts support.
6. Parts:
We will leave some spare parts such as sensors,motors and so on to you for your replacement . If you need the list , feel free to let me know!
if you have any queations ,please send the Inquiry or chat with me
