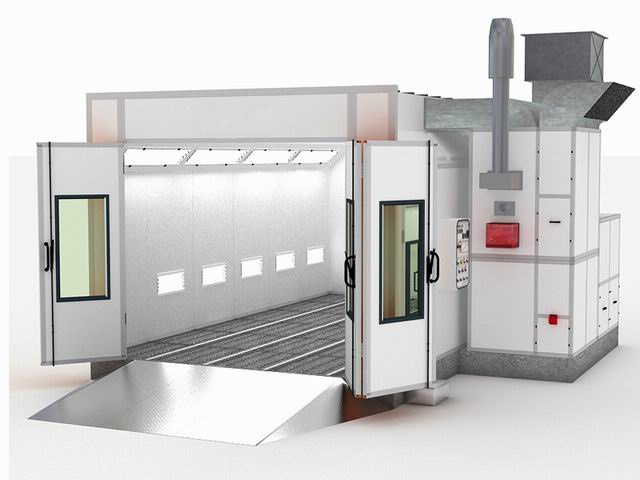

Auto Spray Booth
| Price: |
US $ 5600-11800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Detailed Product Description
Car painting, Automobile Baking, Portable Auto Spray Booths
1.Italian Riello RG5S diesel burner
2.SUS304 Stainless steel heat exchanger
3.Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: white, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales servicePackaging & DeliveryPackaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after depositSpray Booth Specifications1.Germany Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved | Inside Dimension | 6900X3900X2600MM(LXWXH) |
| Outside Dimension | 7000X5600X3250MM(LXWXH) |

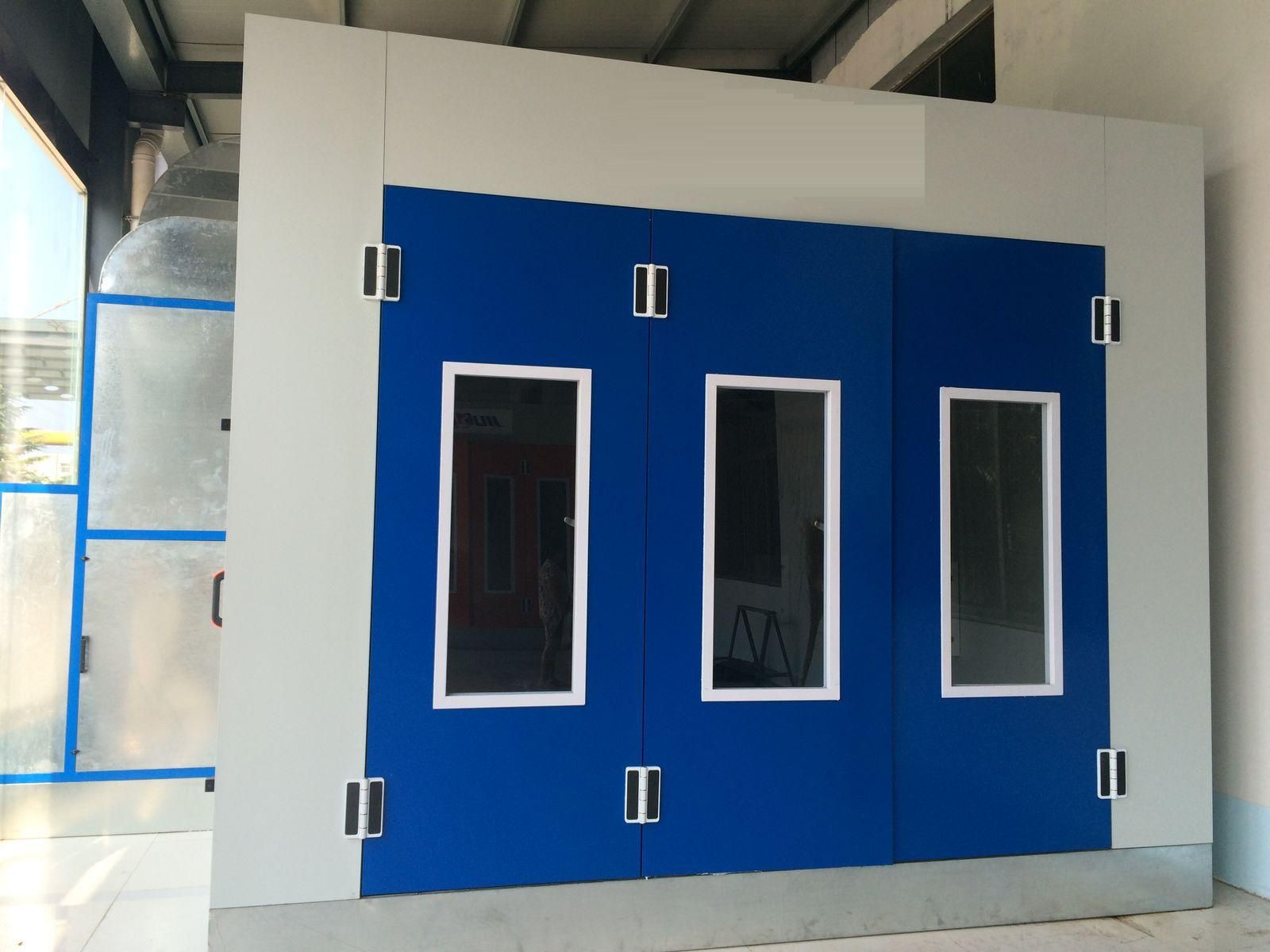

| Main door | 3-fold, 2700X2500MM(WXH), aluminium alloy door frame |
| Personal door | 1-fold, 650X1800MM(WXH), with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel double
skinned , tongue and groove construction, thickness: 50mm |
Basement and floor:Adjustable height bolt, complete steel assemble. 5rows of
grids. 3pcs of ramps, each size: 800X1800MM(WXL) and
with two inclined ramps |
| Lighting System | Ceiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X10units=20PCsX
30W Philip tube, horizontal installation, with electronic ballasts, outside open the
light box, according Australia standard design |
| Generator setting type | Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel |
| Ventilation System | Intake fan:1Pc double-intake centrifugal fan, , 7.5KW, air capacity:25000m3/h |
| Exhaust fan:1Pc double-intake centrifugal fan, 7.5KW, air capacity:25000m3/h |
| Heating system | Italian RielloRG5S diesel burner, 260000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc electric damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate |
| Filter system | Prefilter, high efficiency filter(ceiling filter),
floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure
alarm, limited-temperature device |
| Total power | 18KW |

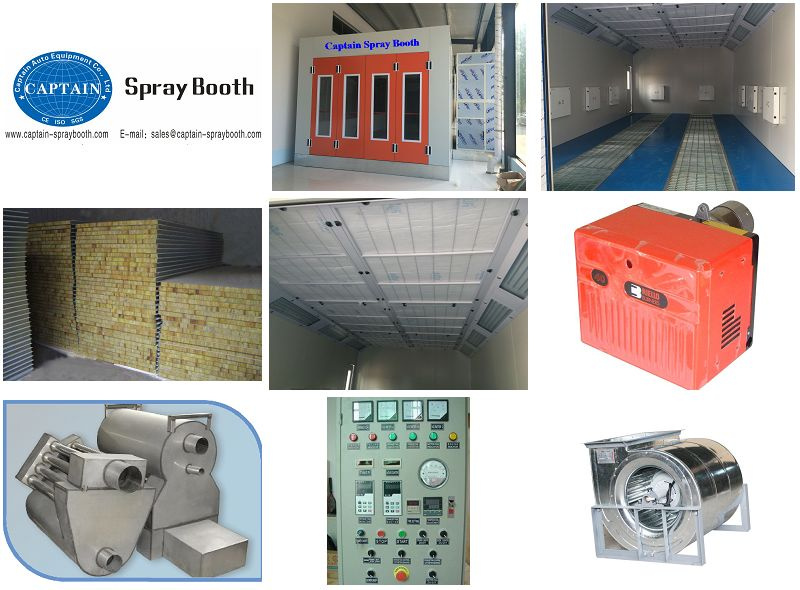

Pictures to show the parts of our spray booth

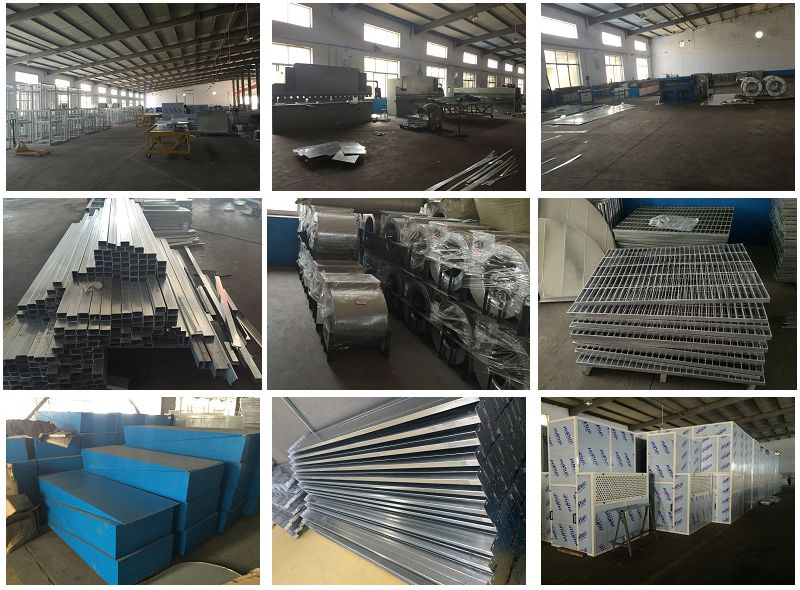

pictures to show our standard workshop and enough stock to ensure fast delivery
Sincerely hope we can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
| Prod Model: |
diesel heating |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900X3900X2600mm(Lxwxh) |
| Outside Dimension: |
7000X5600X3250mm(Lxwxh) |
| Main Door: |
3-Fold, 2700X2500mm(Wxh) |
| Personal Door: |
1-Fold, 650X1800mm(Wxh) |
| Wall Panel: |
50mm EPS with 0.5mm Steel |
| Basement And Floor: |
Full Grilles |
| Lighting System: |
24PCS Ceiling Lights, 20PCS Side Lights |
| Intake Fan: |
1X7.5kw Centrifugal Fan |
| Exhaust Fan: |
1X7.5kw Centrifugal Fan |
| Heating System: |
Italian Riello Rg5s Diesel Burner |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
