Auto Spray Booth Painting Booth with Easy Working

Name: Auto Spray Booth Painting Booth with Easy Working
Brand: ibuyautoparts.com
SKU: 630894025
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 2500-6850/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

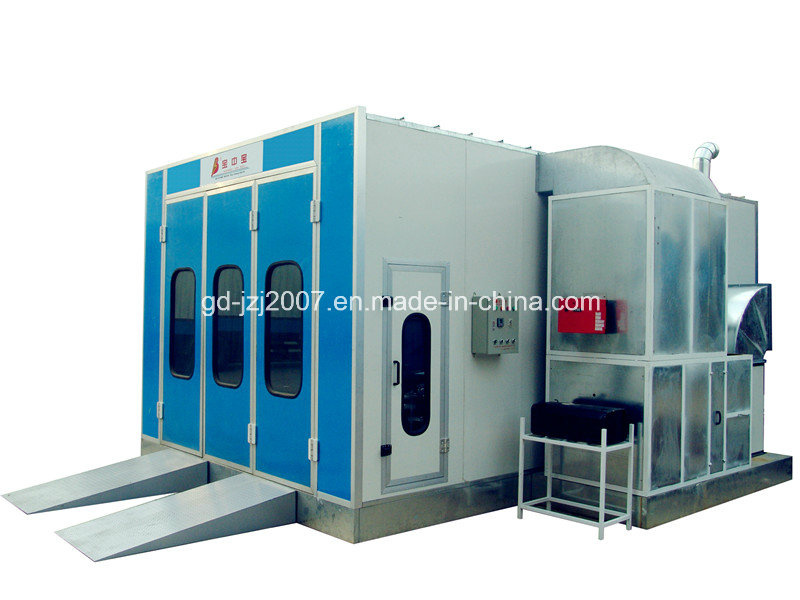

Spray booth BZB-8100 is our most economical spray booth, which apeals to our customers with its good quality and low price.

Outside Size:(mm)	7000 × 5450 × 3330	Front Door:(mm)	3000(w) × 2600(h)
Inside Size:(mm)	6900 × 3900 × 2650	Total Power:(kw)	8

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Galvanized Steel Roof Panel, Tongue & Groove Style, Compound Construction, Anti-flame and Heat-Insulation


	Basement	Galvanized Steel Sheet Construction, Two Rows Grid & Three Embossed Plate, Inside Ramps

	Inlet Fan	Volume: 10000m³ /h	Power: 3kw	Quantity: 2 sets
	Air Volume: 20000m³ /h; Air Speed: 0.3m /s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%. TSP≤1.4mg/m³



Heating System	Burner	Baltur Brand, BT14, 140000Kcal/h, The Heating Time 8-10min


	Heat Energy Converter	Stainless Steel, Argon Arc Welding. The Heat Exchange Rate 85%


	Max Temp:80 °C , Fuel Consumption: 5 -7kg /vehicle,Manual Damp

Light System	Ceiling Light: 24 pcs 36w Philips Lamp; 800 Lux

Electric Controlling System	Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Some pictures about spray booth:

Prod Model:	BZB-8100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Function:	Painting and Baking
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	BZB

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
