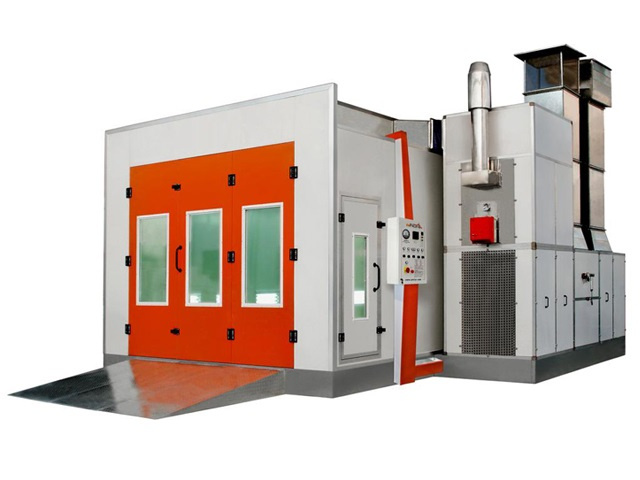

Auto Spray Booth/Paint Chamber
| Price: |
US $ 6868-11800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ce standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
7000X4000X2600mm(Lxwxh) |
| Outside Dimension: |
7100X5550X3250mm(Lxwxh) |
| Main Door: |
3-Fold, 2700X2500mm(Wxh) |
| Personal Door: |
1-Fold, 650X1800mm(Wxh) |
| Wall Panel: |
50mm Rockwool Panel with 0.6mm Steel |
| Basement And Floor: |
2 Rows Grilles, 3 Rows Diamond Plate |
| Lighting System: |
24PCS Ceiling Lights, 20PCS Side Lights |
| Intake Fan: |
1X7.5kw Turbo Fan |
| Exhaust Fan: |
1X7.5kw Turbo Fan |
| Heating System: |
Italian Riellorg5s Diesel Burner |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Product Description
Detailed Product DescriptionTurbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: white, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales servicePackaging & DeliveryPackaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Spray Booth Specifications1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
| Inside Dimension | 7000X4000X2600MM(LXWXH) |
| Outside Dimension | 7100X5550X3250MM(LXWXH) |
| Main door | 3-fold, 2700X2500MM(WXH) with heat insulation glass window, handmade door
without aluminum alloy door frame |
| Personal door | 1-fold, 650X1800MM(WXH) with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :Rock Wool material, tongue and groove interlock construction,
thickness: 50mm, 0.6mm steel plate. |
Basement and floor:Adjustable height bolt, complete steel assemble, 3 rows of
grids, 2 rows of indented plates, galvanized. 3pcs of galvanized ramps, loading capacity of galvanized grating is 750 kg/wheel |
| Lighting System | Ceiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X10units=
20PcsX 30W Philip tube, horizontal installation, with electronic ballasts |
| Glass | All window and light cover by ovenproof toughened glass |
| Generator setting type | Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel |
| Ventilation System | Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive,
air capacity:25000m3/h |
Exhaust fan: 1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E , direct drive, air
capacity:25000m3/h, Air flow speed, +/- 0.25 m/s in an empty booth |
| Heating system | Italian RielloRG5S diesel burner, 260000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area,
high heat utilization, more than 90% heat exchanging rate |
| Filter system | Prefilter, high efficiency filte(ceiling filter),
floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop,
failure alarm, limited-temperature device, most of electrical spare
part is import, C.E standard |
| Total power | 18KW |

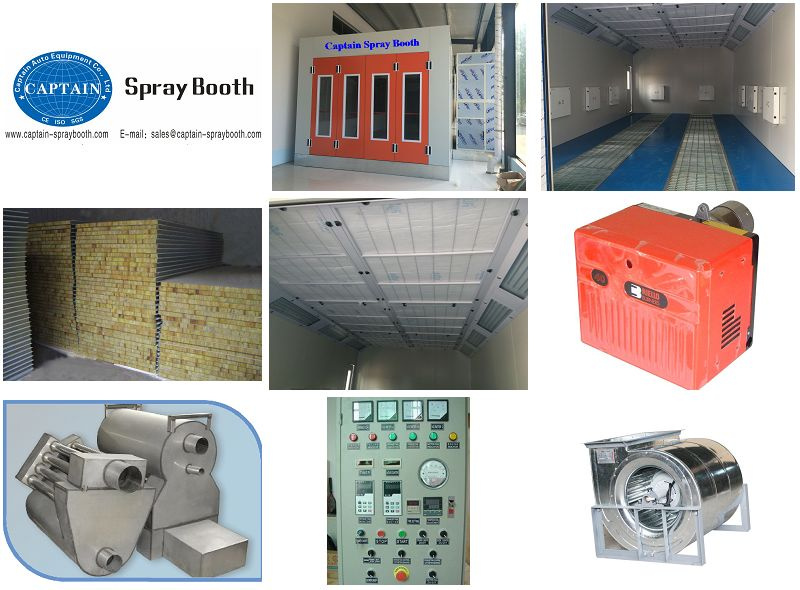

pictures to show details of our spray booth

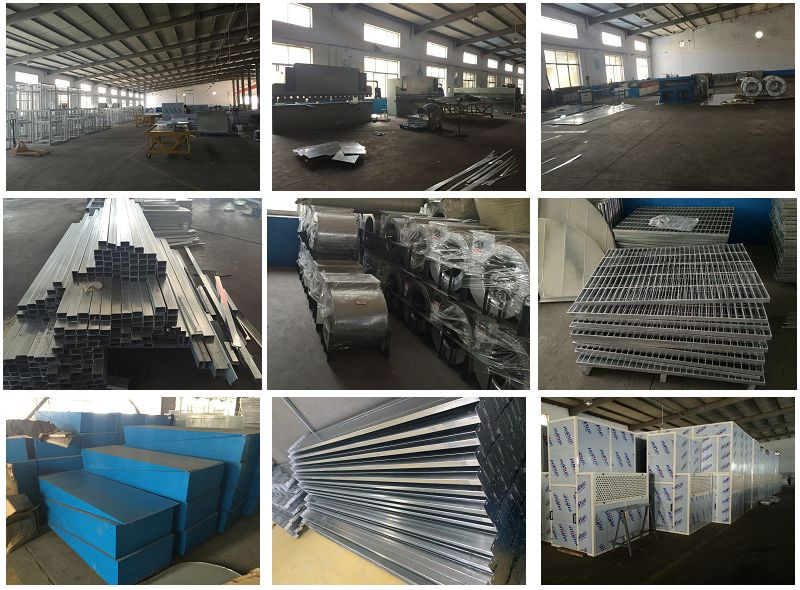

pictures to show our workshop and enough stock to ensure fast delivery
Sincerely hope we can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you.
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
