Auto Scissor Lift with Ce (SHL-Y-J-40DL)
| Price: |
US $ 2980-3599/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification1. Main platform lifting capacity 4000kg , second jack lifting capacity is 4000kg 2. Oil cylinder parts made by automatic CNC lathe ensure the excellent finish and concentricity. 3. Imported Oil Seal, valve and important hydraulic parts oil pipe explosion protective device. 4. Electric leakage protection overload protection 5. Shot blasting and high temperature baking powder coated surface finish self-lubricated bushings and bearings 6. Mechanical safety, double Hydraulic System pneumatic safety lock release system 7. Stable Hydraulic Balance System Optional second-level platform extension and infra-red electronic leveling sensor Technical parameter| Model | SHL-Y-J-40D | SHL-Y-J-55D | SHL-Y-J-65D |
| Lifting Capacity | 4000kg | 5500kg | 6500kg |
| Host Lifting Height | 1850mm | 1980mm | 1980mm |
| The Host Platform Length | 4300mm or 4500mm | 4800mm | 5200mm |
| The Host Platform Width | 625mm | 690mm | 690mm |
| Second Jack Lifting Height | 500mm | 500mm | 500mm |
| Second Jack Lifting Length | 1400mm | 1500-1800mm | 1600-1900mm |
| Second Jack Lifting Width | 570mm | 625mm | 625mm |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Power | 220V, 380V | 220V, 380V | 220V, 380V |
| Air Pressure | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa |

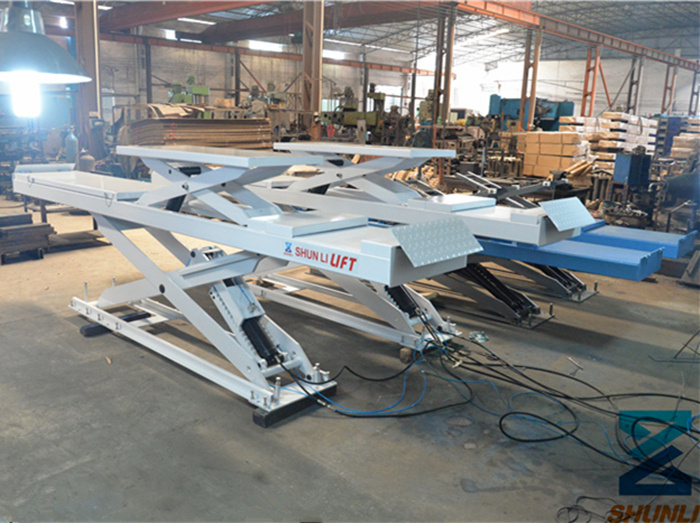

Product

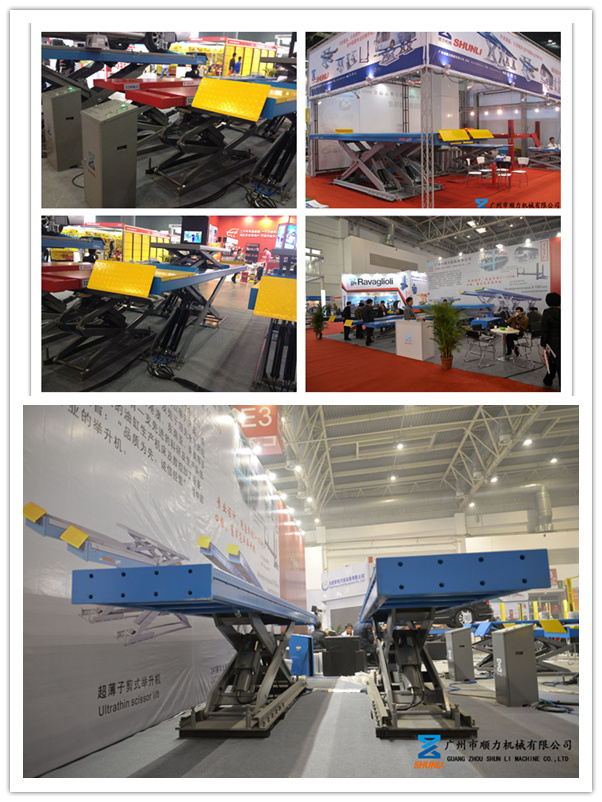

Exhibition Showing

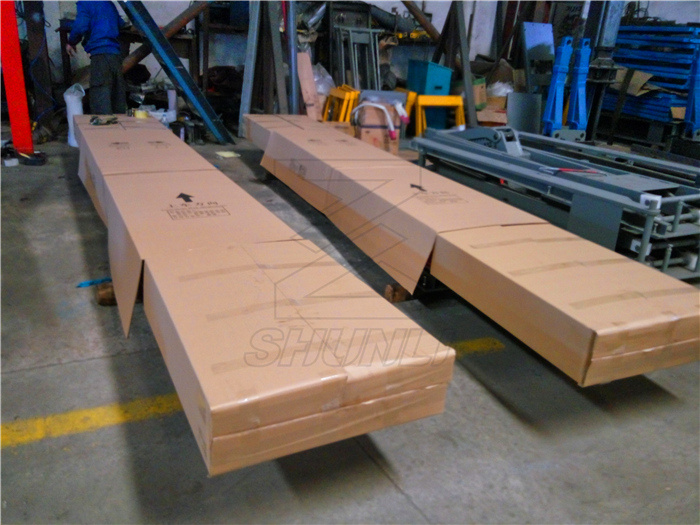

Package:Film cover first, carton package again, third use the film cover again. With belt fixed. It's stronger, not easy to scratch and broken. And easy for loading.
With customer in the showing room and factory

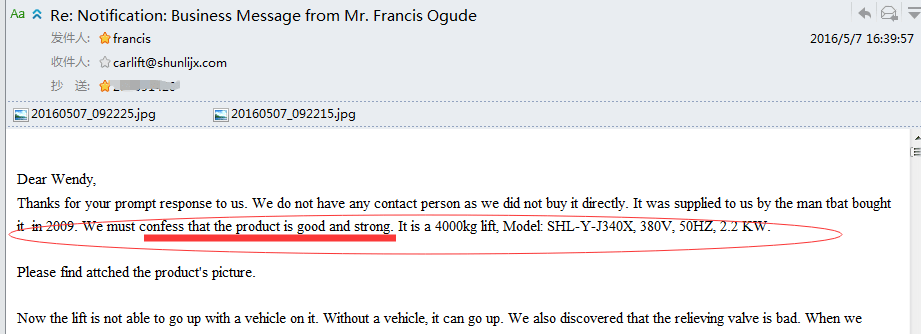

Customer's Feedback
Product advantage1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost o after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
| Prod Model: |
SHL-Y-J-40DL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1850mm |
| Main Lifting Capacity: |
4000kg |
| Second Lifting Capacity: |
4000kg |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Lifting Capacity: |
4000kg |
| Brand: |
Shunli |
