| Prod Model: |
SK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7050 * 5500 * 3500(L*W*H) |
| Inside Dimension: |
6900 * 4000 * 2800mm |
| Front Door(mm): |
3200*2600(W*H), 4 Folded |
| Service Door (mm): |
2000*650(W*H) |
| Wall Panel: |
75mm Rock-Wool Panel, 0.6 Steel |
| Basement: |
300mm Depth with Grids, 3 Rows Grilles |
| Inlet Fan(Turbo): |
1X7.5kw |
| Outlet Fan(Turbo): |
1X7.5kw |
| Heating System: |
Riello G20 Diesel Oil/Gas Burner |
| Lightening System: |
4X8units Ceiling, 4X12units Side |
| Certification: |
UL |
| Airflow Direction: |
Lateral Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Painting |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |

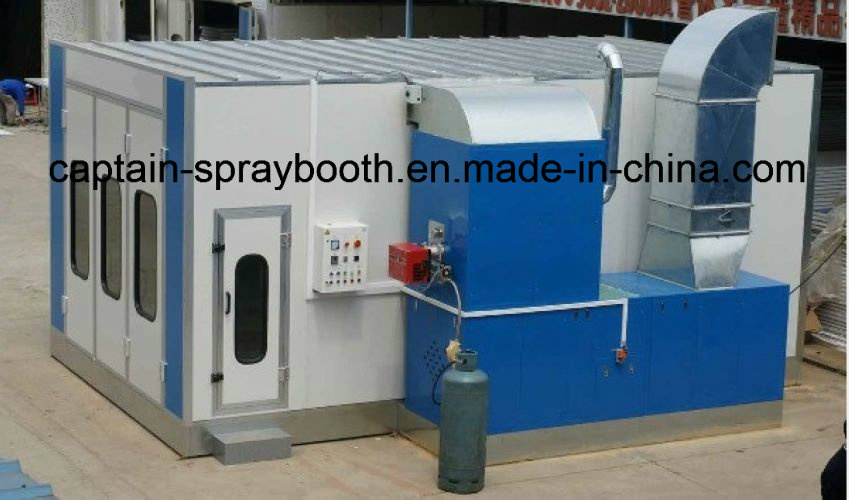

Product Description
Products Description
| Item | Detailed specification |
| Inside dimension | 6900×4000×2800 mm(L×W×H) |
| Outside dimension | 7050×5500×3500 mm(L×W×H) |
| Front door | Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. |
| Emergency door | 1 unit, 650×2000mm(W×H), color: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 2 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel with rock wool inside, color: white. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux |
| Generator cabinet | Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system | Inlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| | Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| | Water based paint drying system | 60 units ceiling nozzles with 3 sets of centrifugal fans for drying the Water Based Paint. |
| Heating system | RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. |
| | Spray to baking switch | One manual damper |
| | Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Galvanized steel |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge. |
| Total power | 22.5KW |
| UNIT PRICE (FOB QINGDAO) | |
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
