Auto Paint Booth for Car Painting in Car Garage Service Workshop

8500 BZB-8500 car paint booth
Cabin System Wallboard EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation

Basement Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.

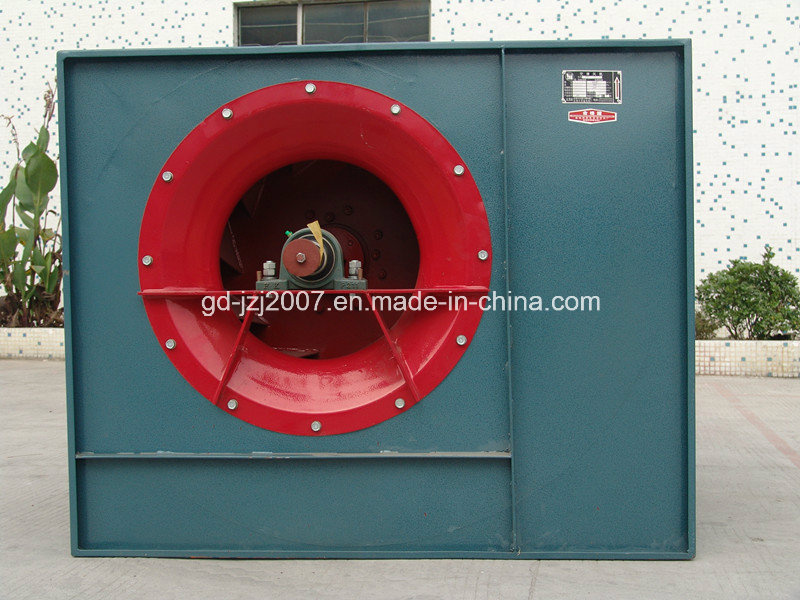

Air Circulation System Inhaling Ventilator Model: YDW 4.5L Exhaust Ventilator Model: YDW 5.6M

Blower Capacity: 14000m3/h Blower Capacity: 21000m3/h

Pressure: 800Pa Pressure: 800Pa

Rolling Speed: 940rpm Rolling Speed: 900rpm

Power: 4kw Power: 7.5kw

Quantity: 2 sets Quantity: 1set

Air Volume: 28000m3/h; Air Speed: 0.4m/s

Air Purification System Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP≤1.4mg/m3

Heating System Burner Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor

Heat Energy Converter Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%

Max Temp: 80, Heating Time: 4-5min(20-60), Fuel Consumption: 4-5kg/vehicle

Light System Ceiling Light: 32 PCS 36w Philips Lamp; Bottom Light: 16 PCS 36w Philips Lamp, 1000 Lux

Electric Controlling System Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Environmental System Multi-Layer Fiberglasss Filter

Certification:
