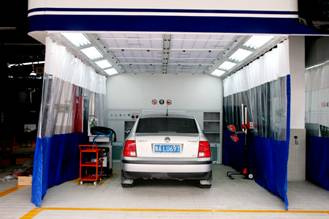

Model: YS-300-C
Inside dimention: 6300*3450*2700mmL*W*H
Any Size Requirements Can Be Met
With plenum, intake and exhaust air fan
A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts
D. Optional heat units are available for high production needs.
Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
| Outside Dimension | 7550× 3550× 3100mm(L× W× H) |
| Inside Dimension | 6300× 3450× 2700mm(L× W× H) |
| Plenum Dimension | 6300× 3450× 400mm(L× W× H) |
| Basement | 300mm galvanized steel basement, full grilles made by flat bar and round steel then galvanized. 2 ramps, external setting, 2000× 750mm(L× W), surface is painted. |
| Room Body | Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains; |
| Lighting System | Ceiling lights 8units× 4pcs=32pcs 36W, with electronic ballasts , 5.0mm clear tempered glass; |
| Generator Setting | Exhaust air from rear side; galvanized steel molding frame, white coated steel cover |
| Intake and Exhaust Air System | 5.5KW double intake centrifugal fan for intake air, 5.5KW double intake centrifugal fan for exhaust air, model YDW-4.5S, air capacity is 15500 m 3 /h, with manual damper for exhaust air |
| Heating System | RIELLO G10 oil burner, stainless steel heat exchanger. Max. heating productivity: 100000 Kcal/h. |
| Filter System | Pre-filter, high efficiency filter, exhaust fiberglass filter. |
| Roof Plates | Galvanized steel plates |
| Control System | Fan operation switch, lighting switch, temperature controller, emergency stop |
| Setting Style | Suspending steel hook from roof of building or steel column supporting |
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
