Inpro supply a range of miniature ball bearings and small bearings from stock. These chrome steel miniature bearings are available open, shielded or sealed with bore sizes as small as 3.00mm.
Miniature bearings are sometimes referred to as instrument bearings or micro bearings. We provide metric sizes for applications as varied as gyros, anemometers, miniature gearboxes, small motors and radio controlled models.
Our metric miniature ball bearings are supplied in GCR15 chrome steel and can withstand heavy radial loads and moderate thrust loads in both directions. Certain sizes can be supplied with the TW high-speed synthetic cage.

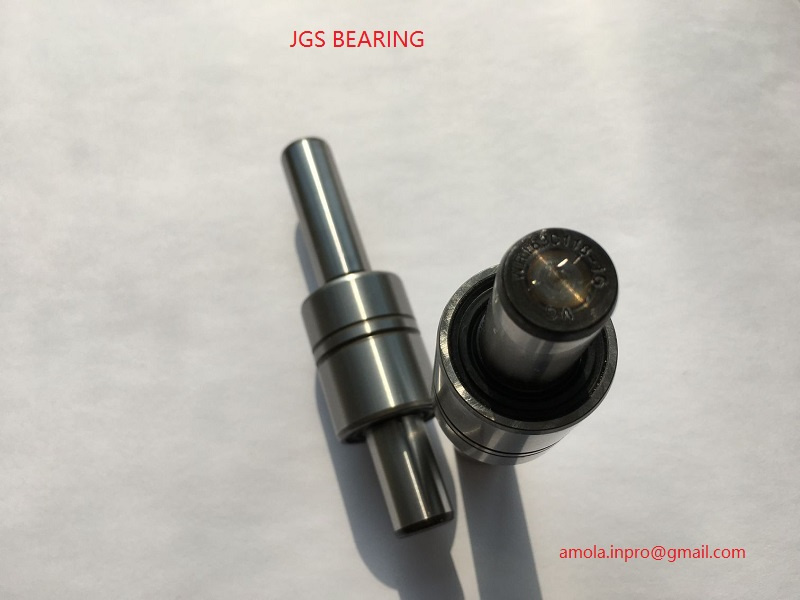

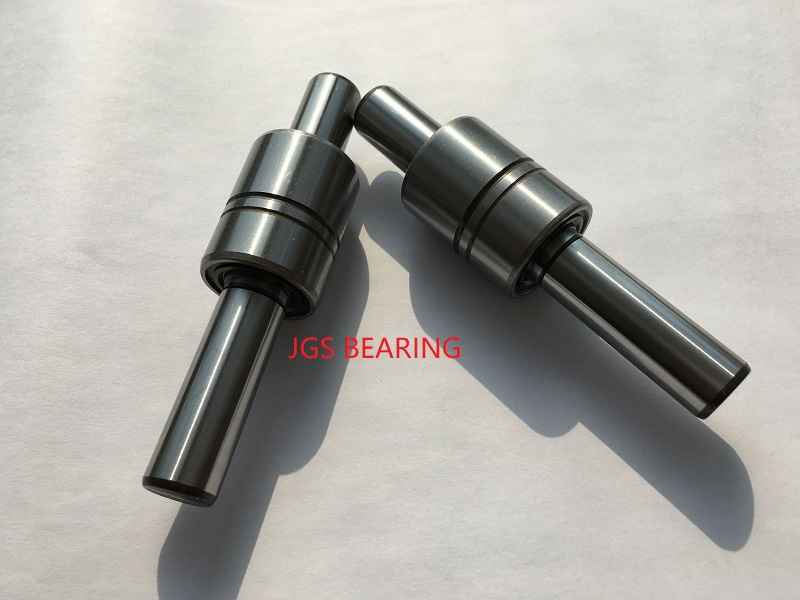

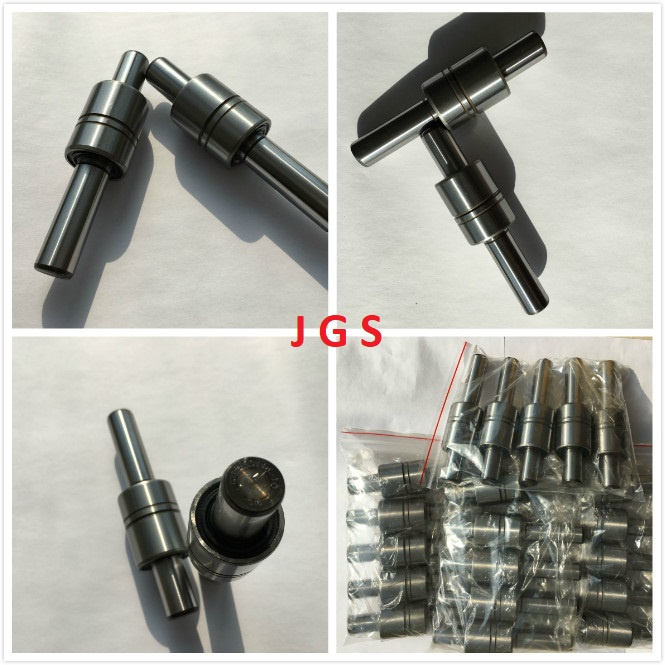

Water pump bearings are designed to support large axial loads but can also support moderate radial loads. They incorporate an improved internal design that enables it to operate at high speeds.
These bearings have self aligning characteristics. This is because the outer ring raceway is spherical and the center of the radius is located on the bearing axis.
| | 25.4 | 57.15 | 19.431 | 19.431 | 14.732 | 1.5 | 1.5 | 42.5 | 49 | 0.254 |
| HM86649/10 | 30.162 | 64.292 | 21.433 | 21.433 | 16.67 | 1.5 | 1.5 | 51 | 64.5 | 0.339 |
| HM86648A/10 | 30.995 | 64.292 | 21.433 | 21.433 | 16.67 | 1.5 | 1.5 | 51 | 64.5 | 0.347 |
| M88046/10 | 31.75 | 68.262 | 22.225 | 22.225 | 17.462 | 1.5 | 1.5 | 55.5 | 70.5 | 0.396 |
| M88048/10 | 33.338 | 68.262 | 22.225 | 22.225 | 17.462 | 0.8 | 1.5 | 55.5 | 70.5 | 0.382 |
| HM88630/10 | 25.4 | 72.233 | 25.4 | 25.4 | 19.842 | 0.8 | 2.3 | 63.5 | 83.5 | 0.57 |
| HM88638/10 | 32 | 72.233 | 25.4 | 25.4 | 19.842 | 3.3 | 2.3 | 63.5 | 83.5 | 0.513 |
| HM88649/10 | 34.925 | 72.233 | 25.4 | 25.4 | 19.842 | 2.3 | 2.3 | 63.5 | 83.5 | 0.483 |
| HM88648/10 | 35.715 | 72.233 | 25.4 | 25.4 | 19.842 | 3.5 | 2.3 | 63.5 | 83.5 | 0.473 |
| HM89443/10 | 33.338 | 76.2 | 29.37 | 28.575 | 23.02 | 0.8 | 3.3 | 78.5 | 106 | 0.654 |
| HM89444/10 | 33.338 | 76.2 | 29.37 | 28.575 | 23.02 | 3.8 | 0.8 | 78.5 | 106 | 0.662 |
| HM89446/10 | 34.935 | 76.2 | 29.37 | 28.575 | 23.02 | 3.5 | 3.3 | 78.5 | 106 | 0.635 |
| HM89446A/11 | 34.935 | 76.2 | 29.37 | 28.575 | 23.02 | 0.8 | 0.8 | 78.5 | 106 | 0.646 |
| HM89449/10 | 36.512 | 76.2 | 29.37 | 28.575 | 23.02 | 3.5 | 3.3 | 78.5 | 106 | 0.615 |
| M802048/11 | 41.275 | 82.55 | 25.654 | 26.543 | 20.193 | 3.5 | 3.3 | 78.5 | 102 | 0.625 |
| HM803149/10 | 44.45 | 88.9 | 29.37 | 30.162 | 23.02 | 3.5 | 3.3 | 96.5 | 129 | 0.85 |
| LM806649/10 | 53.975 | 88.9 | 19.05 | 19.05 | 13.492 | 2.4 | 2 | 52.2 | 55.5 | 0.428 |
| JHM807040/10 | 44.45 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 141 | 195 | 1.836 |
| JHM807044/12 | 49.212 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 0.8 | 141 | 195 | 1.527 |
| JHM807046/10 | 50.8 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 141 | 196 | 1.492 |
| JHM807046/11 | 50.8 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 0.8 | | | |
| JHM807045/12 | 50 | 105 | 36 | 37 | 29 | 3 | 2.5 | 139 | 192 | 1.533 |
| HM813845/10 | 55.562 | 127 | 36.512 | 36.512 | 26.988 | 3.6 | 1.6 | 166 | 235 | 2.326 |
| HM813844/11 | 66.675 | 127 | 36.512 | 36.512 | 26.988 | 3.6 | 1.6 | 166 | 235 | 2.042 |
| HM813849/11 | 71.438 | 127 | 35.512 | 36.512 | 36.17 | 3.6 | 1.6 | 166 | 235 | 1.902 |
| 835R/832 | 69.85 | 168.275 | 53.975 | 56.363 | 41.275 | 3.6 | 3.2 | 344 | 467 | 6.04 |
| 837/832 | 76.2 | 168.275 | 53.975 | 56.363 | 41.275 | 0.8 | 3.3 | | | 5.87 |
| 841R/832 | 85.725 | 168.275 | 53.975 | 53.363 | 41.275 | 3.6 | 3.2 | 344 | 467 | 5.19 |
| 842/832 | 82.55 | 168.275 | 53.975 | 56.363 | 41.275 | 3.5 | 3.3 | | | 5.5 |
| 843/832 | 76.2 | 168.275 | 53.975 | 56.363 | 41.275 | 6.4 | 3.3 | | | 5.85 |
| 850/832 | 88.9 | 168.275 | 53.975 | 56.363 | 41.275 | 3.5 | 3.3 | | | 5.13 |
| 855R/854 | 88.9 | 168.275 | 53.975 | 53.363 | 41.275 | 3.6 | 3.2 | 344 | 467 | 7.71 |
| 855/854 | 88.9 | 190.5 | 57.15 | 57.531 | 44.45 | 8 | 3.3 | | | 7.54 |
| 857/854 | 92.075 | 190.5 | 57.15 | 57.531 | 44.45 | 8 | 3.3 | | | 7.33 |
| 857R/854 | 92.075 | 190.5 | 57.15 | 57.531 | 44.45 | 7.9 | 3.2 | 385 | 565 | 7.52 |
| 861/854 | 101.6 | 190.5 | 57.15 | 57.531 | 44.45 | 8 | 3.3 | | | 6.68 |
| 864/854 | 95.25 | 190.5 | 57.15 | 57.531 | 44.45 | 8 | 3.3 | | | 7.12 |
| 864R/854 | 95.25 | 190.5 | 57.15 | 57.531 | 44.45 | 7.9 | 3.2 | 385 | 565 | 7.3 |
| 866/854 | 98.425 | 190.5 | 57.15 | 57.531 | 44.45 | 3.5 | 3.3 | | | 6.93 |
Questions and Answers:
Q: Can I get a sample?
A: Yes, we're able to supply stock samples without charge but we need you provide your account of express.
Q: How many days can I get the bearings if I place an order?
A: For stock order, you'll received them in 3-5 days by express and 15-25 days by sea shipment.
Q: What is the terms of payment?
A: For the convenience of business, we normally accept T/T,Western Union,Paypall for the instant payment.
Q: How much money of the advance payment should I pay for the order?
A: For small order that less than $2000, you need pay 100% for the order value; For those amount over $3000,we will ask you pay 30% of the total amount as the advance payment.
Q: Do you have any aftersales service?
A: Yes we have a perfect after market service for all the customer. If you get any problem, we will reply you at the first time and supply the best solutions to solve the problem.
Q: Is there any discount or promotion for customers?
A: Yes, we will have a good discount for our stable customer. In addtion, we will send special and beautiful gifts at the christmas or new year to all customer.
