Name: Auto Drain Had402 Series SMC Filter Regulator Lubricator SMC
Brand: ibuyautoparts.com
SKU: 755126685
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Quick Details

Place of Origin: Zhejiang, China (Mainland)
Brand Name: VPC
Model Number: HAD
working medium: air
bowl guard: available
port size: 1/4",3/8",1/2"
Ambient Temperature: 5-60ºC
weight: 0.15KGS/PC

Packaging & Delivery

Packaging Details:	Export standard packing(VPC BOX+VPC CARTON+PALLET) Neutral packing also avaiable
Delivery Detail:	7~10Days

Specifications

Auto drainer
Air shutoff drain
Manual drain
The water cup is provided with metal prective cover.

Summary:

This product often applies to auto remove the seeper at the lower places of piping, frozen type air drying machine, oil separator, air storage tanks and the bottom of various air filters. It can be installed in the places inconvenient for manual discharge sewage, such as higher, lower and narrow places, especially there's large consumption of air or frequent water drains. It can prevent the compressed air being re-polluted by condense water resulting from neglect of manual drain.

Characteristics:

Auto drainer
Air shutoff drain
Manual drain
The water cup is provided with metal prective cover.

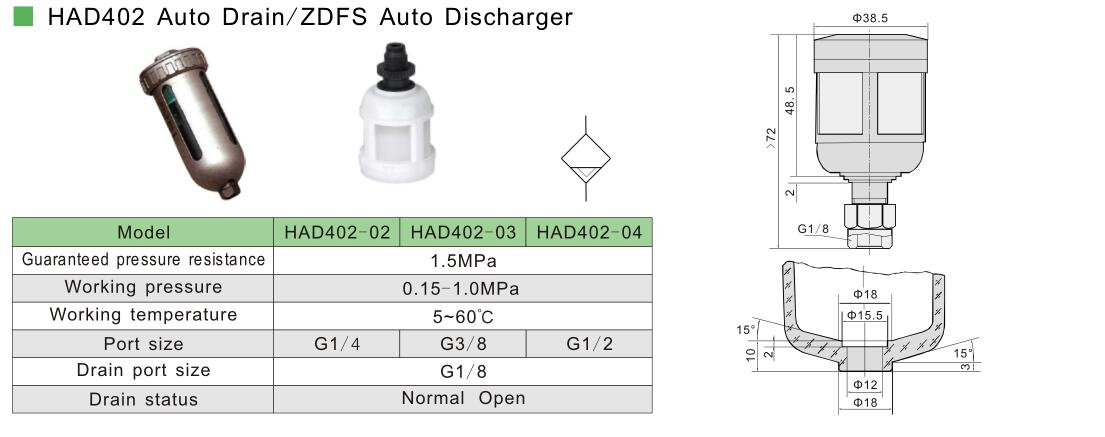

Specifications:

Model	HAD402-02	HAD402-03	402-04
Ensured Pressure Resistance	1.5MPa
Operating Pressure	0.15~1.00MPa
Ambient and Fluid Temperature	5~60°C
Port size	G1/4	G3/8	G1/2
Drain Port Size	R1/8
Drain Status	Normal Open Type
Working Medium	Compressed air

Prod Model:	HAD402-02 HAD402-03 HAD402-04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Auto Drain

VPC Pneumatic

Pneumatics is changing air that is wherever and infinitely available in the world to power energy. You might seldom see its actual applications, but currently pneumatic equipment are used in production and conveyer lines in almost all industries.

VPC ® Company, which was founded in 1985, as a leading manufacturer, is dedicated to serve the automation and labor saving requirements with our pneumatic product range.

Our goal is to preserve our customers through the complete satisfaction of their specific requirements, having in our mind only to pursue the continuous improvement in the fields of productive efficiency and cost saving. Our professional skills and abundant resources will continue to be the great source of our strength.

Above, coupled with close connection with customers' requirements, enables us to manufacture and market good value, high quality products and to operate successfully around the world. As natural result of such policy, VPC ® Has been recognized to be in compliance with the requirements as provided for the quality system standard ISO 9001: 2000, as well as the CE Certificate, which is the first pneumatic enterprise who get both certificates in Ningbo, China.

VPC ® Built an excellent sales team is taking advantage of a widespread net of local and foreign distributors in constant expansion in the main worldwide strategic areas. We believe the diversity of our product line, and the sincere work of our staff will make VPC ® To be world class performance leaders of pneumatic products.
