Auto Car Spray Painting Booth for Newly Car Assembling Plant

Name: Auto Car Spray Painting Booth for Newly Car Assembling Plant
Brand: ibuyautoparts.com
SKU: 687446235
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	US $ 5500-7650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

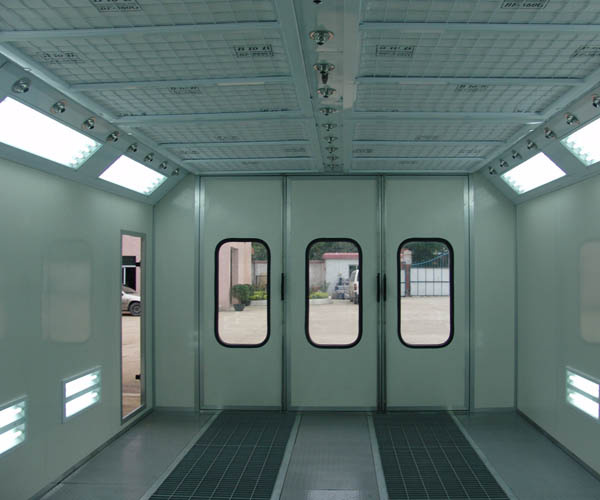

From BZB spray booth factory, Our engineers have over ten years experience in designing the paint booth. The below is a photos of linking spray booth for large garage shops. Please do not hestitate to contact us if you are interested.

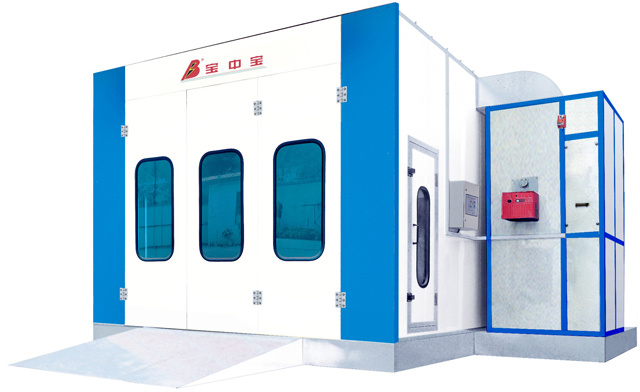

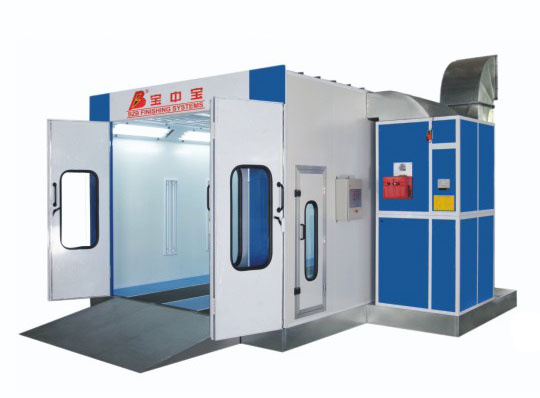

BZB-8300 MODEL
External Size (mm)		7000x5560x3430
Internal Size (mm)		6900x4000x2800
Cabin System	1. Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork door, Galvanied Steel Roof Panel
	4. Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps
Air Circulation System	Inlet Fan		Capacity: 12000m 3 /h
			Power: 4kw/set
			Quantity: 2set

	Air Volume: 24000m 3 /h; Air Speed: 0.35m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤ 1.4mg/m3
Heating System	1. Burner		Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2. Heat Energy Converters		Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp: 80centi degree, Heating Time: 5-7min, Fuel Consumption: 4-6kg/vehicle, 10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900Lux
Electric Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
