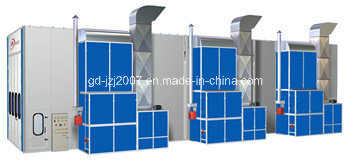

Auto Car Paint Spray Booth /Spray Paint Baking Booth

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude
Specification
- Outside Dimension (mm): 15156× 6656× 5800(L× W× H)
- Inside Dimension(mm): 15000× 5000× 5000(L× W× H)
- Front Door Dimension (mm): 4000(W)*4500(H)
- Escaped Door(mm): 2000x800( two pcs)
- Total power: 63 W.

-Cabin System

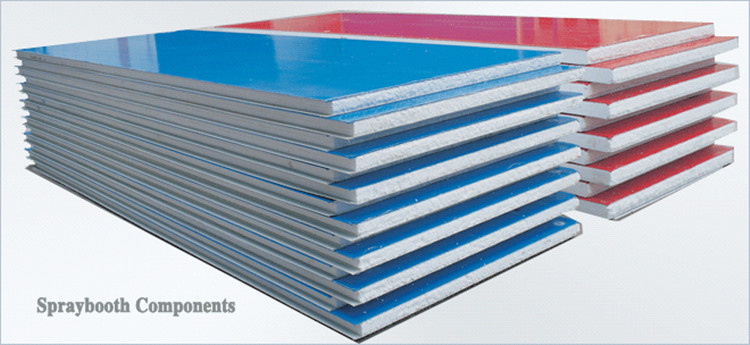

1) Wall panel: 75mm thickness EPS colorful steel skin board. Steel sheet thickness: 0.5mm, heat- insulation
2) Roof board: 50mm thickness rock wool panels
3) Basement: Dig pits basement as manufacturers drawing, the basement foundation be prepared by customer.
4) Front Door: 4 folded glass door.
5) Glass: All glass of the spray booth are safety glass

-Air Circulation System:
1) Air Inlet Fan: 2x7.5kw centrifugal fan, air capacity: 18400m3/h /, QTY: 2 sets,
Two units air inlet system.
2) Air Outlet Fan: 1x15kw centrifugal fan, air capacity: 33398 m3/h, QTY: 1 set
Two units air exhausted system.
3) Both the air inlet air and exhausted air controlled by the electrical damper.
4) Exhausted ducting: Each air make-up system with 6m air outlet ducting and one elbow.

-Purification System:
Dual filtering structure, the primary filter can capture granules larger than 10 μ M. Ceiling filter can capture granules bigger than 4μ M. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤ 1.4mg/m3
- Heating System: Two sets Italy Riello RG5S Diesel burner, 260000Kcal/h, 20N damper motor.
Max temp: 80, heating time: 15-20min(20-60), fuel consumption: 6-8kg/vehicle
- Lighting System: 80pcs 36w Philips lamp; Bottom light: 44pcs 36w Philips lamp. 800Lux.
-Controlling System: Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm, pressure gauge, timer etc.
-Environmental System: Multi-layers fiberglass filter, and active carbon.
