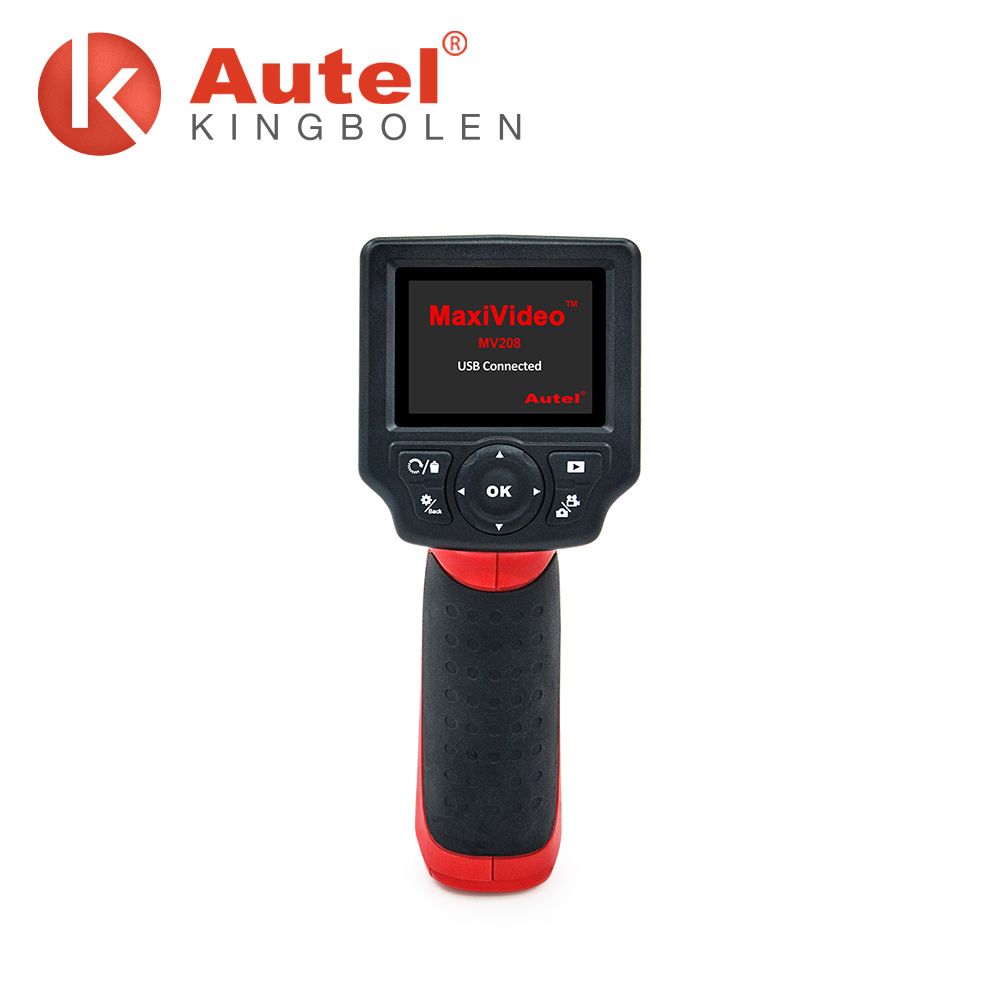

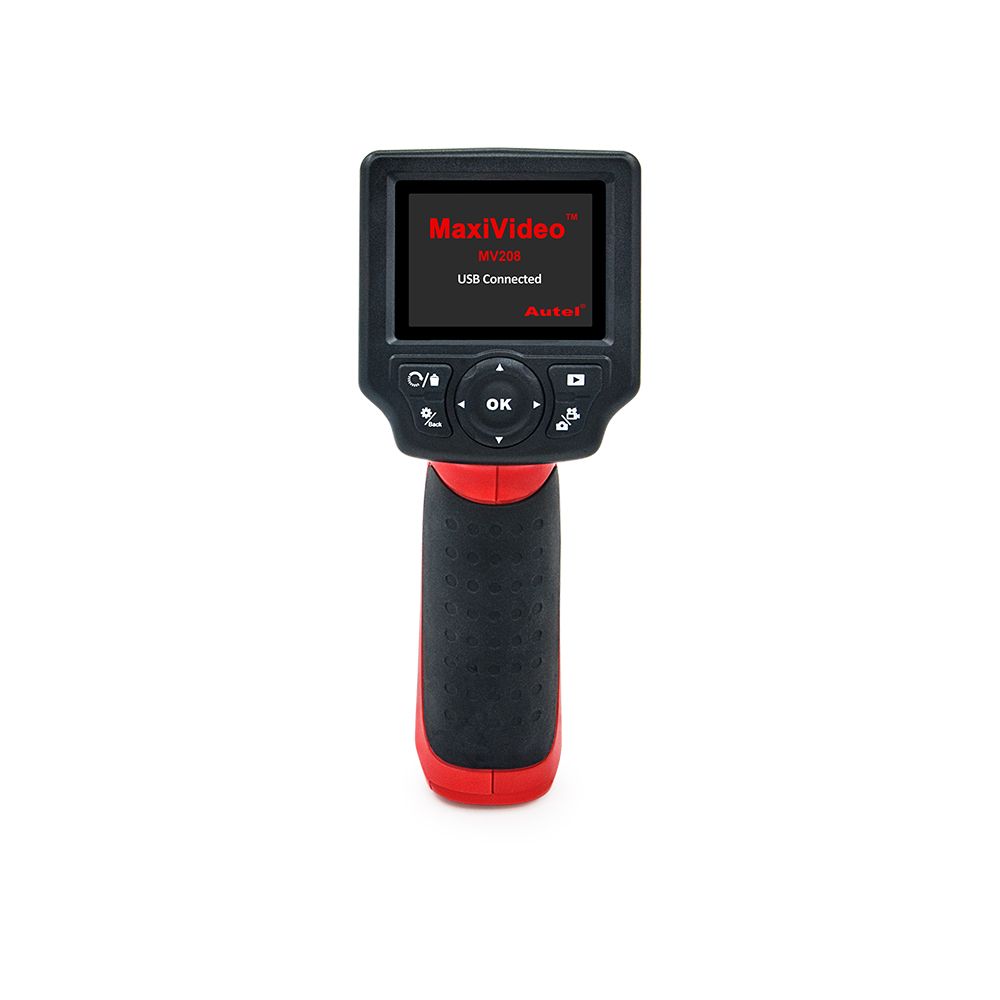

Autel Maxivideo MV208 Digital Inspection Videoscope
Diagnostic Boroscope Endoscope Camera 8.5mm Imager Head
This premier Autel MaxiVideo MV208 digital videoscope is an ideal tool for examining difficult-to-reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 video either on its internal flash memory(100MB) or on your own micro SD cards. The ergonomic tool not only features a 2.4" full color LCD screen, auto focus and viewing capacity as close as 1"; with crystal clear output, but also offers the capability to stream digital video directly to a PC. The multipurpose videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
Features
Record and play back still images and video clips.
2.4" high resolution full color LCD display (320x240).

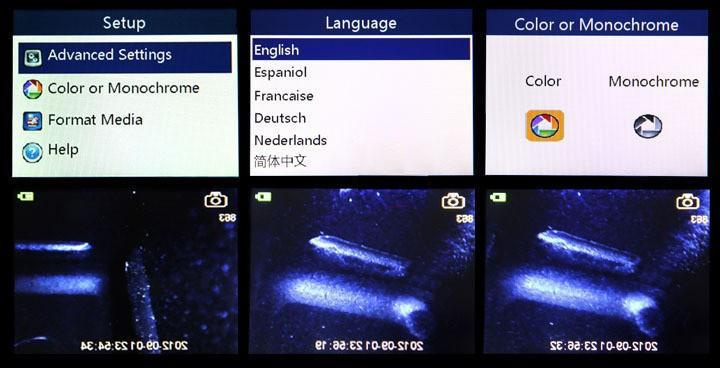

Multi-language interface, easy to use.
Wide camera angle for images with 640x480 resolution
With micro SD card slot, you can insert your own micro SD card to save images and videos.
On-screen horizontal/vertical reverse.
5x digital zoom for increased viewing.

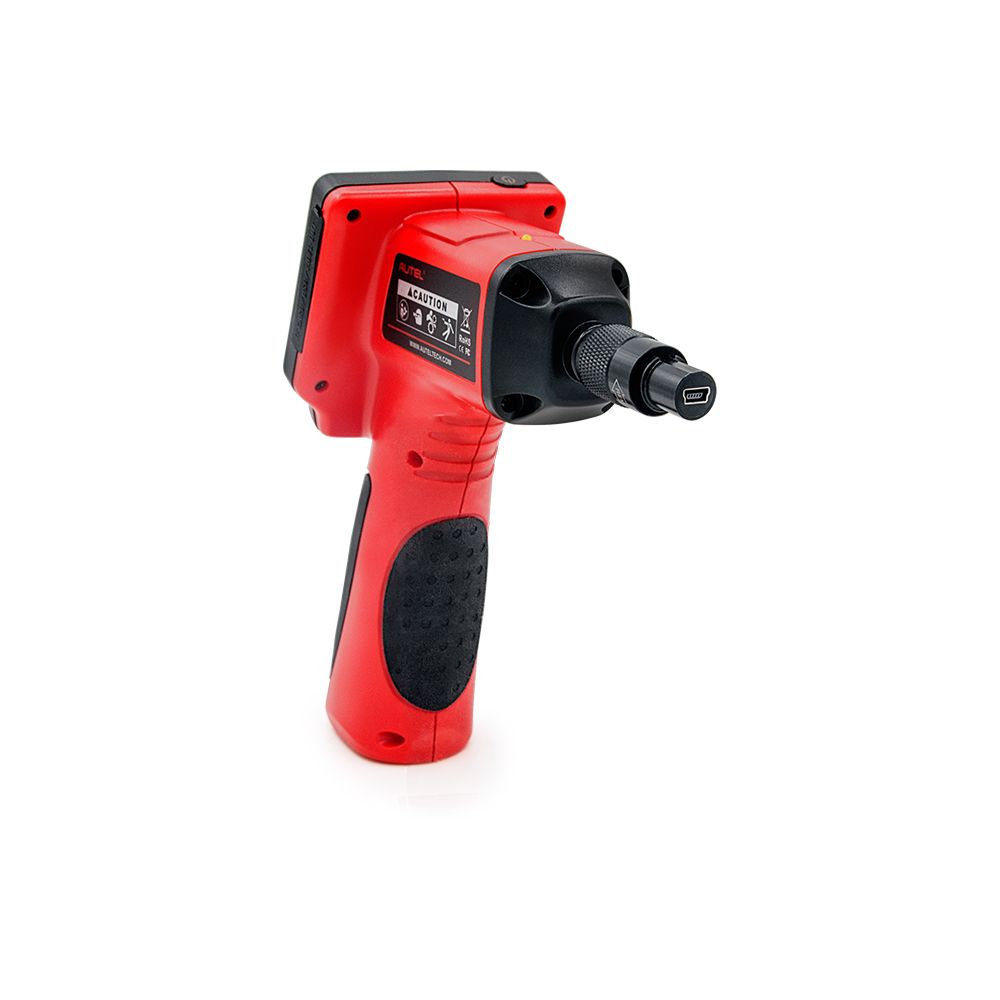

Mini USB connector for uploading images and videos to a computer.
8.5mm(0.33") probe diameter.
White LED to illuminate the inspection area, with illumination control.
View objects as close as 1".
Oil and scratch resistant tempered glass lens.
1M (39.4") semi-rigid, but flexible watertight shaft.
Ergonomic and durable tool housing.
One-year limited warranty.
Powered by 4 AA batteries.
Specifications:
Brand
Autel
Model
MaxiVideo MV208
Recommended use
Indoor
Shell material
Plastic
Language
English
Optimal viewing distance
1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head
Image capture
JPG images (640x480), AVI videos (320 x 240)
Display
2.4" TFT LCD
Display resolution
320 x 240
Power supply
4 x AA alkaline battery(1.5V)
Internal memory
100MB
Recording medium
Micro SD card(Not included)
Imager head
8.5mm
Waterproof
Imager head and cable to 3m
Ports
1 * mini USB port, 1 * video out (TV-out) port, 1 * Micro SD card slot
Operating temperature
Main unit: 0 ~ 45 Celsius degree
; Cable: -10 ~ 80 Celsius degree
Storage temperature
-20 ~ 70 Celsius degree
TV out
NTSC, PAL
Item weight
Approx. 256g / 9.03oz(Accessories not included)
Package size
Approx. 29 * 10.5 * 25cm / 11.4 * 4.1 * 9.8in
Package weight
Approx. 1378g / 3.04Lb
Package Included:
1 * MaxiVideo MV208

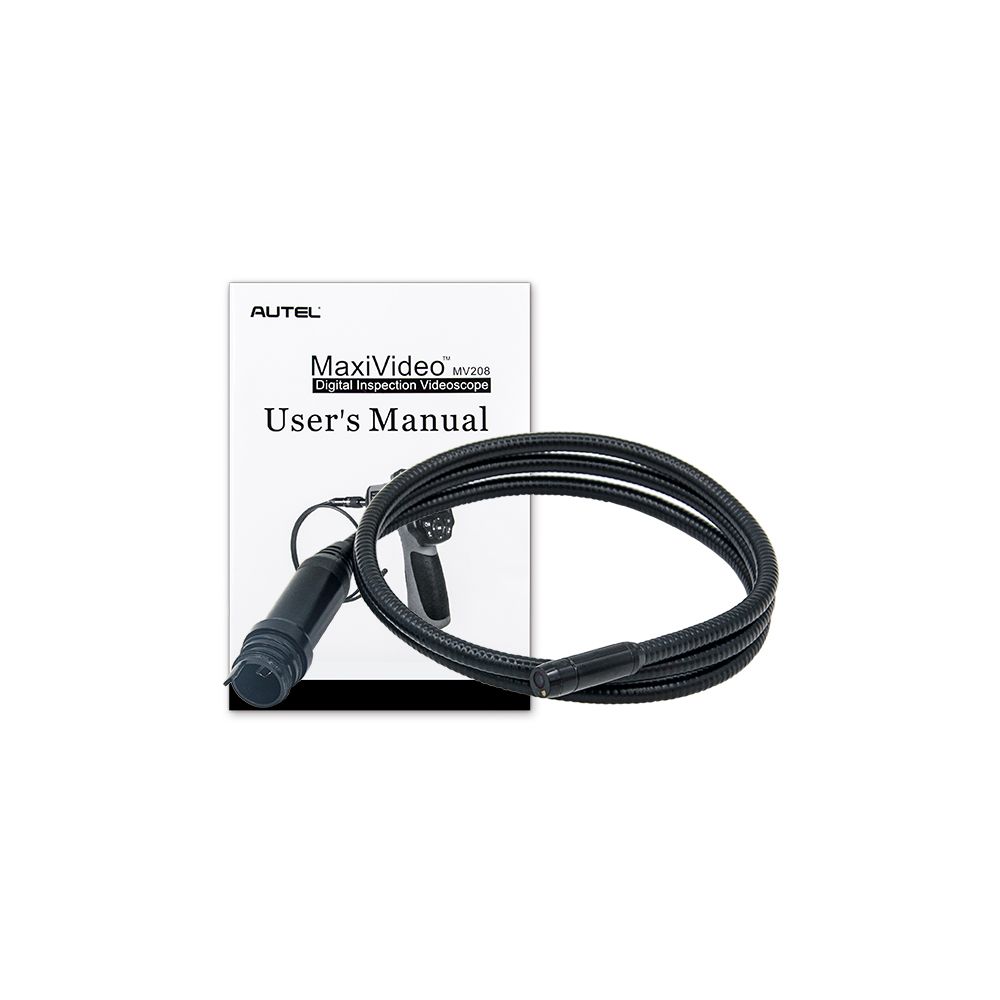

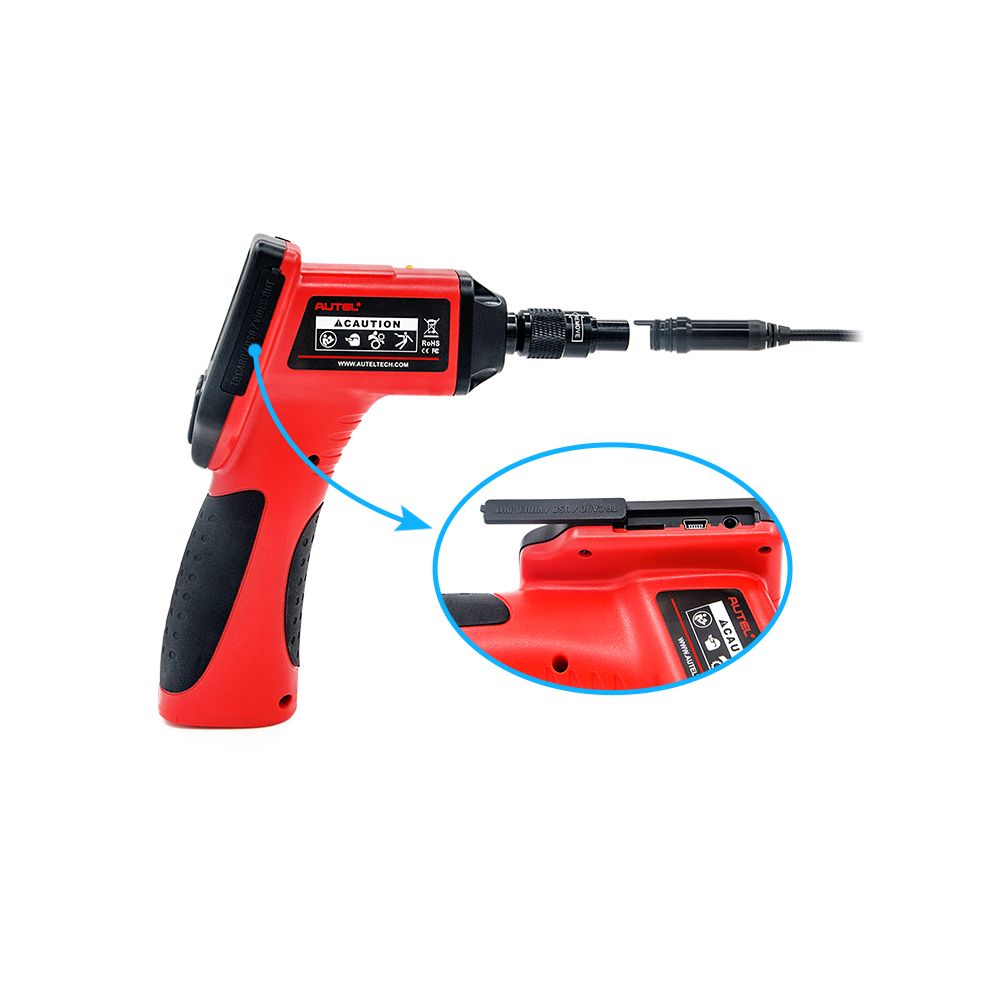

1 * Imager head and cable (8.5mm)

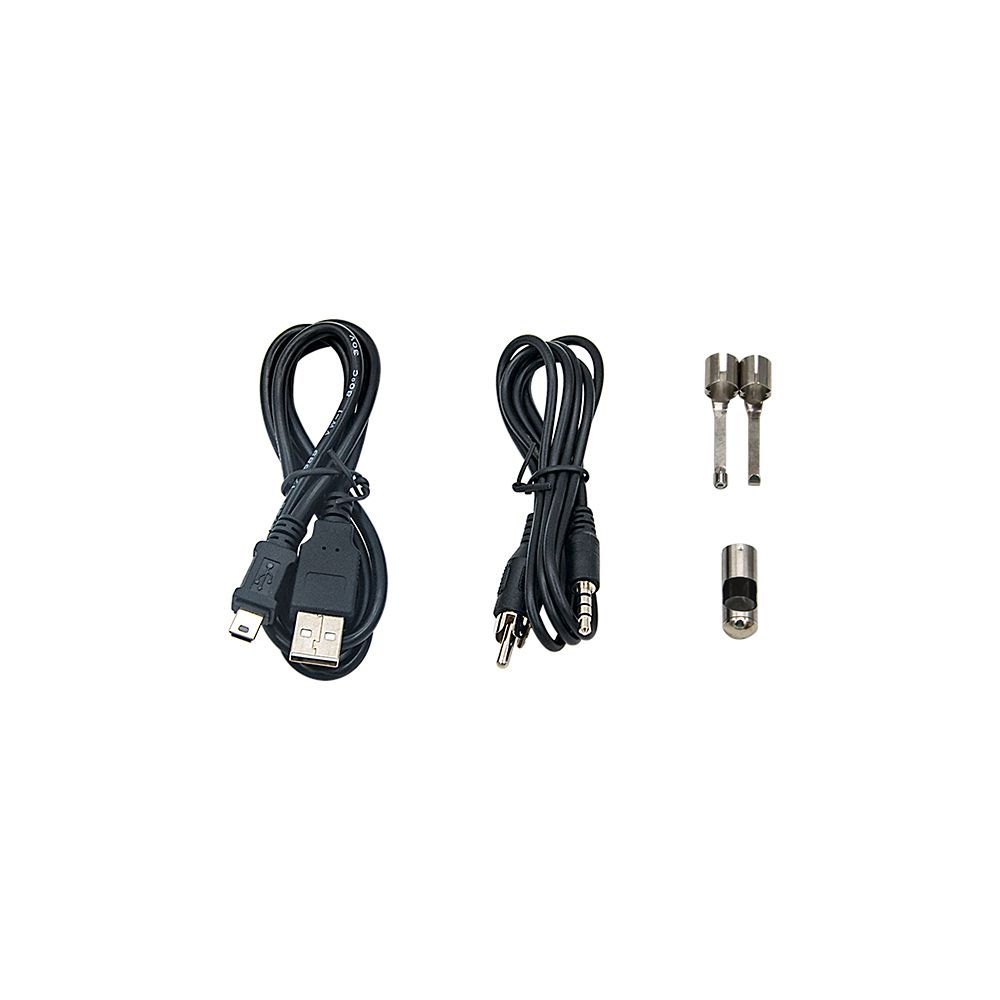

1 * USB Cable
1 * Video-out cable
1 * Magnet, hook and mirror
1 * Carrying case
1 * User's Manual
