Autel Maxidas Ds808 Automotive Diagnostic & Analysis System All Electronic Systems Live Data ECU Programming Upgrade From Ds708
| Price: |
US $ 780-799/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Diagnostic Tools Autel MaxiDAS DS808 Car Diagnostic Tool Update Online Remote Diagnosis ECU Programming Update from DS708

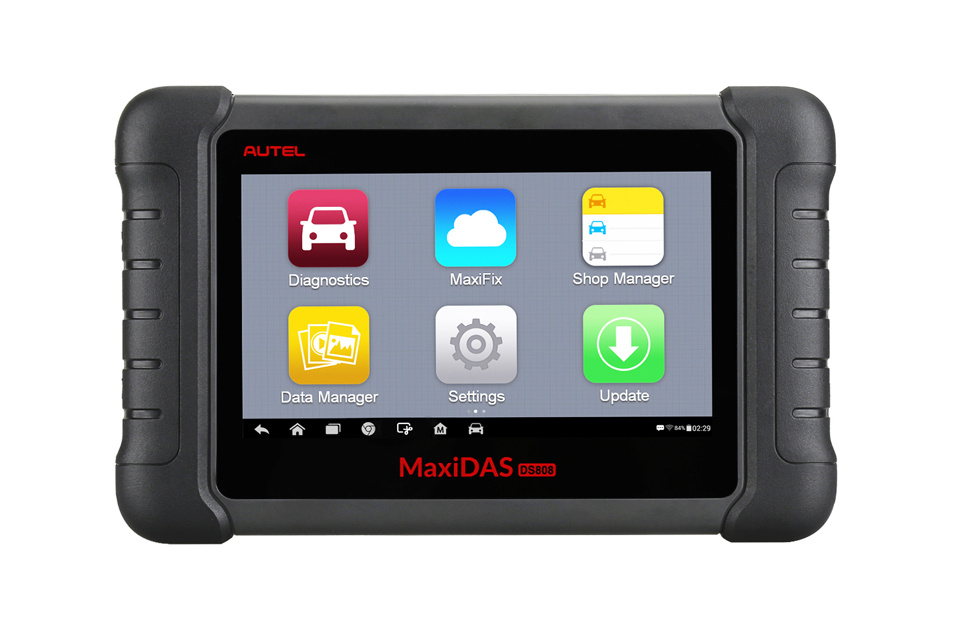

Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.

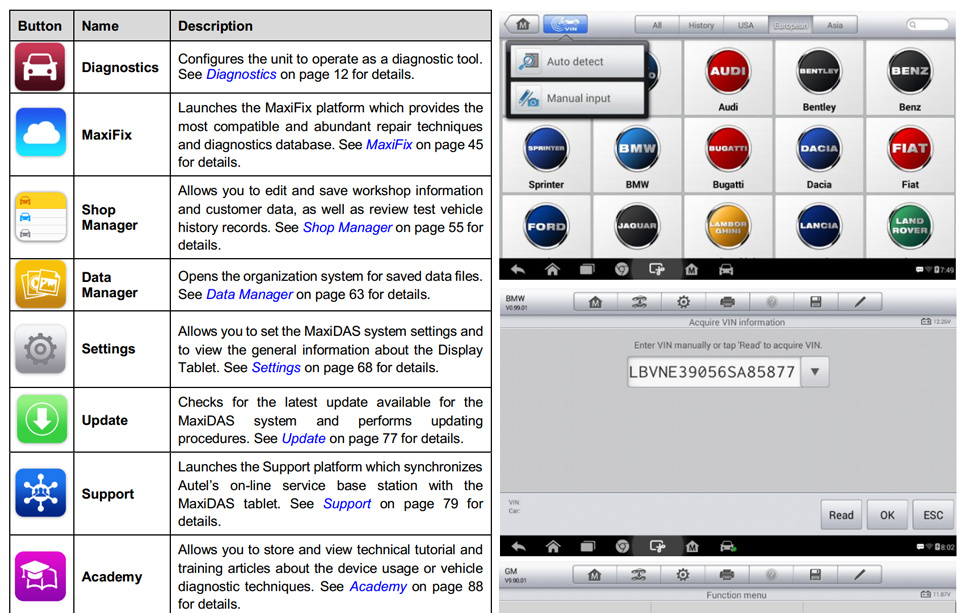

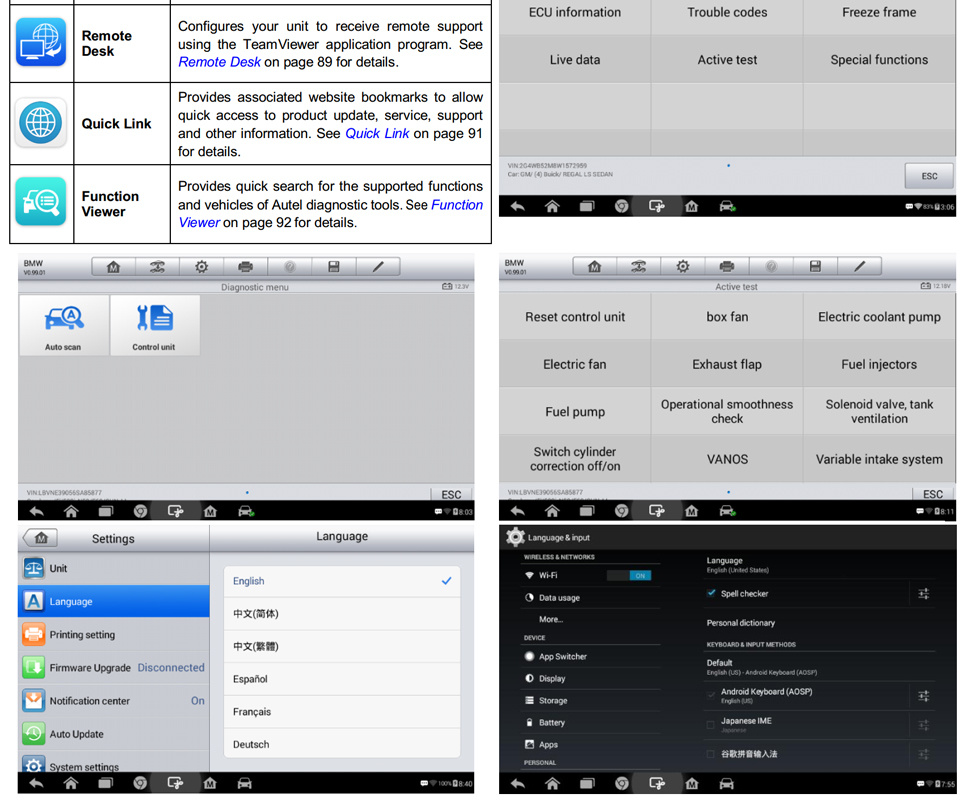

Functions:
1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle make
2. Exceptional OE-Level system coverage for all electronic systems
3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
4. Smart AutoVIN technology for identifying vehicles easily
5. Automatic system and software updates with real-time push message notifications via Wi-Fi
6. Instant remote control tech support anytime, anywhere
7. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
8. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
9. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
10. Convenient data management system for managing internal program applications and reviewing data
Specifications:
Recommended Use Indoor
Operating System Android™ 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0 USB 2.0 Wi-Fi • Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input/Output Input: N/A • Output: buzzer
Power and Battery • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850
VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and
Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo
Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

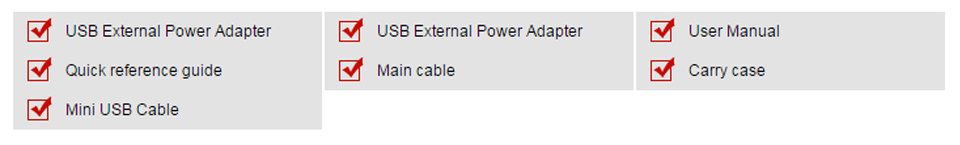

Packing List
| Prod Model: |
SC96 |
| Autel Ds808 Language: |
English |
| Autel Ds808 Update: |
One Year Free Update |
| Autel Ds808 Delivery Time: |
2 Working Days After Payment |
| Autel Ds808 Warranty: |
One Year |
| Original: |
100% Original Autel Scanner |
| Update: |
Via Autel Website |
| Support Car Models: |
All Cars |
| Special Features: |
OE-Level Diagnostic Solution Designed for The Afte |
| Car Maker: |
for Audi, Australia Ford, Benz, BMW, etc |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Shenzhen Kingbolen Electrics Technology Co., Ltd., founded in 2005, is a comprehensive enterprise dedicated to the research, development, manufacture and international sale of automotive diagnostic tools, auto key programmers, odometer correction tools, auto programmers and auto cables, such as launch X431 PRO, X100 PAD, X100 PRO, VAS5054, LEXIA3, CAN Clip, CDP, Digimaster3, Handy-Baby, VAG cable and so on.
We provide OEM/ODM services for customers around the world. We have established a global network that helps us work closely with customers and met customer's requirements in a faster speed. Kingbolen has established long-term strategic relationships with many Chinese factories in automotive electronic industries. Currently, we are exporting more than 95% of our products to clients in West Europe, USA, Africa, Southeast Asia and the Middle East. We have implemented a comprehensive quality control system.
Our company persists in the service goal of "Quality, honesty, professionalism and innovation". We do hope "Kinbolen" will become world famous brand in the near future.
