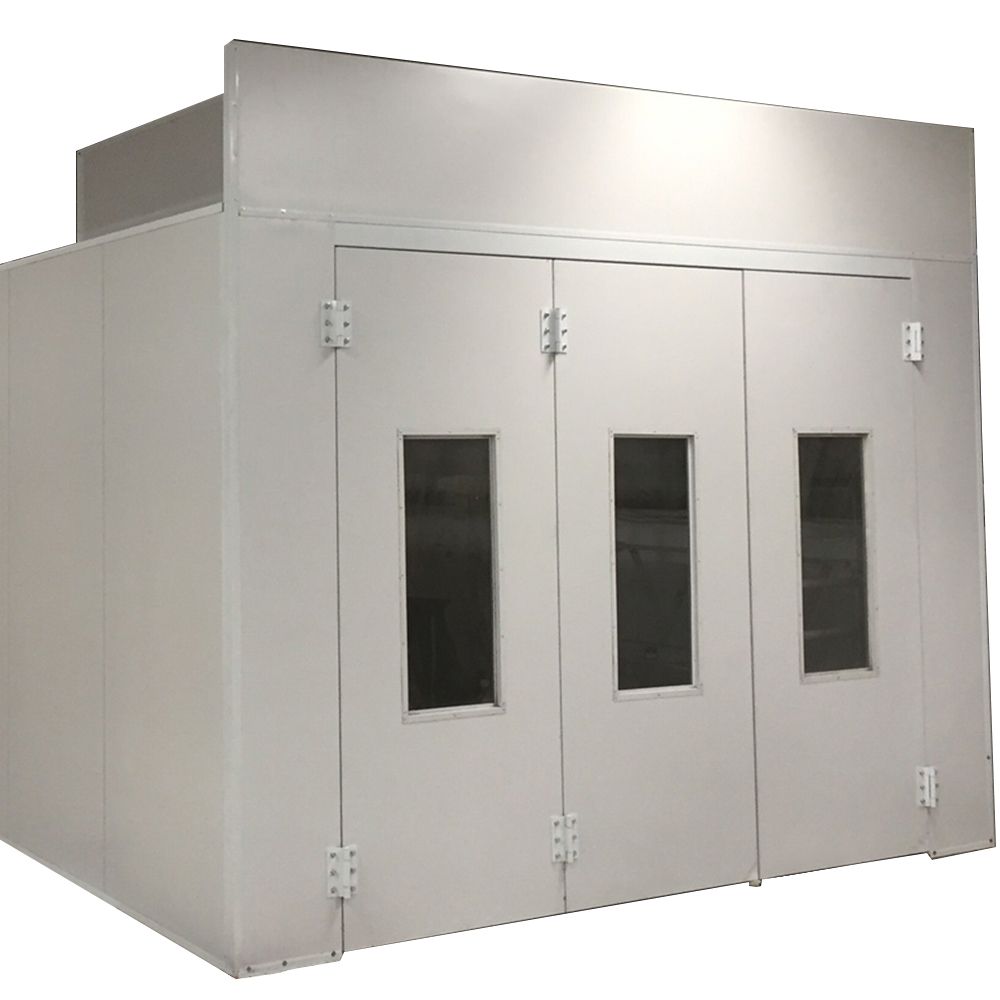

Australian Standard Spray Paint Booth Car Paint Baking Oven

Name: Australian Standard Spray Paint Booth Car Paint Baking Oven
Brand: ibuyautoparts.com
SKU: 691849662
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Model: BTD8900

1. CE approved
2. Spray booth professional manufacturer
3. Factory price, energy saving
4. High quality, best sell service, timely delivery
5. We can meet at customer's special requirement

Model	standard
Cabins size
Internal size	7000×4000×2800 mm (L×W×H)
Outlet size	7110×5870×3810 mm (L×W×H)
basement
design of the base form	700Kg/wheel
bearing capacity of the ground grid	28 M² (full galvanized grids)
filtration area	350mm height
Ramp	option
Wall and door
wallboard	High quality double construction fireproof insulation rock wool panel, thickness: 50 mm,basilar plate0.63mm;snowy white
roof panel	High quality double construction fireproof insulation rock wool panel, thickness: 50mm,basilar plate0.376mm,off-white
3-folded entrance door with safety glass window	1set, size:3000W×2700(WXH)
Operator's door with safety glass window	2sets, 800×2000 mm(B×H) Location: before and after

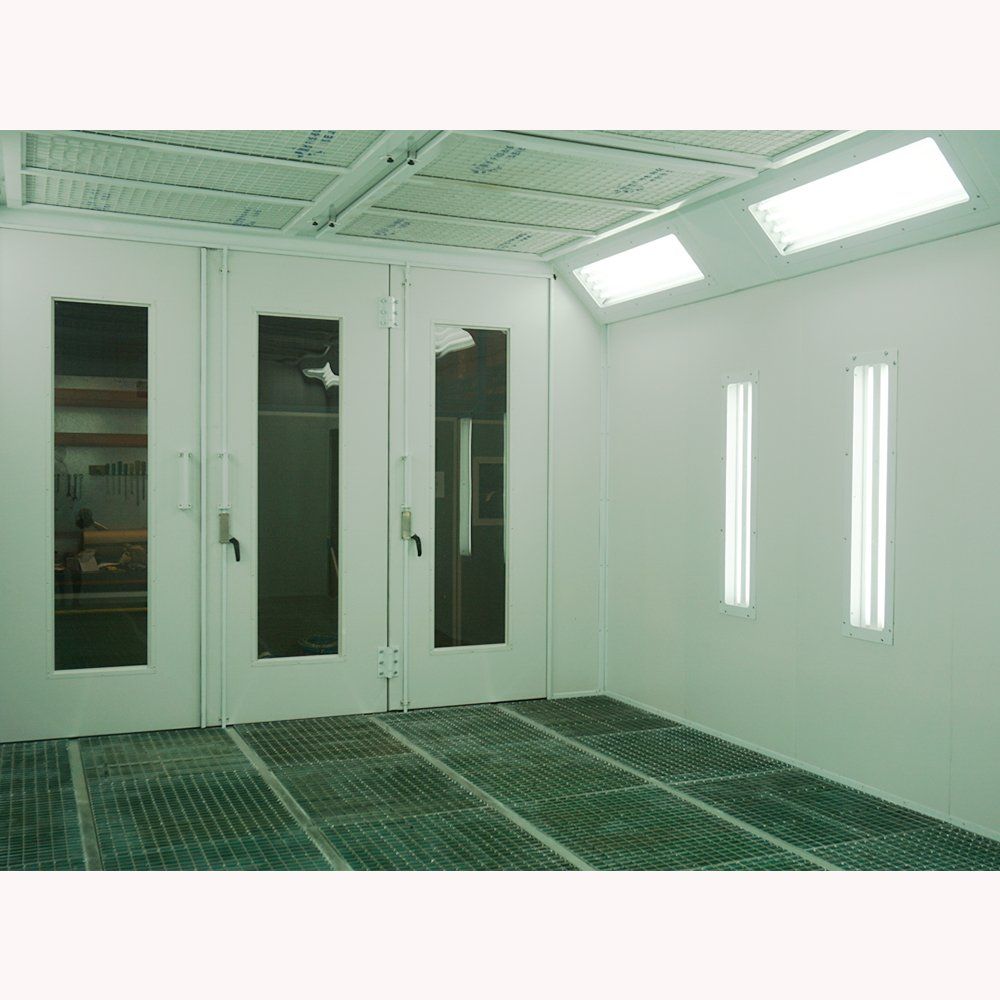

Lighting system
Ceiling lighting (lighting box is outside)	8Units, each4×36 w, 240V,total 1152 w lamps Osram
Side lighting(lighting box is outside)	10Units, each2×36 w, 240V, total 720 w lamps Osram
-Luminance	> 1500 lux
Filtration System
Pre-filters	bag filter-4 Pieces
Ceiling Filters	EU5 grade cotton filters, 6 Pieces
Bottom filter	Blanket fiberglass paint resistance
Ventilation system
-Direct type motor(inlet)	1×7.5 kw, 970r, 415 V, 50 Hz,SIEMENS
-Direct type motor(outlet)	1×7.5 kw, 970r, 415 V, 50 Hz, SIEMENS
Total fan capacity	28.000m³/h
Air flow speed in cabin	+/- 0.28m/s in empty booth
Heating system
Heating exchanger material	Adopt high efficient heat-resistant stainless steel as cycling heat exchanger1Gr18Ni9Ti
Heating exchanger capacity	232KW(200.000kcal/h)
-max heating time	80 °C
- Heating time	5-7minutes( from 20°C to 60 °C) under baking status, the max baking temperature is 80°C
-burner type	Gas burner RS5
- Control board	option
- Function	Spray paint, baking, flow ping, abrupt stop switch
- PLC controller	no
Inverter control	option
- Pressure testing	yes
- over-temperature alarm indication	yes,display for control board

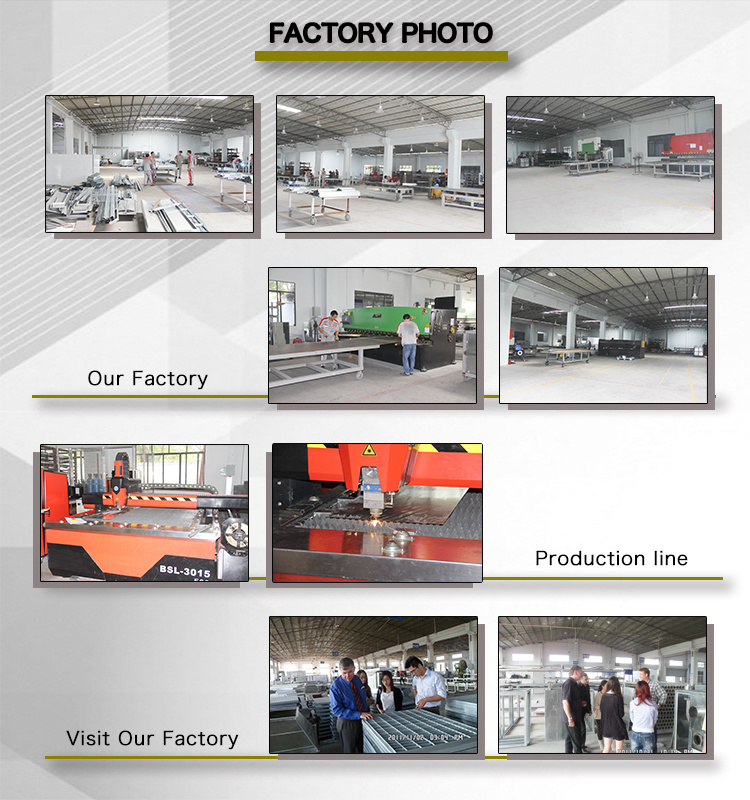

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .

BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.

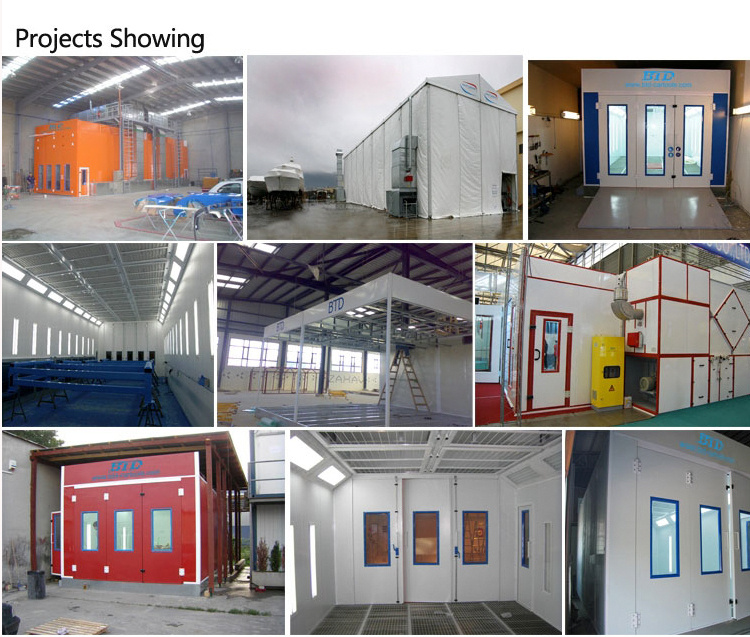

BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .

We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.

Prod Model:	BTD8900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	240V 50Hz 1pH / 415V 50Hz 3pH
Inside Size:(mm):	7000 X 4000 X 2800 mm
Brightness:	> 1500 Lux
Fan Capacity:	28.000 M³/H
Heating Exchange Capacity:	232kw(200.000kcal/H) )
Heating Time:	5-7minutes
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Btd

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.

BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.

BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
