Autol Technology Co., Limited >> Ausland Alt-240sb 4t Economical Clearfloor Two Post Lift Double Cylinder Hydraulic Lift Alt-240sb

Ausland Alt-240sb 4t Economical Clearfloor Two Post Lift Double Cylinder Hydraulic Lift Alt-240sb

Ausland Alt-240sb 4t Economical Clearfloor Two Post Lift Double Cylinder Hydraulic Lift Alt-240sb
Price: Negotiable/Set
Trade Terms: FOB,EXW,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

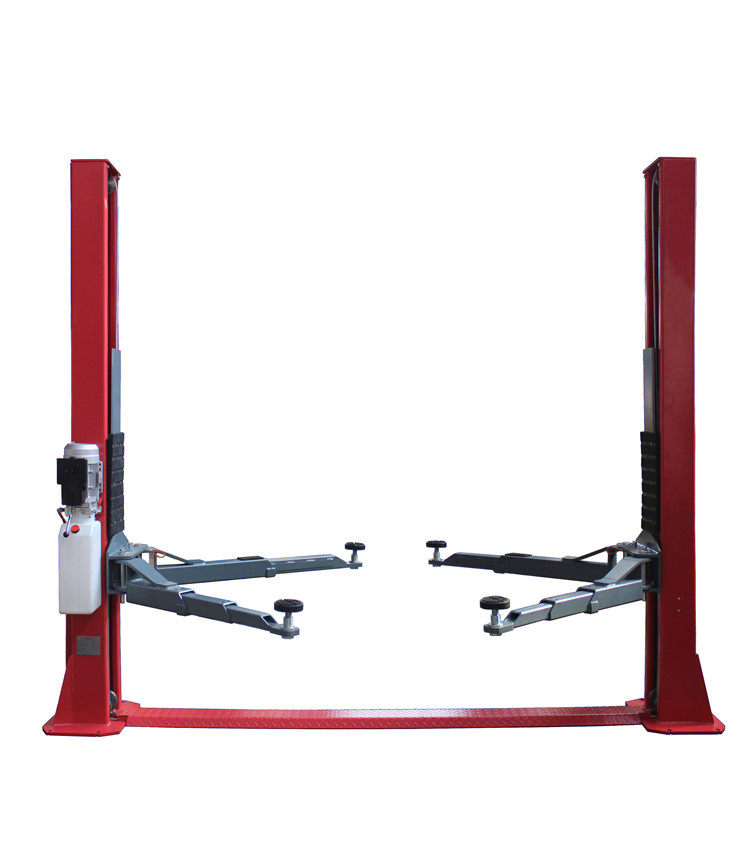

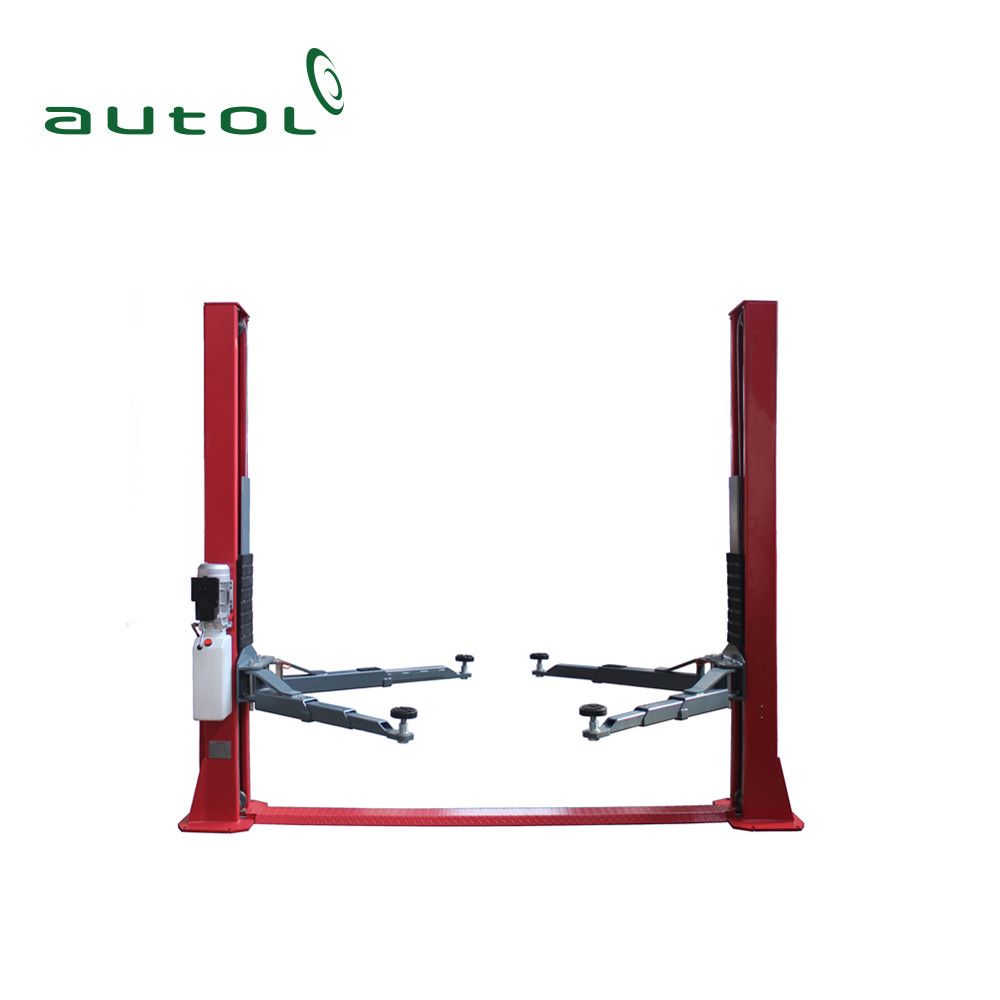

Ausland ALT-240SB 4T Economical Clearfloor Two Post Lift Double Cylinder Hydraulic Lift ALT-240SB

Features

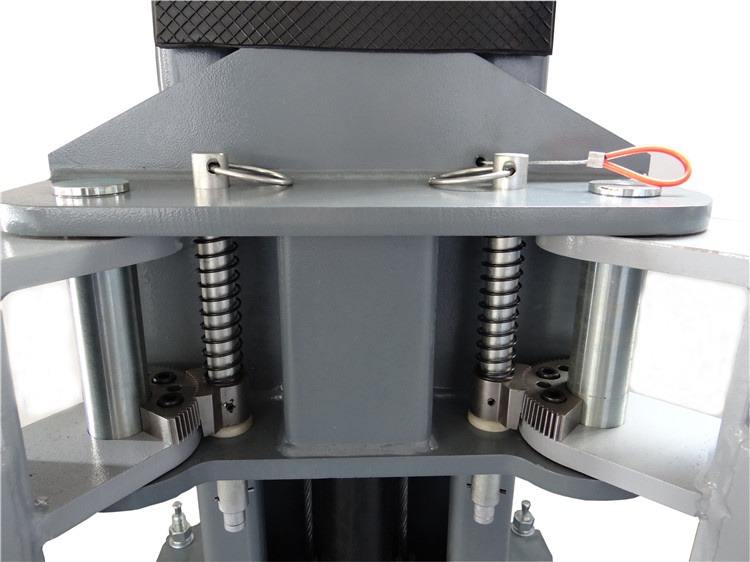

Bilateral manual safety unlocking system.

The cable and oil pipe are fully concealed; with decent and elegant appearance.

Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

Door rubber pad protects car door from being damaged in collision.

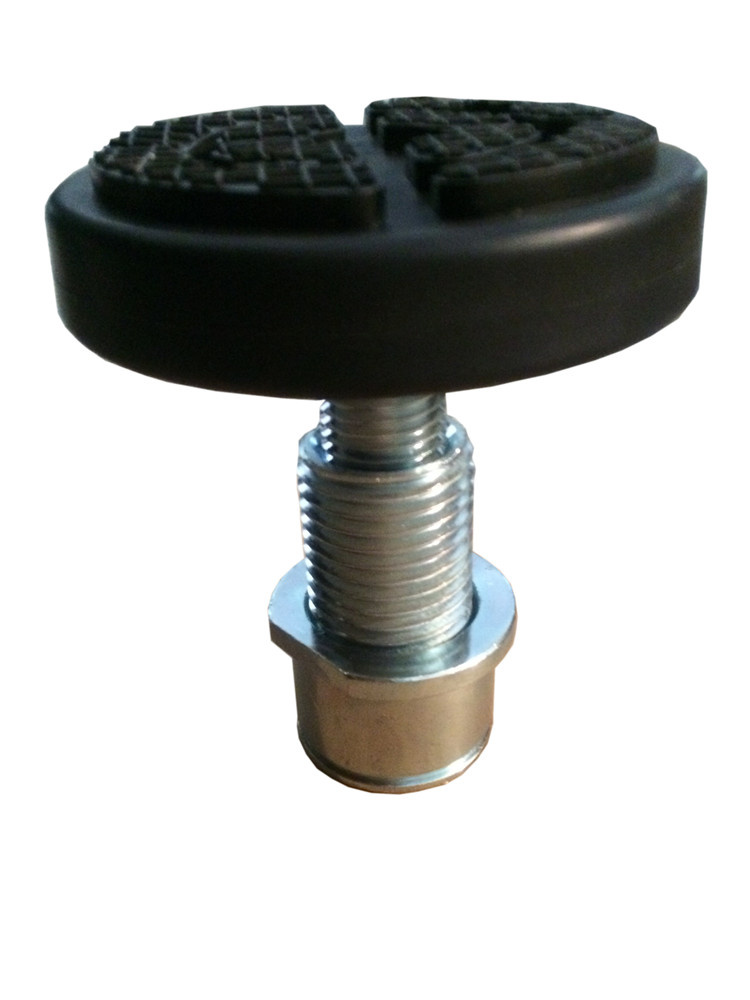

More lifting pads with different height meets the requirements for light Lorries and SUVs.

Passed 115% dynamic loading test and 150% static loading test .



Standard Configuration

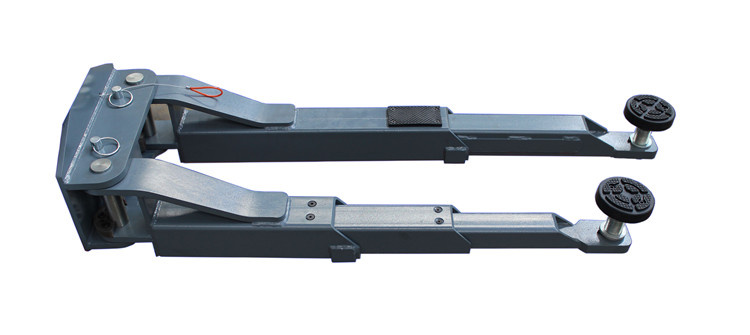

Supporting arms

2×2 stage Long Arms & 2×2stage Short Arms

Model

ALT-240SB

Capacity

4000kg

Weight

600kg

A. Max. lifting

1900mm

B. Overall height

2826mm

C. Overall width

3400mm

D. Drive through clearance

2480mm

E. Supporting arm length front min.

685mm

F. Supporting arm length front max.

1100mm

G. Supporting arm length rear min.

845mm

H. Supporting arm length rear max.

1330mm

I. Adapter height min.

110mm

J. Adapter height max.

155mm

K. Clear size column spacing

2760mm

L. Switch off level

2700mm

Motor performance

2.2kW

Electrical connection

380V-415V

(3 phases)

50-60Hz

Electrical connection

215V-240V

(1 phases)

50-60Hz

Lifting time

≤60 sec

Lowering time

20-60 sec

Both sides manual lock release



Optional

1. Extension Adapter 150mm & 80mm

2. Eco-Alu-Shell Motor

3. δ16mm Reinforce Plates

4. 3 Stage Adapter

5. Foot Protections 1

6. Foot Protections 2



More Pictures:





Prod Model: 603010013
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Load Capacity: 4000kg
Model: Ausland Alt-240sb
Warranty: 12 Months
Delivery Time: 3 Day
Original: 100% Original
Performance: Strong and Stable
Model Number: Ausland Alt-240sb
Keywords: Two Post Lift
Item Type: Car Lifts
Special Features: Economical Floor Plate Two Post Lift
Certification: CE
Type: Car Lift
Update Method: No Need Update
