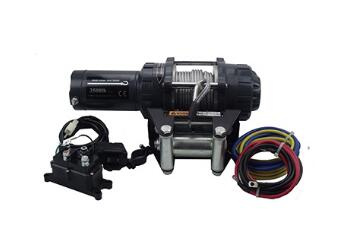

ATV Electric Winch with 3500 Lb

Portable & compact design , powerful seale winch motor , three planetary gear train ,fast line speed ,gear ratio: 158:1! all metal gears , run smoothly with no noise ,draw low amps .more efficient . Extreme performance with not big price ! Ideal winch for ATV & UTV riders .Both synthetic ropes and steel cables are available ! OEM service is acceptable all the time !

ATV3500LBS WINCH FEATURES AND SEPCIFICATIONS

Part Number: XM-XA810

a. pulling rate: 3500lbs. (1560kgs) single-line

b.motor : DC 12V 1.9hp/ 1.4kw permanent magnet

c.gear ratio: 158:1 three stage planetary geartrain

d.clutch:cam activated

e.brake : mechanical

f.switch : handlebar mount mini-rocker wire control and wireless remotecontrol included

g.roller fairlead

h.Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)

i.Wire Rope: 40', 5.5mm diameter (12.25m, 5.5mm diam)

j.Mounting Bolt Pattern: 76 X 124mm

k. wirings ,solenoid (IP67) INCLUDED

Optional kits

Snatch block

winch cover

gloves

hook & strap
