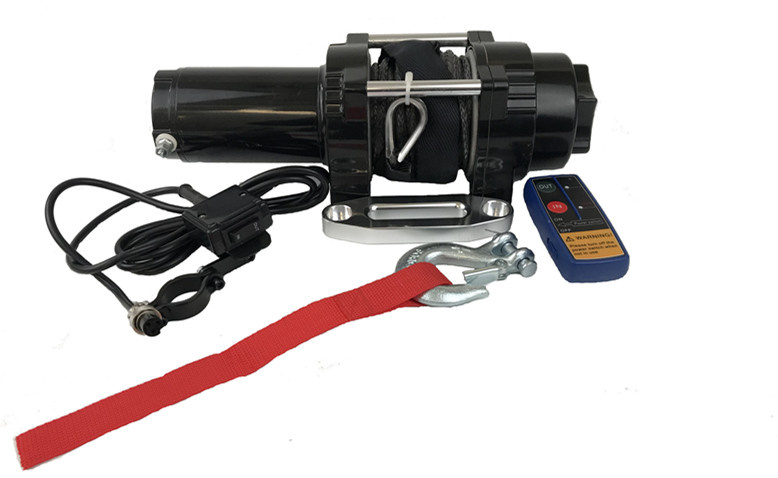

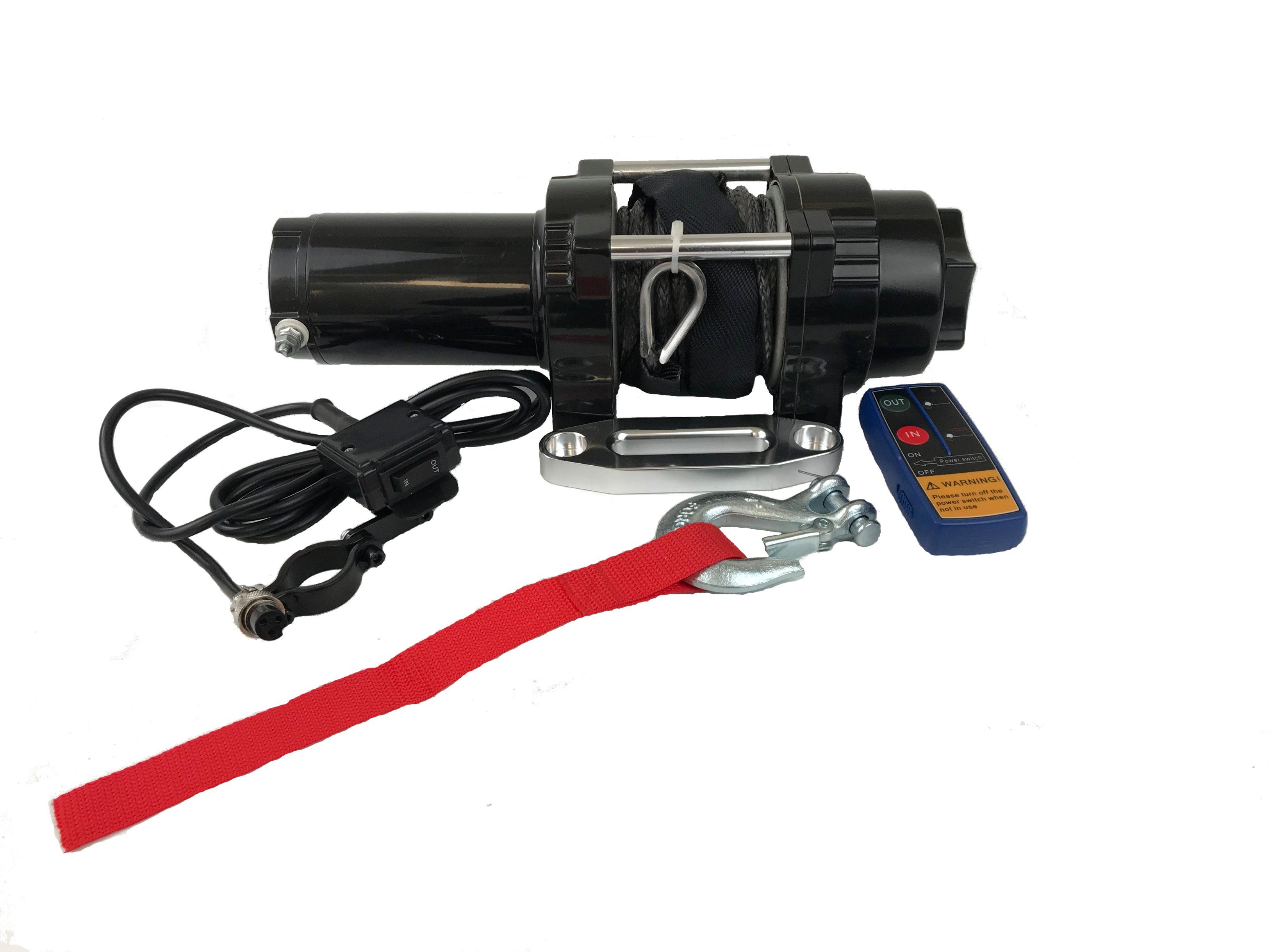

ATV Electric Winch with 3500 Lb Pulling & Waterproof

Name: ATV Electric Winch with 3500 Lb Pulling & Waterproof
Brand: ibuyautoparts.com
SKU: 838581535
Availability: InStock
Rating: 4.8 (107 reviews)

Price:	US $ 72-86/Piece
Min Order:	34/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Specs and Feature 3500 lb ATV winch
XM- XA804
1) Rated Line Pull: 3, 500lbs. (1, 587kgs) single-line
2) Motor: 12V DC, 1.4HP (1.1kw) permanent magnet, sealed
3) Control: Mini-rock switch and remote control, 10ft. (3.0m) lead
4) Geartrain: All-metal strengthens 3-stage planetary, Sealed
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Brake: Automatic mechanical brake
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm), strengthens
9) Synthetic Rope: 40', 5.8mm diameter (12.25m, 5.8mm diam)
10) Cable management: Aluminum hawse fairlead
11) Recommended Battery: 500 CCA minimum for winch
12) Battery Leads: Color coded wiring
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: OEM

PERFORMANCE DATA
Line Pull Lbs. (Kgs. )	Line Speed FT. / min (M/min. )	Motor Current	Pull by Layer layer / Lbs (Kgs. )
0	26 (7.9)	31	1 / 3500 (1587)
500 (227)	20 (6.1)	70	2 / 3080 (1397)
1000 (455)	16 (4.9)	106	3 / 2710 (1229)
1500 (688)	14 (4.3)	141	4 / 2380 (1079)
2000 (907)	11 (3.4)	175
2500 (1134)	8 (2.4)	224
3000 (1361)	7 (2.1)	245
3500 (1587)	6 (1.8)	268

Prod Model:	XM-XA804
Size:	Compact Design
Weight:	Light Duty
Pulling:	3500lb
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
