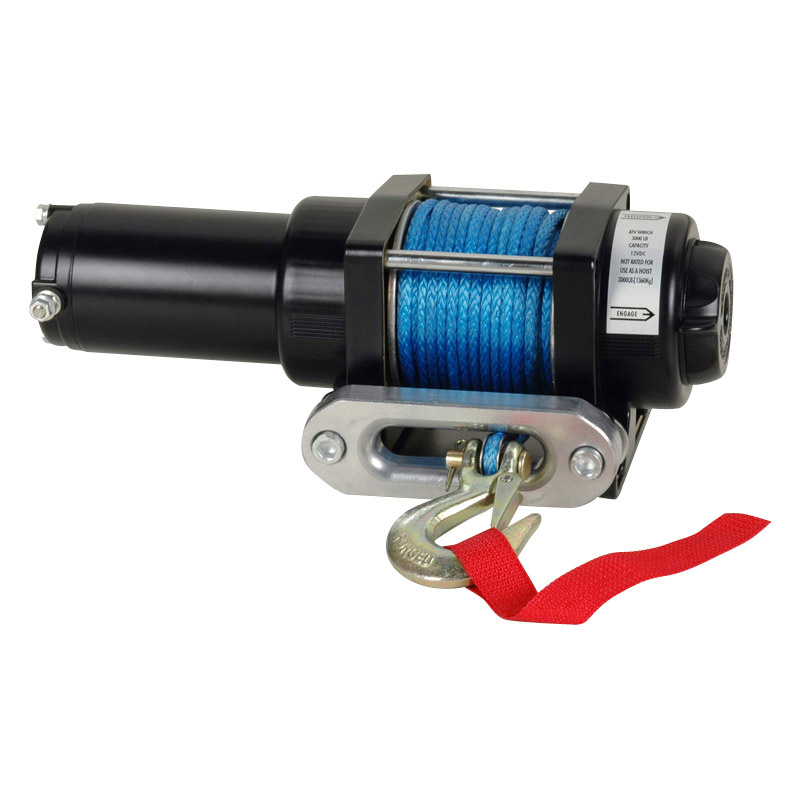

ATV Electric Winch with 3000lb Pulling Capacity, Waterproof, Synthetic Rope

Name: ATV Electric Winch with 3000lb Pulling Capacity, Waterproof, Synthetic Rope
Brand: ibuyautoparts.com
SKU: 617976435
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
1) Rated Line Pull: 3, 000lbs. (1, 361kgs) single-line
2) Waterproof Motor: 12V DC, 1.1HP (0.82kw) permanent magnet
3) Control: Handlebar mounted mini-rocker switch
4) Geartrain: 3-stage planetary
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)
8) Synthetic Rope: 40', 7/32" diameter (12.25m, 5.5mm diam)
9) Cable management: Aluminum hawse fairlead
10) Recommended Battery: 12 AMP/hour minimum

11) Contactor: Heavy duty waterproof contactor

12) Battery Leads: Color coded wiring
13) Mounting Bolt Pattern: 76 X 124mm

14) Finish: Black or grey

**PERFORMANCE DATA**
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	25 (7.6)	18	1 / 3000 (1360)
500(227)	20 (6.1)	51	2 / 2640 (1198)
1000(455)	17 (5.2)	88	3 / 2032 (1052)
1500(680)	14 (4.3)	125	4 / 2040 (925)
2000(907)	11 (3.3)	165
2500(1134)	9 (2.7)	204
3000(1361)	7 (2.1)	240

Product Features:
1)All metal, high precision, high strength of the 3 planetary gear group
2)Waterproof motor
3)Long-life sealed control switch
4)Full sealed large current contactor
5)Install four power wire convenient
6)Hot dip galvanized steel for air level
7)Include component:mounting plate,roller fairlead,G70 hook,contactor,handle switch,wire sets,hardware,Handsaver strap,Sheath of Rubber,ribbon,instruction,EPS packing,colour box etc
8)Small volume, light weight, strong tension etc. Suitable for small SUV, beach all terrain vehicle of JIMNY and light vehicle outdoor operation

Prod Model:	PXT3.0Wi
Markets:	North America,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Brand:	Great
