Ningbo Great Machinery & Electrical Co., Ltd. >> ATV Electric Winch with 3000lb Pulling Capacity (Top-grade Model)

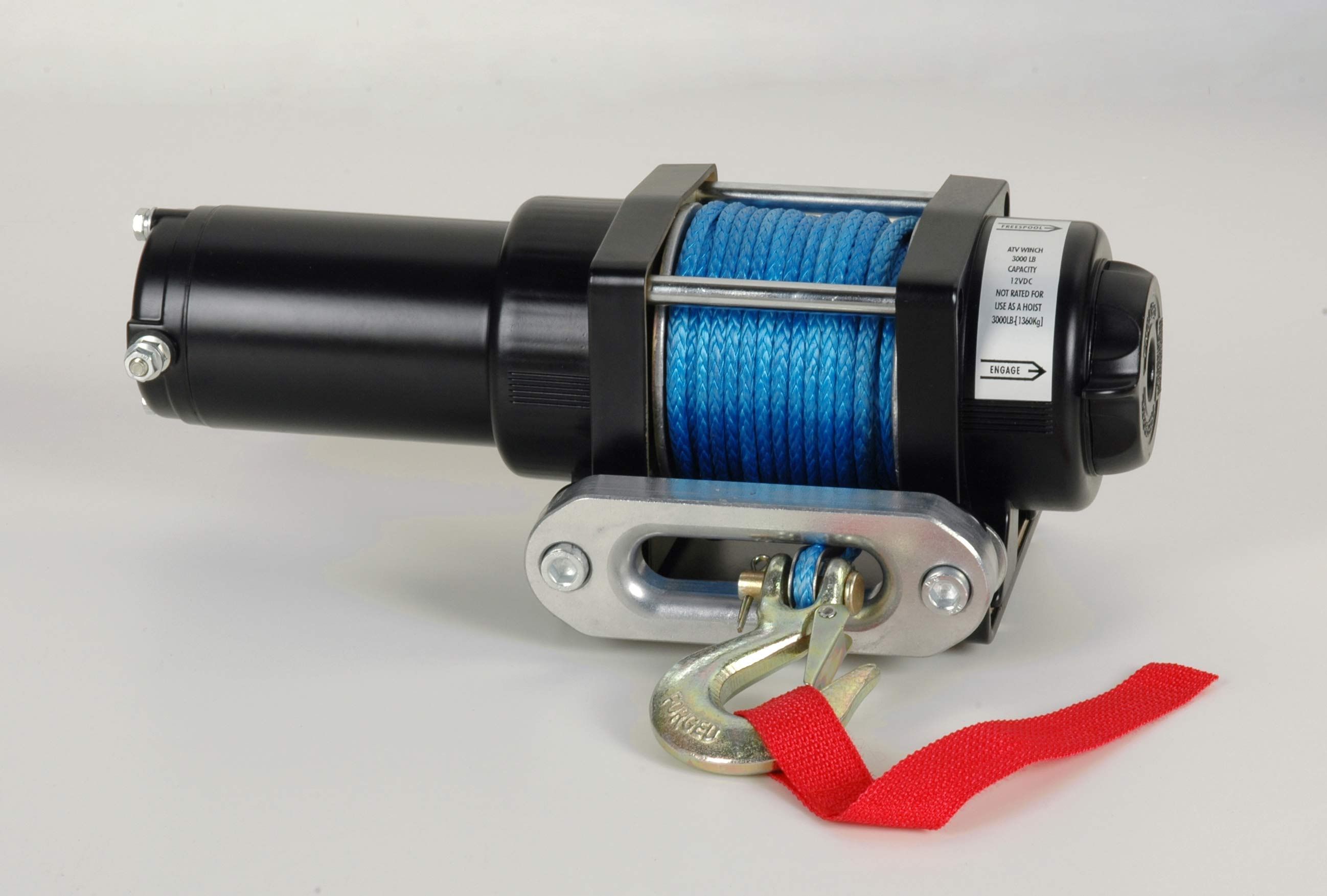

ATV Electric Winch with 3000lb Pulling Capacity (Top-grade Model)

ATV Electric Winch with 3000lb Pulling Capacity (Top-grade Model)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
Prod Model: XTA3.0
Markets: North America,South America,Eastern Europe,Eastern Asia
Body: Waterproof/Metal

Product Description

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Eleven sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 3, 000lbs. (1, 361kgs) single-line
2) Motor: 12V DC, 1.1HP (0.82kw) permanent magnet, sealed
3) Control: Mini-rock switch and remote control, 10ft. (3.0m) lead
4) Geartrain: All-metal strengthens 3-stage planetary, sealed
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Brake: Automatic mechanical brake
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm), strengthens
9) Wire Rope: 40', 5.5mm diameter (12.25m, 5.5mm diam)
10) Cable management: Aluminum hawse fairlead
11) Recommended Battery: 12 AMP/hour minimum
12) Battery Leads: Color corded wire
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: Black or grey
PERFORMANCE DATA
  Line Pull
Lbs. (Kgs. )
  Line Speed
FT. / min (M/min. )
  Motor
Current
  Pull by Layer
layer / Lbs (Kgs. )
       0   25 (7.6)     18   1 / 3000 (1361)
  500   20 (6.1)     51   2 / 2640 (1198)
 1000   17 (5.2)     88   3 / 2032 (1052)
 1500   14 (4.3)   125   4 / 2040 (925)
 2000   11 (3.3)   165
 2500     9 (2.7)   204
 3000     7 (2.1)   240
Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
