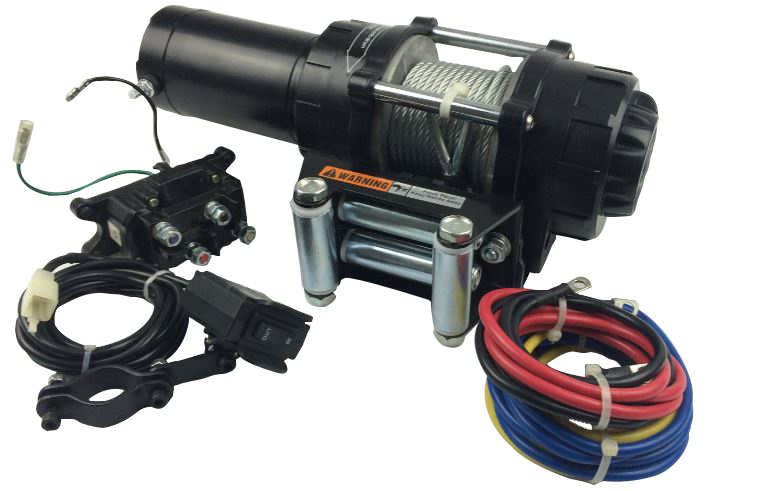

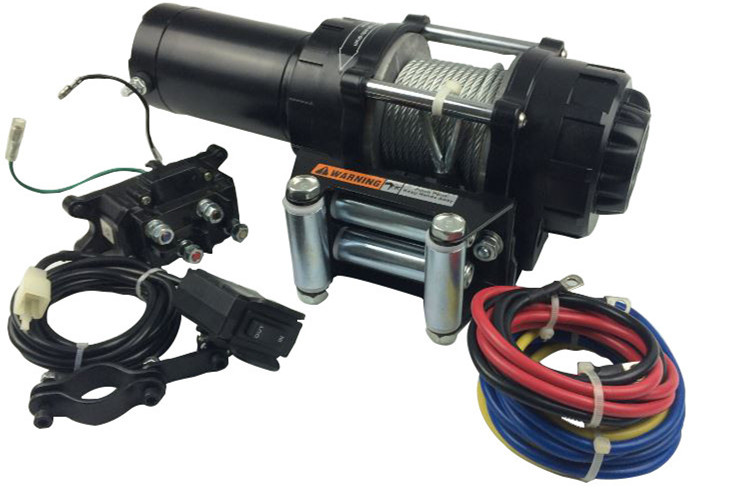

ATV Electric Winch with 3000 Lb Pulling

Name: ATV Electric Winch with 3000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 839012975
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	US $ 60-67/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Portable & compact design , powerful seale winch motor , three planetary gear train ,fast line speed ,gear ratio: 158:1! all metal gears , run smoothly with no noise ,draw low amps .more efficient . Extreme performance with not big price ! Ideal winch for ATV riders and small Side x Side

ATV 3000lbs winch FEATURES AND SPECIFICATIONS

PN: XM-XA811

a. pulling rate: 3000lbs. (1134kgs) single-line

b.motor : DC 12V 1.2hp/ 1.0 kw permanent magnet

c.gear ratio: 158:1 three stage planetary geartrain

d.clutch:cam activated

e.brake : mechanical

f.switch : handlebar mount mini-rocker wire control and wireless remotecontrol included

g.roller fairlead

h.Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)

i.Wire Rope: 40', 5.5mm diameter (12.25m, 5.5mm diam)

j.Mounting Bolt Pattern: 76 X 124mm

k. wirings ,solenoid (IP67) INCLUDED

Optional kits

Snatch block

winch cover

gloves

hook & strap

Prod Model:	XM-XA811
Size:	Compact Design
Weight:	Light Duty
Pulling:	3000lb
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
