Asbestos Free Woven Brake Lining in Roll

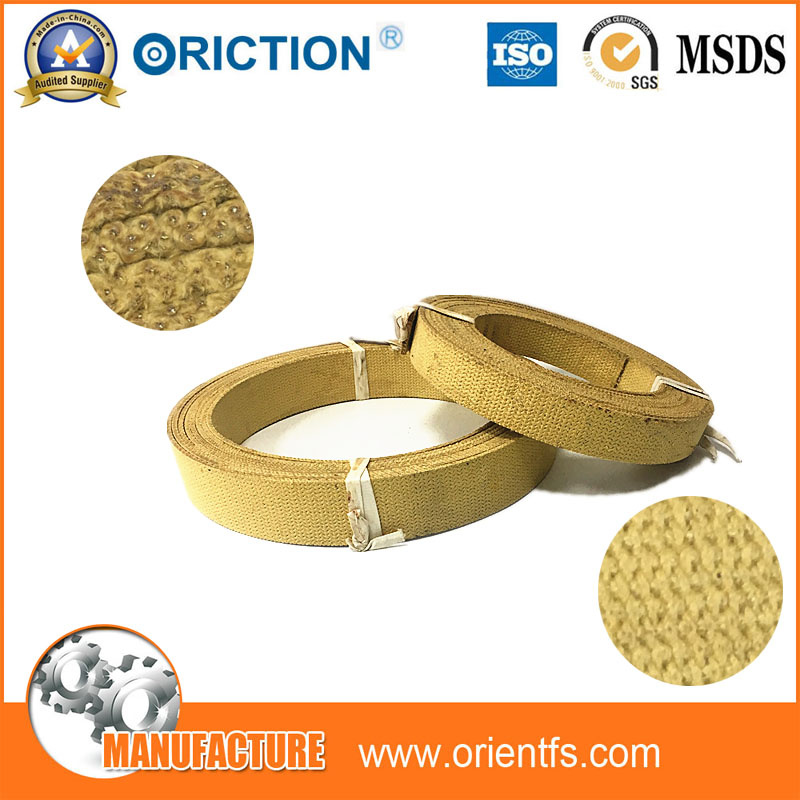

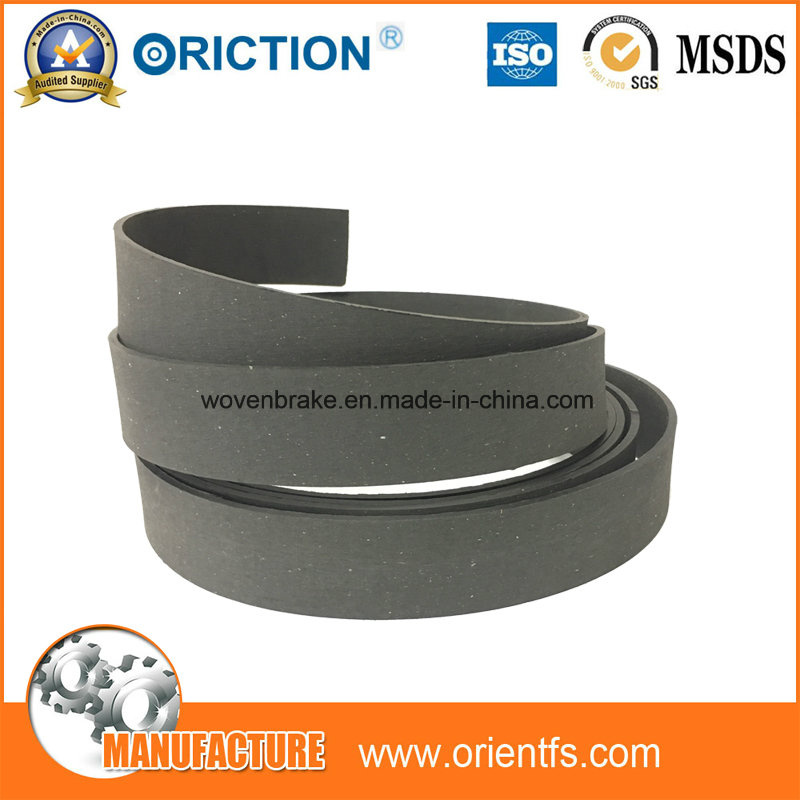

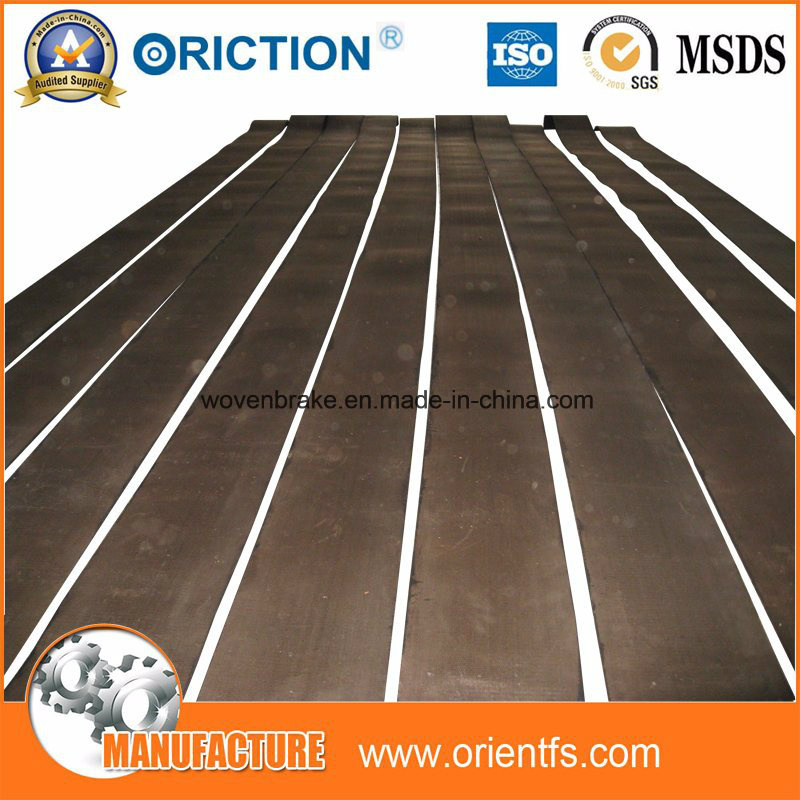

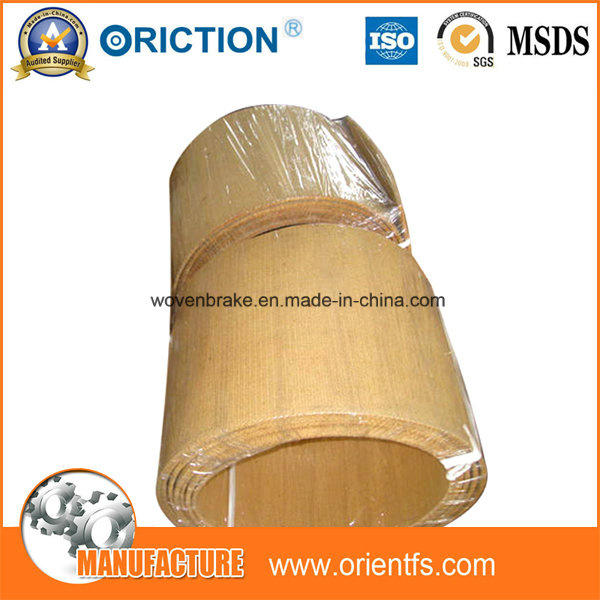

Name: Asbestos Free Woven Brake Lining in Roll
Brand: ibuyautoparts.com
SKU: 711032405
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	US $ 7/Roll
Trade Terms:	FOB
Min Order:	10/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	280mm x 12.7mm x 10meter
Markets:	North America,South America,Western Europe
Size:	280mm X 12.7mm X 10meter
Type:	Brake Lining
Material:	Non-Asbestos
Position:	Front
Certification:	ISO9001

Product Description

Description of Woven Resin Brake Lining In Roll:Orient non asbestos woven brake lining in rolls use the new international composite fiber that is wear resisting and heat resisting, woven by advanced equipment, infused in macro molecule resin, finalizing the shape by technology of high and low temperature. Widely used different working environment for braking and dynamic transfer of high power machines, such as marine anchor, port hoist, drilling machine and lift etc.

Features of Woven Resin Brake Lining In Roll:
  1.    Stable friction coefficient
  2.   Low wear rate
  3.   High tensile strength
  4.   Good flexibly

Data Sheets of Woven Resin Brake Lining In Roll :

Property	Description	Non Asbestos Woven Resin Brake Lining Roll
ORIENT Type		Type yellow	Type brown
Coefficient of Friction	at 100ºC	0.40-0.65	0.40-0.65
	at 150ºC	0.35-0.65	0.35-0.65
	at 200ºC	0.30-0.60	0.30-0.60
Wear Rate (cm3/N.m)	at 100ºC	0.3 X 10-7	0.3 X 10-7
	at 150ºC	0.5 X 10-7	0.5 X 10-7
	at 200ºC	0.7 X 10-7	0.7 X 10-7
Temp Resistance	Working Temp	200ºC
	Max Temp	325ºC
Tensile Strength		21 Mpa
Normal Size	Thickness	5-30mm ( 3/16- 1 1/4 inch)
	Width	500mm (20 inch)
	Length	10m, 15m, 20m (25feet)
Material		Viscose fiber, glass fiber, copper wire,melamine resin	Viscose fiber, glass fiber, copper wire, cashew nut oil resin

Note: Other Size, Color, and Material can be manufactured according to your request.

NINGBO CIXI ORIENTAL FRICTION PRODUCTS CO. LTD.

*****************************************************
Address: No 168, Sanjiangkou Industrail Area, Cixi, Ningbo , China
Phone: 0086-574-87462835
Mobile: 0086-13884461123
Fax: 0086-574-87025070

Website: www.wovenbrake.com
Postcode: 315324
******************************************************

NINGBO CIXI ORIENTAL FRICTION PRODUCTS CO. LTD.

*****************************************************
Address: No 168, Sanjiangkou Industrail Area, Cixi, Ningbo , China
Phone: 0086-574-87462835
Mobile: 0086-13884461123
Fax: 0086-574-87025070
Website: www.wovenbrake.com
Postcode: 315324
******************************************************

Cixi Oriental Friction&Sealing Product Co., Ltd. is located in Cixi, south of Hangzhou Bay, Zhejiang Province, China. It is 110 km east of Hangzhou, 80 km west of Ningbo, and close to national road No. 329. The factory occupies an area of 30, 000 square meters. The company manufactures friction products and sealing products.

With more than 39 years experience Cixi Oriental Friction&Sealing Product Co., Ltd. Specializes in producing brake lining in roll, clutch facing, brake lining, ceramic fiber, carbon fiber packing and non asbestos yarn, all under the ORICTION brand. These products are mainly used in winch brake and engineering machines.

Our factory is a leading enterprise in the Chinese friction and sealing products industry. We have already developed environmentally friendly non-asbestos products of the first generation, featured as: "environmentally protective, safe, value-added and advanced". Our products have passed ISO9001(2008)international quality system certification and have been exported to North America, Western Europe, Southeast Asia.

With competitive prices and good service, we are looking forward to doing business with you.
