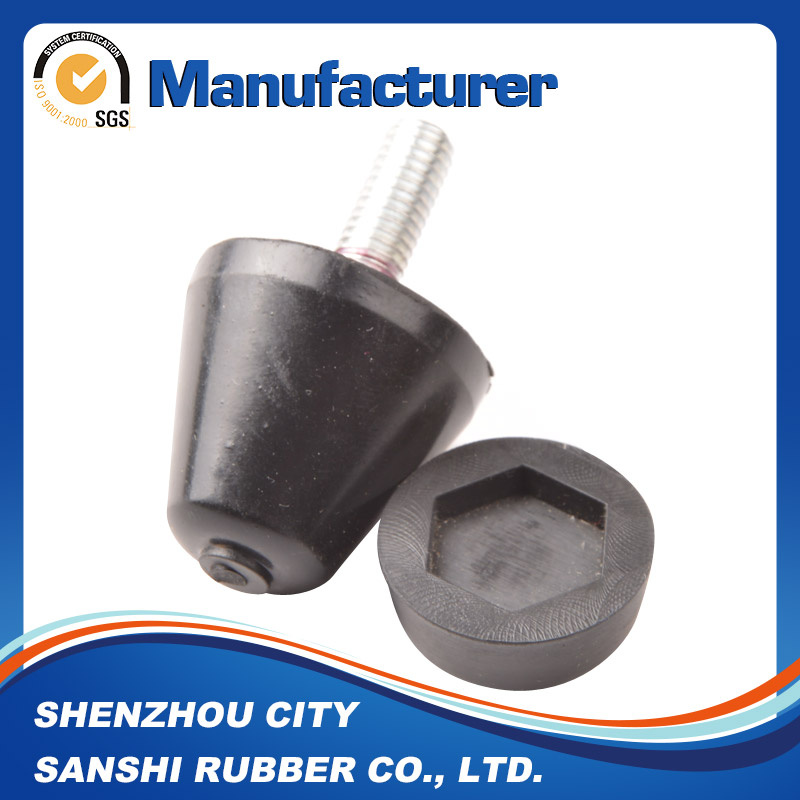

Anti Vibration Rubber Mounting

    We provide a wide range on cable tie, spacer, Rubber foot, Nylon rivets, Screws and nuts, Wiring products, Cable gland, Cable clip, Shrinkable tube, terminal blocks, a variety of standard and non-standard metal parts, all kinds of switches and anti-static products, and so on. Production process include molding injection, PVC coating, material includes NYLON, ABS, PC, PVC, PE, TPE, NBR, rubber, copper, stainless steel and others. Most are providing different flame retardant grade products, all kinds of products in Shanghai we are provided with a considerable number of inventory.




Packaging & Delivery

Packaging Details:	1.Plastic bag 2.Woven bag 3.Carton 4.Wooden package 5.As requested or according to the quantity
Delivery Detail:	10-20 days


Product Description
 What is main specifications of Rubber Anti Vibration Rubber ?
Article No.D
(mm)H
(mm)G x L50ShA
Compression
(kg)50ShA
Shear
(kg)60ShA
Compression
(kg)60ShA
Shear
(kg)

AD1010M4	10	10	M4 X 10	1.5	0.36	2.34	0.56
AD1214M4	12	14	M4 X 10	6.3	1.8	9.4	3.3
AD1515M4	15	15	M4 X 10	5.6	1.5	8.74	2.34
AD2015M6	20	15	M6x18	10	2.5	15.6	3.9
AD2018M6	20	18	M6 X 18	9	2.1	14	3.2
AD2020M6	20	20	M6 X 18	8	1.9	12.5	3
AD2030M6	20	30	M6 X 18	6	1.5	9	2.3
AD2520M6	25	20	M6 X 18	14	3.4	22	5.3
AD2525M6	25	25	M6 X 20	12	3	19	4.5
AD3020M8	30	20	M8 X 20	17	4.2	26	6.5
AD3025M8	30	25	M8 X 20	13	3	20	4.7
AD3838M10	38	38	M10 X 25	23	5.6	36	8.7
AD4030M8	40	30	M8 X 23	26	6.3	40	9.8
AD4048M8	40	48	M8 X 23	24	5.6	38	8.7
AD4625M10	46	25	M10 X 28	53	13	82	20
AD5030M10	50	30	M10 X 28	48	12	75	18
AD5545M10	55	45	M10 X 28	42	10.5	65	16
AD5744M10	57	44	M10 X 28	64	16	98	25
AD5745M10	57	45	M10 X 28	58	14	90	22
AD6036M10	60	36	M10 X 30	76	18	118	28
AD6060M10	60	60	M10 X 28	58	14	91	23
AD7053M12	70	53	M12 X 41	106	26	165	40
AD8065M14	80	65	M14 X 35	183	45	285	70
AD9077M16	90	77	M16 X 45	218	53	340	83
AD9575M16	95	75	M16 X 41	240	58	374	90
AD13096M16	130	96	M16 X 45	320	78	499	122
AD18075M20	180	75	M20 X 45	486	118	758	184


Details
This mount is designed to achieve high vibration damping in both shear and compression.
Applications:
Vibrating equipment & compactors
Suspension of electronic equipment
Small static electric motors and generators

Maximum compression and shear loads are stated in kilograms (kg)
Additional Information
ColourMaterial

Black

Natural Rubber (NR)

*Dimensions can vary, they are typical only.
