Android APP Bluetooth TPMS Tire Pressure Monitoring Ios APP TPMS External Sensors

Prod Model:	TN502 TW502
Name:	Tire Pressure Monitor System
Feature:	OBD,Bluetooth APP with Smart Phone
Chip:	Infineon
Batteries Brand:	Japan Panasonic Batteries
Batteries Life Time:	5year
APP:	Download on Smart Phone
Tire Match:	on APP of Smart Phone
Tire Changing:	on Smart Phone
Alarm:	Human Voice Alarm
Alarm Language:	Chinese,English
Function:	Tire Pressure Monitor System
Type:	Car Tire TPMS

Product Description

Bluetooth APP TPMS can connect by USB or cable or OBD.
APP language could be changed to local language. custom made logo.

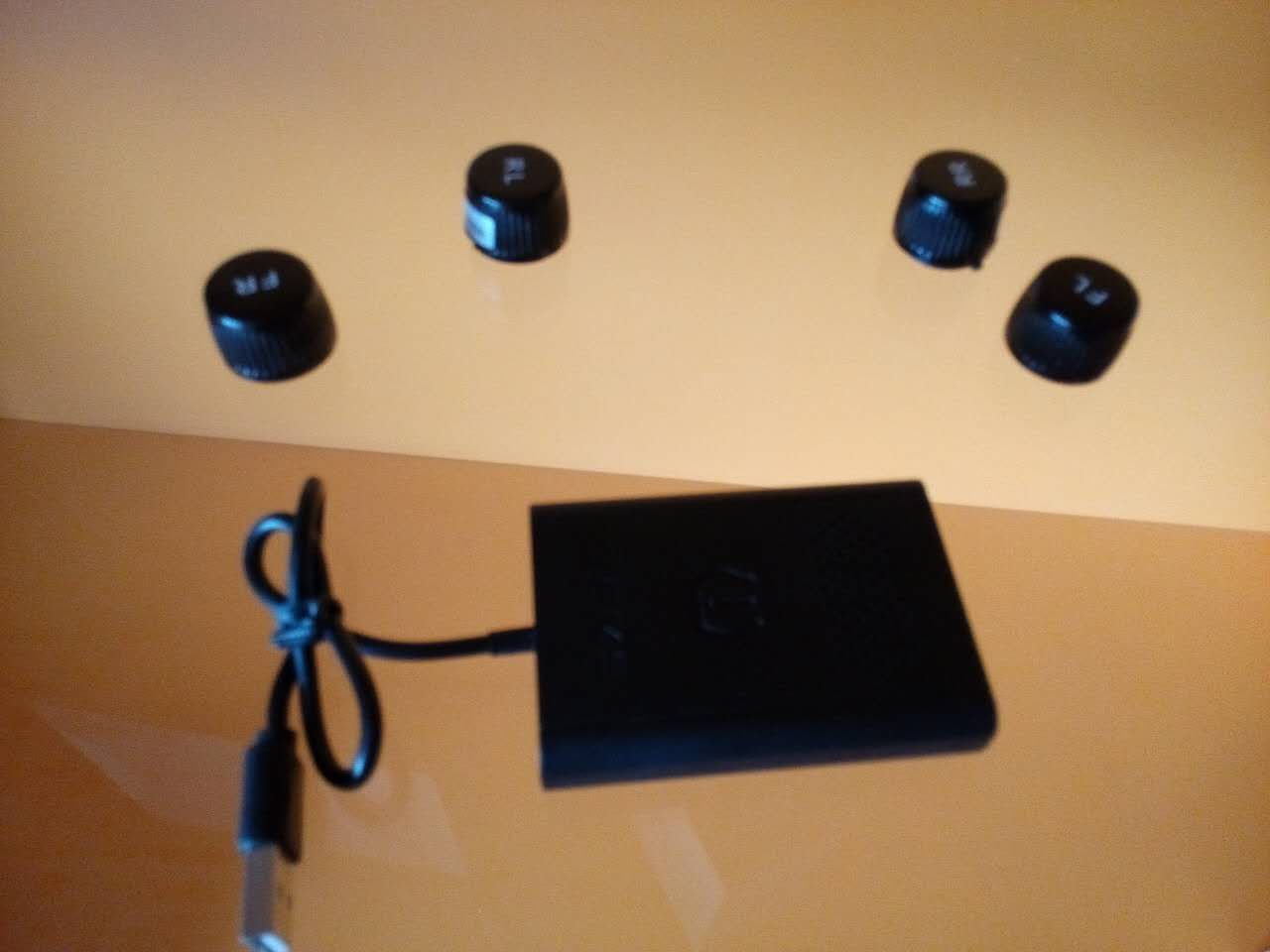

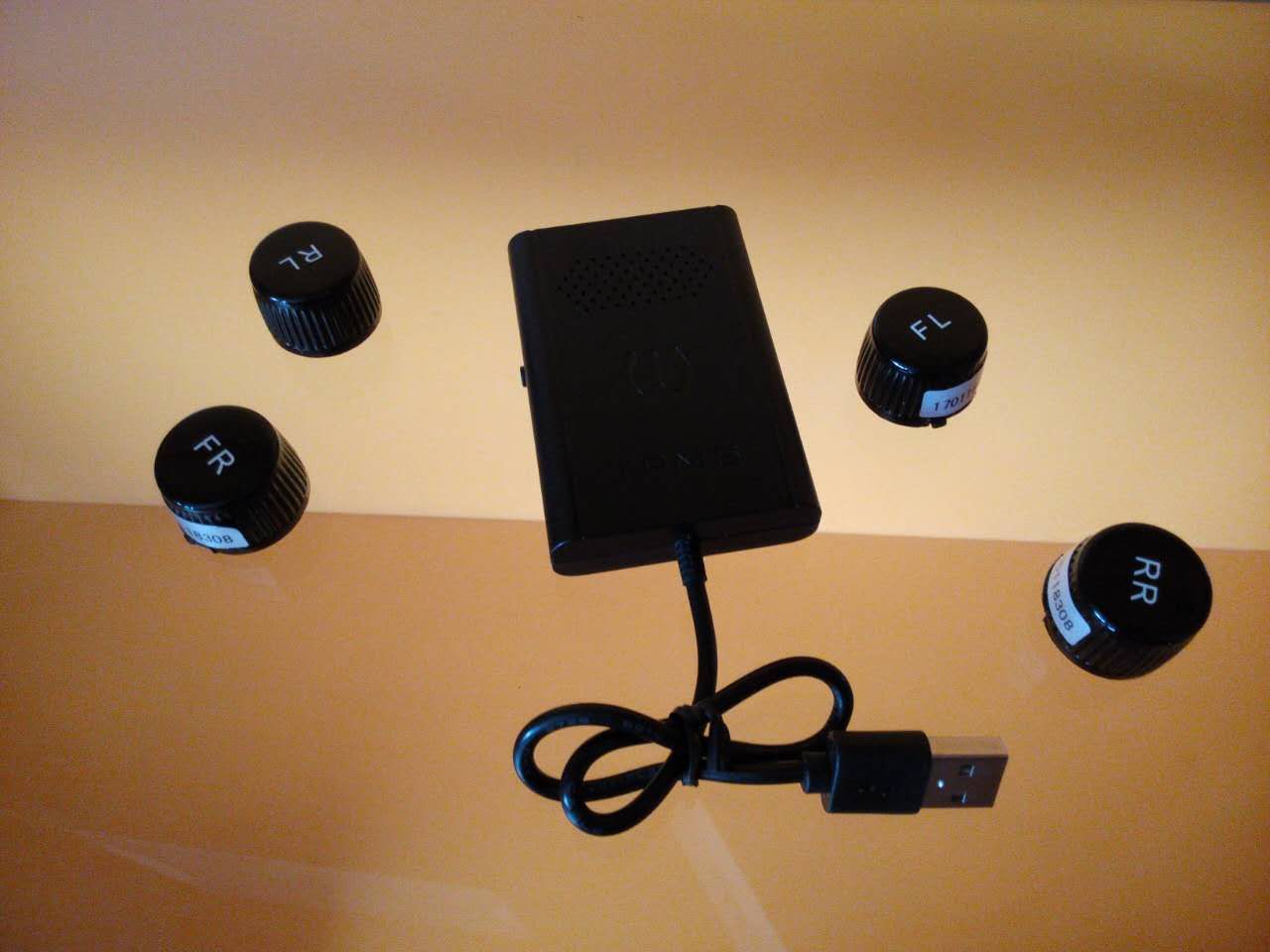

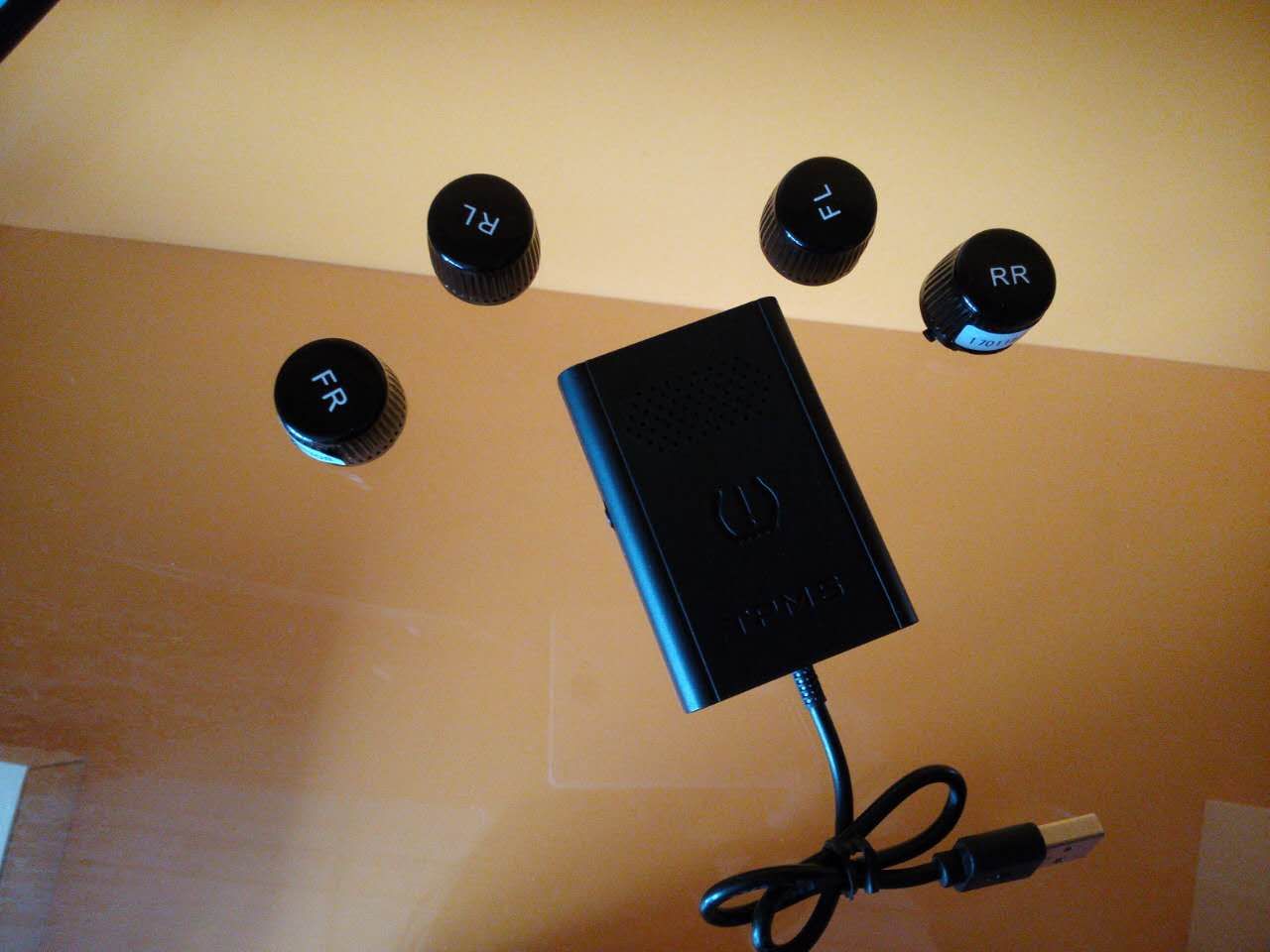

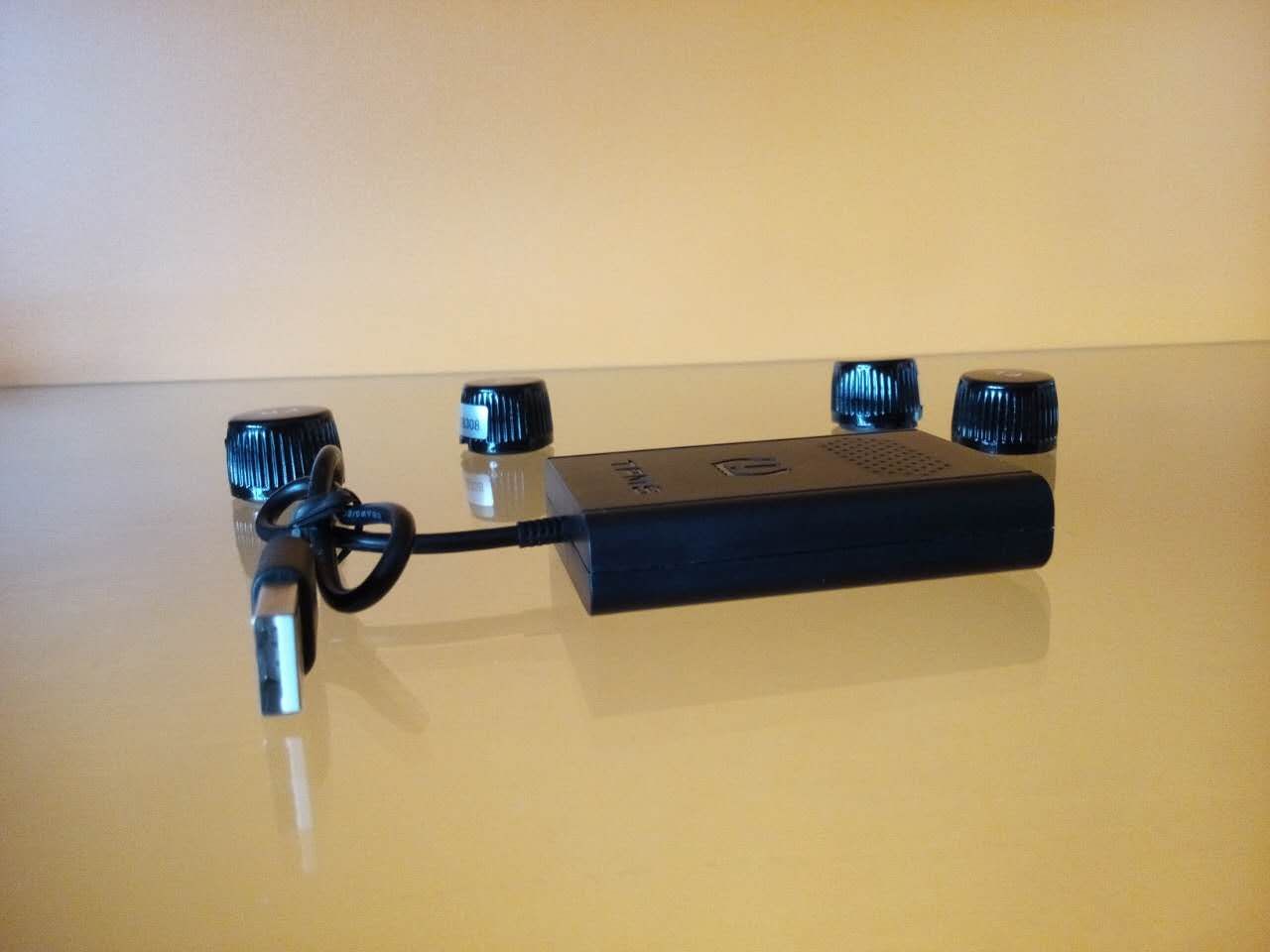

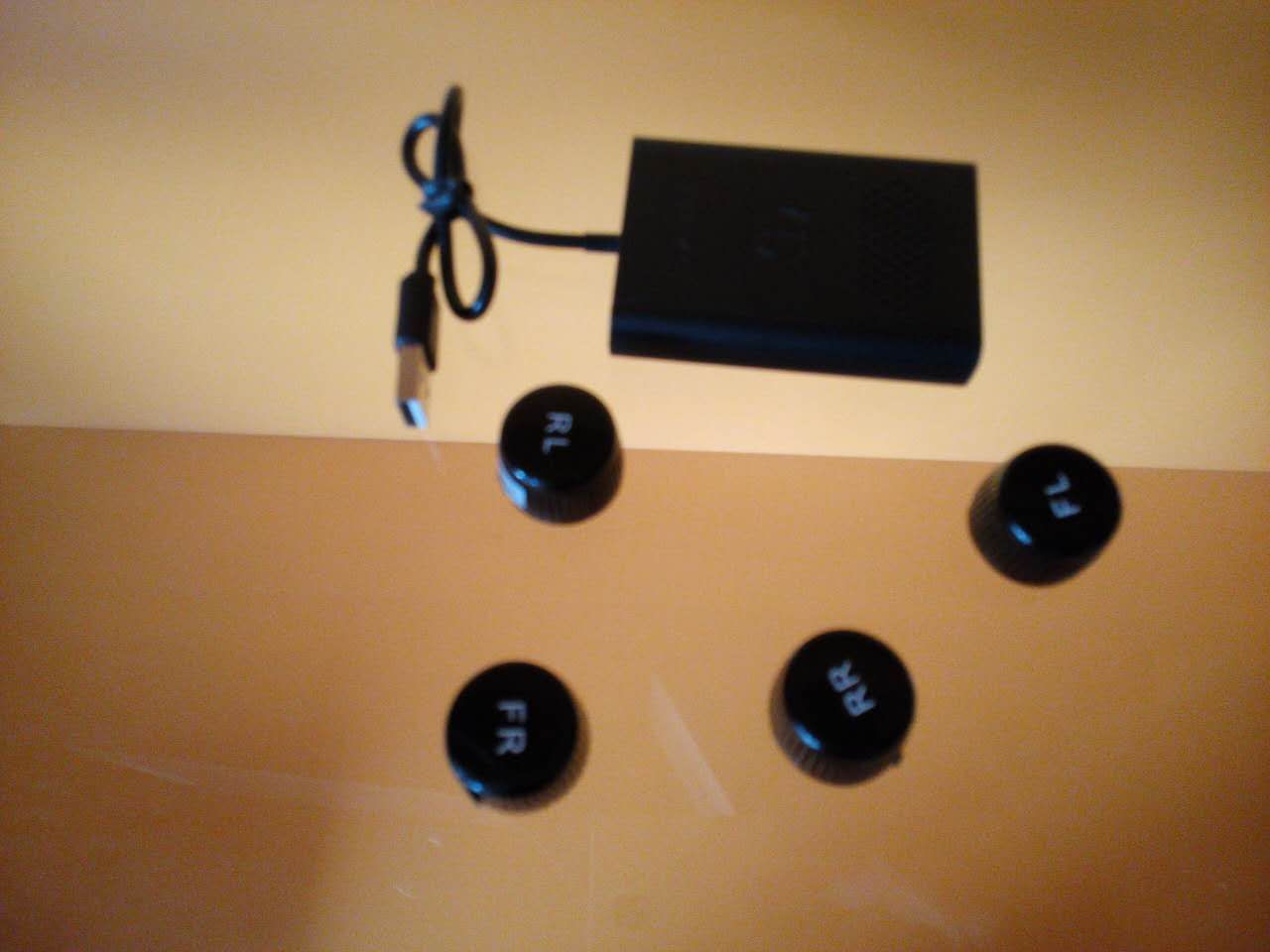

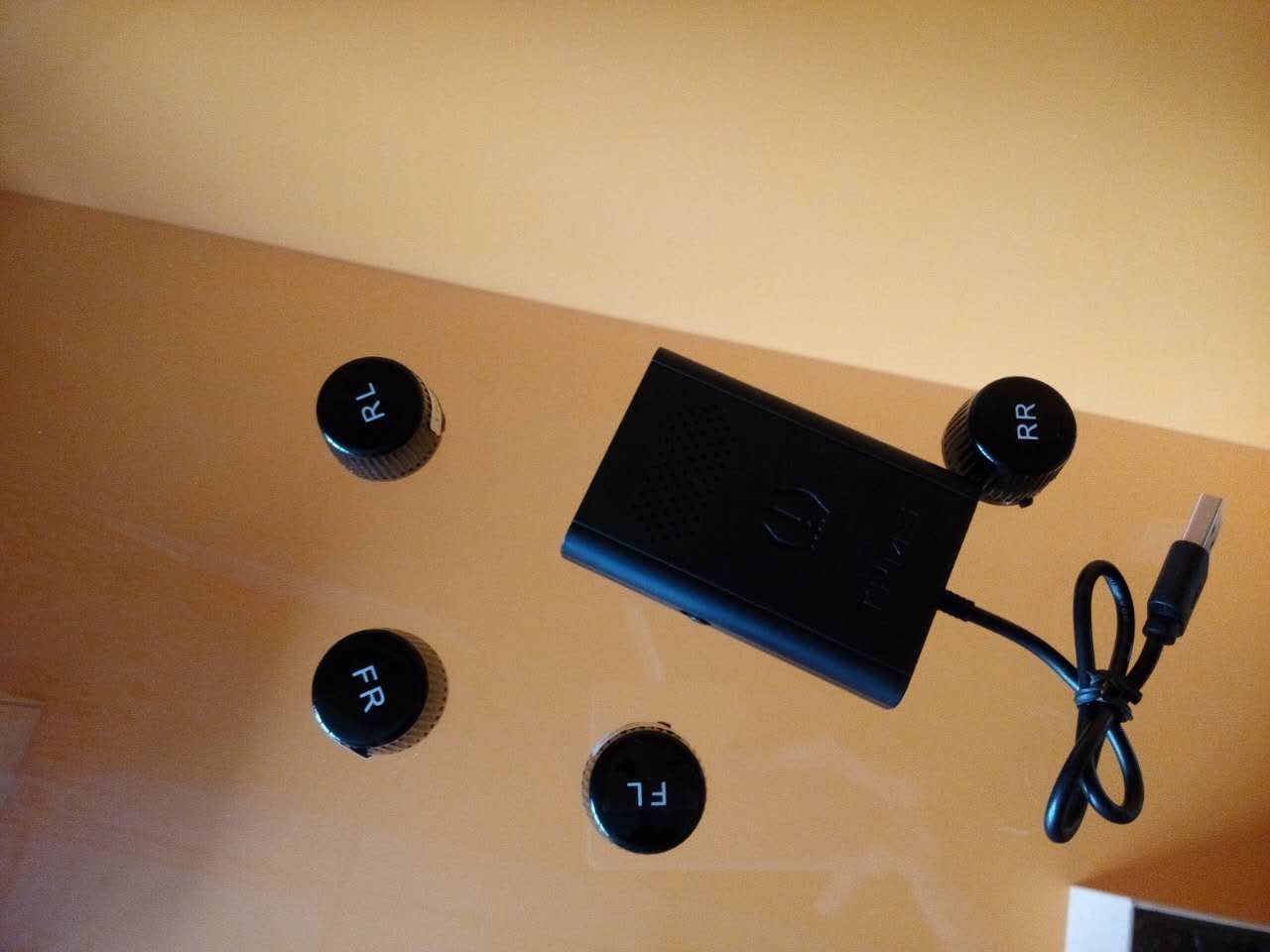

External Wireless Bluetooth TPMS with APP Display:
1.With 4 external sensor
2.Support Android and IOS system
3.Get power from the OBD socket
4.APP display
5.Selectable temperature unit(Psi,BAR)
6.Display the tire pressure and Temperature of 4 tires simultineously
7.Configurable tire pressure and temprature alert setting
Note:Only Suitable for Bluetooth version 4.0 above


Package includes:
1.1x Monitor
2.4x External Sensors
3.2x Wrench
4.1x Professional wrench
5.5x Hexagon nut
6.1x English manual
7.Original box pack

Operating Temperature	-20ºC-80ºC
Pressure Range	0-4.5Bar (65Psi)
Pressure Sensitivity	±0.1Bar(1.5Psi)
Temperature Sensitivity	±3ºC
Power	<10dbm
Frequency	433.92MHZ
Dimension	20mm*17mm (Diameter*Height)
Sensor Weight	10 g

*Search and download APP SYTTPMS in Google play or APP store for Android and ios smartphones
*The pressure / temperature alarm value be adjusted
*Forget to take Mobile phone ;This system also has the human voice to remind
*Parking air leakage, open the door immediately remind
*Tire pressure and temperature units arbitrary switching Global Universal
*Standard OBD plug and play, apply to most cars with four tires
*Visual, audible and vibration alarm

Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams
