America-Standard Spray Paint Booth

Name: America-Standard Spray Paint Booth
Brand: ibuyautoparts.com
SKU: 700121982
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 8820-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	America-standard Spray Booth
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

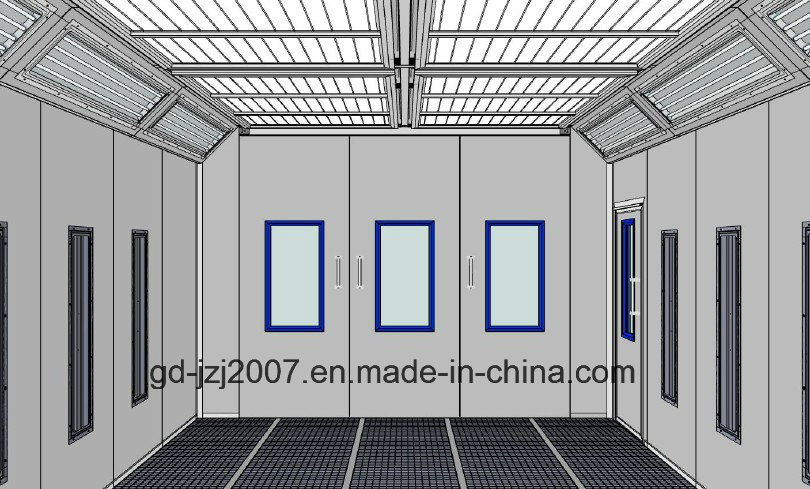

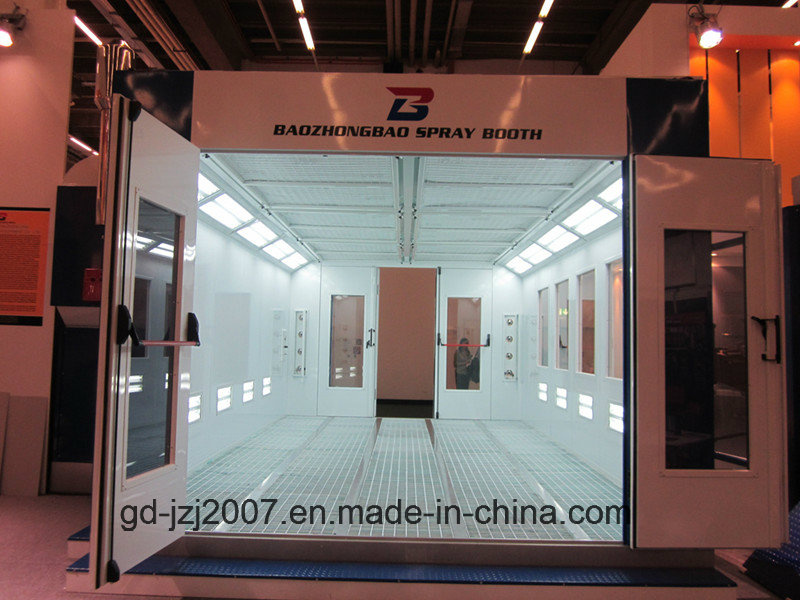

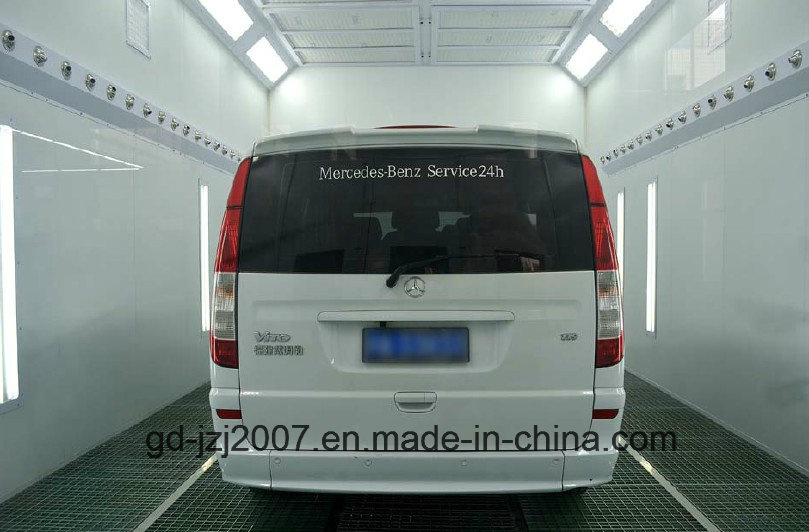

America-standard Spray Booth

Booth Dimensions
- Internal Size	6900×4000×2650 mm (L×W×H)
Foundation and Floor
- Loading Capacity of Galvanized Grating	700 kg/wheel
- Surface Area	32 m² (full grating)
- Metal Basement	350 mm Height
- Drive-in Ramps	3 Units, each 2000 mm Length
Wall and Door
- Wall Panel & Roof Panel	Double wall panels of galvanized steel sheet, thickness 50 mm, inside and outside white, insulated with rock wool (PU on option), with tongue and groove interlocking system
- 3-Folded Entrance Door With Safety Glass	1 Unit, 3000×2800 mm (W×H), Hanger-rail
- Operator's Door With Safety Glass Window	1 Unit, 800×2000 mm (W×H)
Lighting
- Ceiling Lightings	8 Units, T5 lamps, each 4×54 W, Total 1728 W, IP54
- Side Lightings	6 Units, T5 lamps, each 4×54 W, Total 1296 W, IP54
- Brightness	> 1200 Lux
Filtration
- Prefilter	Fiberglass, double filters
- Ceiling Filters	EU5 Fine Filters, 6 Units
- Floor Filters	Fiberglass, Paint-Stop-Filters
Ventilation System
- Direct Drive Motor (Fresh Air)	1×11 kW, 970 rpm, 480 V, 60 Hz, 3Ph, America Nema Motor(CSA certificate)
- Direct Drive Motor (Exhaust Air)	1×11 kW, 970 rpm, 480 V, 60 Hz, 3Ph, America Nema motor(CSA cerfiticate)
- Fan Capacity	30,000m³/h
- Air Flow Speed	+/- 0.3 m/s in an empty booth
Water based System
- Size	500×500×400 mm (L×W×H)
- Internal Recycle Fan Motor	2×1.5 kW, 1390 rpm, 208V, 60Hz, CE
- Fan Capacity	3,000m³/h
- Nozzles	2×24 pcs, in 2 sides of lightings

  Heating System - America Midco Direct Fire Heating
Control Board
  - Standard : In line with the European standard, star-delta start
  - Function :Spray & Baking switch, Light switch, Emergency stop, Failure warn, etc
- PLC :Yes
- Overpressure Manometer : Yes
- Safety Thermostat For Heating And Ventilator: Yes

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
