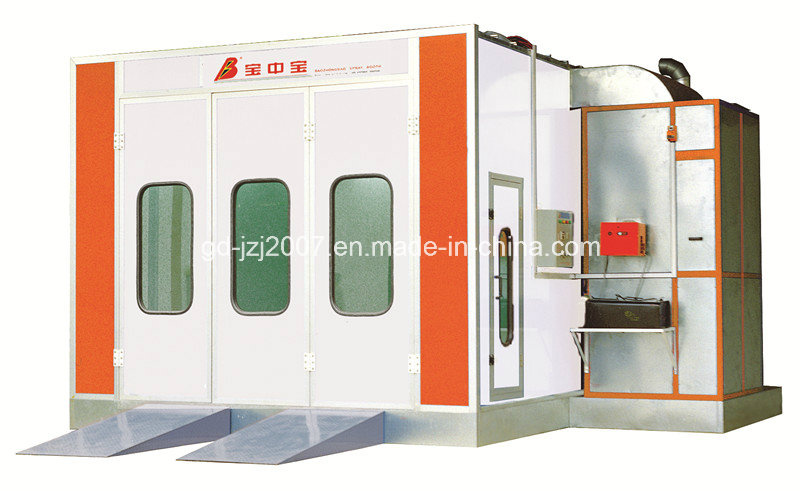

Amazing Product High Standard Car Spray Booth

Name: Amazing Product High Standard Car Spray Booth
Brand: ibuyautoparts.com
SKU: 642146965
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	US $ 3500-7650/Set
Trade Terms:	FOB,others
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

BZB-8200 Spray booth

Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2700mm(W×H);
Working door dimension: 800×2000mm(W×H);

Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel sheet.
Roof panel: galvanized sheet;
2) Basement: two lines of steel grids, three rows of steel diamond plates; with two pieces of steel ramps; the height of the basement is 280mm;

Air circulation system:
Inhaling Ventilator Model: YDW-4.5AL1, Blower Capacity: 24000m3/h , Pressure: 800Pa , Rolling Speed: 900rpm,Power: 4kw, Quantity: 2sets
One set automatic damper, 10N actuator,outlet fan for option

Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;

Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;

Heat system: RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;

Lighting system:≥800Lux
Ceiling Lights: 8Groupsx3Pcs=32Pcs x36W
Glass: all glass is clear tempered glass.

Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;

Total power: 10KW

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Function:	Painting and Baking
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
