Shinningpc Industrial Co., Ltd. >> Alumium Frame Strong Magnet Super Powered 12" PA System Speaker

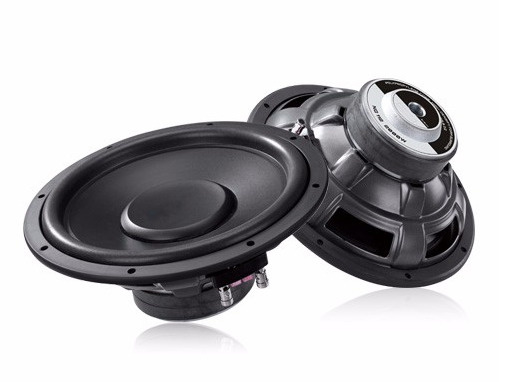

Alumium Frame Strong Magnet Super Powered 12" PA System Speaker

Alumium Frame Strong Magnet Super Powered 12
Price: US $ 15/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Nominal Diameter10 inch
Mounting Depth4.2 inch
Rated Power(RMS)200W
Nominal Impedance4 ohms
Frequency Response35-180Hz
Sensitivity(SPL/1W/1m)85±3dB
Free Air Resonance(Fo)35Hz
Suspension Compliance179.604uM/N
Moving Mass(Mms)113.373g
Mechanical "Q"9.356
Electrical"Q"(Qts)0.784
Total Speaker0.724
Equivalent Volume29.447Ltr
DC Resistance(Re)3.4 ohms
Effective Pisron Area339.795 cm2
Force Factor(BL)10.435Txm
Reference Efficiency0.16%
Voice Col50mm BASV
Magnet Mass30 oz(850g)



Type: Speaker
Speaker Design: Tweeter
Shape: Basin-shaped
Material: Aluminum
Sound Frequency: Mid Pitch
Voltage: 12V
Connection Mode: Single Wire
Current: 2.8A
Contact Point: Without Contact Point
Energy Exchanging Mechanism: Electric-ion
Shinningpc Technology Co., Ltd is a professional automotive safety systems supplier. We have our own factory and cooperated factories for producing different auto equips products. As a traditional security products manufacturer, we have a clear target that to provide the most competitive products not only in quality but also at price to clients with those mature auto equips. We would like to supply those equips to our clients exactly meet their requirements and surely we adjust our products design according to end user useful advise. And our innovation will make our enterprises as a leading company in the auto security field.

Our products mainly include vehicle mobile safety system, reversing camera system, backup systems, car security monitor, automobile stand-alone monitor, overhead mouting DVD player, headrest DVD monitor, CMOS/CCD night vision waterproof surveillance cameras, vehicle Side Camera, vehicle DVR, mobile DVRs and other auto equips...These products are widely used on cars, vehicles, buses, trucks, trailers, board etc to assure safety while driving/operating.

We concentrate on providing you with reliable equips, every product were strictly tested and inspected. For example, vibration test, waterproof test, vandal-proof test, and aging test are processed to evaluate the product performance. All of our security products come with a 12 month warranty. Also with MOQ and lead-time, we can response quickly and make it finished within 10 working days.

We are sincerely looking for long-term and mutual benefit relationship with stable partners, please don't hesitate to contact with us for further detail.

CE, LVD, RoHS certificate already.
