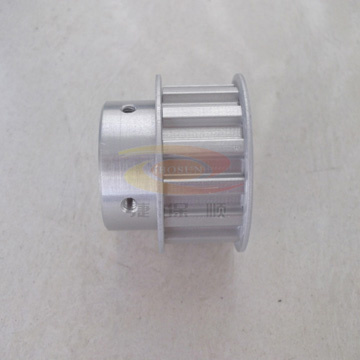

Aluminum Timing Pulley T20 Silver Timing Pulleys
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |
Aluminum Timing Pulley T20 Silver Timing Pulleys For sales,Pls check our form as below:
| Welcome To Jbosun Industrial Equipment Co.,Ltd. |
| Basic Information |
| Product Name | Aluminum Timing Pulley T20 |
| Payment Term | TT/Western Union | Brand | JBOSUN |
| Trade Term | EXW/FOB/CIF/CFR | Price | Negotiation |
| Place of Origin | Shenzhen,China | Productivity | 100000pcs/Month |
| MOQ | 2pcs | Package | Exporter carton |
| Delivery time | 2~90 days according to your quantity. |
| Additional Information |
| Model | T20 | Material | Aluminium |
| Belt Nominal Width | 20-10mm | Pulley Width | 22-103mm |
| Step/Hub | as your request | Flage diameter | as standard |
| Flange thickness | 1.5-3.0mm | No. of Tooth | 18-120 |
| Surface Treatment | anodic oxidation/black of oxidation/nickelage/zincing/chromium plating. |
| Product Description |
| other type timing pulley parameters for your reference: |
| Belt nominal width | Pulley width | Step/hub | Flange diameter | Flange thickness | tooth | Type | Model |
| 3.048mm~25.4mm | 4mm~27mm |
as your request |
as standard | 1.0mm~3.0mm | 15~200 | MXL |
T
Type |
| 4.826mm~50.8mm | 6mm~52mm | 1.0mm~3.0mm | 10~200 | XL |
| 9.398mm~76.2mm | 11mm~79mm | 1.5mm~3.0mm | 10~200 | L |
| 9.398mm~101.6mm | 11mm~105mm | 1.0mm~3.0mm | 10~200 | H |
| 19.05mm~127mm | 21mm~131mm | 1.0mm~3.0mm | 18~120 | XH |
| 25.4mm~152.4mm | 29mm~158mm | 2.0mm~3.0mm | 18~120 | XXH |
| 3mm-30mm | 4mm-32mm | 1.0mm~3.0mm | 12~200 | T2.5 |
| 4mm~50mm | 5mm-52mm | 1.0mm~3.0mm | 10~300 | T5 |
| 10mm~100mm | 11mm~102mm | 1.5mm~3.0mm | 12~200 | T10 |
| 20mm~100mm | 22mm~103mm | 1.5mm~3.0mm | 18~120 | T20 |
| 6mm~50mm | 7mm~52mm | 1.0mm~3.0mm | 14~300 | AT5 |
| 10mm~100mm | 11mm~102mm | 1.5mm~3.0mm | 12~200 | AT10 |
| 20mm~100mm | 22mm~103mm | 1.5mm~3.0mm | 18~120 | AT20 |
| 3mm-30mm | 4mm~32mm | 1.5mm~3.0mm | 15~200 | 2M | Arc Type
|
| 3mm-30mm | 4mm~32mm | 1.0mm~3.0mm | 12~250 | 3M |
| 10mm~50mm | 11mm~52mm | 1.0mm~3.0mm | 14~300 | 5M |
| 10mm~85mm | 12mm-87mm | 1.0mm~3.0mm | 16~200 | 8M |
| 20mm~115mm | 22mm-119mm | 1.5mm~3.0mm | 18~200 | 14M |
| 3mm-30mm | 4mm~32mm | 1.0mm~3.0mm | 15~200 | S2M |
| 3mm-30mm | 4mm~32mm | 1.0mm~3.0mm | 12~250 | S3M |
| 10mm~50mm | 11mm~52mm | 1.0mm~3.0mm | 14~300 | S5M |
| 10mm~85mm | 12mm-87mm | 1.5mm~3.0mm | 16~200 | S8M |
| 3mm-30mm | 4mm~32mm | 1.0mm~3.0mm | 15~200 | 2GT |
| 3mm-30mm | 4mm~32mm | 1.0mm~3.0mm | 12~250 | 3GT |
| 10mm~50mm | 11mm~52mm | 1.0mm~3.0mm | 14~300 | 5GT |
| 10mm~85mm | 12mm~87mm | 1.0mm~3.0mm | 10~200 | 8MGT |
| |
| Applications: |
| CNC machine/textile/print/food packaging/electrical appliance/communication cable/instrumentation/tobacco and so on. |
| Advantages: |
| 1.Quick and easy to install, save time efficient can save 3-5 times working hours, no additional hole keyway; |
| 2.Physical automatic locking collar design, avoid recessive damage tolerance, clearance or tolerance is larger; |
| 3.Good rust resistance on the surface, the black salt spray antirust processing; |
| 4.Saving and efficient, effectively avoid the traditional damage tolerance and recessive; |
| 5.High accuracy of dynamic torsion, don't worry it will loosen or transmission precision and clearance problems; |
| 6.After tempering finishing grinding processing, bright and clean, good elastic energy. |
| operating principle: |
Synchronous wheel drive is from the inside of a surface with the spacing ring belt and have appropriate tooth of pulley,
runtime, toothed with pulleys tooth meshing transfer movement and power, it is a combination of merits of a belt drive,
chain transmission gear drive the new belt transmission. |
|
|
| Install Attention: | | | | | | | |
Reduce the center distance of the pulley, if there is a tension wheel should be loosened, mount tape again after adjusting
the center distance. For fixed transmission center distance, should first remove the pulley, the belt again after loaded on
the belt wheel fixed on put pulley to the shaft |
|
|
| About US |
| Company Name | Shenzhen Jbosun Industrial Equipment Co.,Ltd. |
| Year of establish | 2007 | Business Type | Manufacturer/Exporter | | |
| Annual Value | USD 10 million~50 million | Employee | 50-100 people |
| Factory Square | 3000 | Export Marketing | Worldwide |
| Website | http://www.jbosun.com | | | | | |
| Address | No.233 Xixiang Avenue, Baoan District, Shenzhen, Guangdong, China (518102). |
| Contact US |
| Contact | Miss Winnie |
| | |
| | |
| | |
| |
| We promise that |
--Good quality, Reasonable price, Best services.
|
| --Large production capacity with fast delivery and quality assurance. |
| --Rich experience in producing timing pulley and timing belt. |
| We are looking forward to your enquiry!!! Thank you!!! |
|
| Prod Model: |
T20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
T20 |
| Color: |
Silver |
| Type: |
Timing Pulley |
| Certification: |
SGS, RoHS |
Jbosun Industrial Equipment Co., Ltd, was founded in 2007, and located in a coastal cosmopolis---Shenzhen, with its convenient transportation facilities. Jbosun specializes in producing synchronous belts and synchronous pulley, and we have devoted ourselves to the research and development of Chinese transmission products, we spare no effort to promote the progress of the transmission technology, integrated design, research, production, sales and after-sales service. We have become a professional manufacturer in domestic market due to our large-scale production ability, great variety, efficient delivery and excellent quality as well.
As one of the most excellent synchronous belts suppliers of Asia, Jbosun can provide you all sorts of belts, industrial belts, transmission belt, rubber synchronous belts, PU synchronous belts, double-sided synchronous belts, special synchronous belts (blocks, sponge, PU glue, PVC decorative pattern, rubber and all sorts of material can be added on the surface of belt), automotive belt, ribbed V-belts, and matching aluminum synchronous pulley, steel synchronous pulley, copper synchronous pulley series. Also we are able to process according to customer's blueprint.
Our products are widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable, and other industries of mechanical transmission.
Our policy is: Practical and self-motivated, strict and united, synchronous and together lead to brilliant future. Your satisfaction is Jbosun's pursuit, we sincerely hope that friends from all walks of life cooperate and negotiate business with us, we will present you our best service.
Company motto: People oriented, Quality first, Customer foremost, and win-win situation created.
