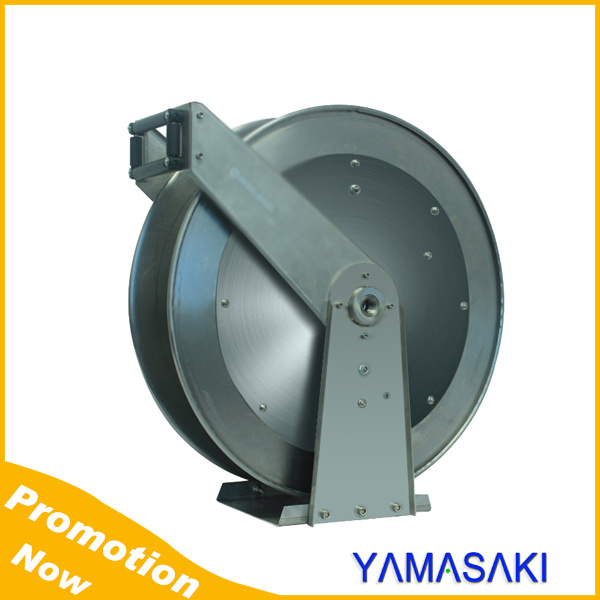

Industrial-grade stainless steel reel
Used for cleaning the environment, clean water transportation, chemical raw materials transport and bottling.
Series SS reels are made from all imported stainless steel.
For sanitary or harsh environments, specifically applied in
specific regions highly corrosive offshore, chemical, chemistry,
etc., as well as a high level of health and safety requirements
for the food industry environment, used for environmental cleaning,
clean water delivery, and other chemical raw materials transport and filling.
Fluid path: 1/4", 5/16", 3/8", 1/2",3/4",1"
The Specifications:
Appilication | Pressure Mpa(psi) | Hose inner dia. mm (In) | Hose length m (ft) | Reel inlet | Reek outlet | Pin No. (with hose) | Pin No. (without hose) |
Air/Water/Anti-freeze | 2(300) | 6 (1/4) | 15(50) | 1/2" | 1/4" | - | SS300020100 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 11(35) | 1/2" | 5/16" | - | SS300020200 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 10(33) | 1/2" | 3/8" | - | SS300020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 8(25) | 1/2" | 1/2" | - | SS300020400 |
Oil/Water | 19(2780) | 6 (1/4) | 12(40) | M20×1.5 | M14×1.5 | - | SS300190100 |
Oil/Water | 15(2280) | 10(3/8) | 10(33) | M20×1.5 | M18×1.5 | - | SS300150300 |
Oil/Water | 14(2030) | 12(1/2) | 8(25) | M20×1.5 | M22×1.5 | - | SS300140400 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 22(72) | 1/2" | 5/16" | - | SS400020200 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 20(65) | 1/2" | 3/8" | - | SS400020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 15(50) | 1/2" | 1/2" | - | SS400020400 |
Air/Water/Anti-freeze | 2(300) | 19(3/4) | 8(25) | 3/4" | 3/4" | - | SS400020600 |
Oil/Water | 19(2780) | 6 (1/4) | 15(50) | M22×1.5 | M14×1.5 | - | SS400190100 |
Oil/Water | 15(2280) | 10(3/8) | 18(60) | M22×1.5 | M18×1.5 | - | SS400150300 |
Oil/Water | 14(2030) | 12(1/2) | 15(50) | M22×1.5 | M22×1.5 | - | SS400140400 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 30(100) | 1/2" | 3/8" | - | SS600020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 30(100) | 1/2" | 1/2" | - | SS600020400 |
Air/Water/Anti-freeze | 2(300) | 19(3/4) | 25(82) | 3/4" | 3/4" | - | SS600020600 |
Air/Water/Anti-freeze | 2(300) | 25(1) | 15(50) | 1" | 1" | - | SS600020700 |
Oil/Water | 14(2030) | 12(1/2) | 23(75) | M22×1.5 | M22×1.5 | - | SS600140400 |
Oil/Water | 8(1160) | 19(3/4) | 15(50) | M27×1.5 | M27×1.5 | - | SS600080600 |
