Product Description
Features:

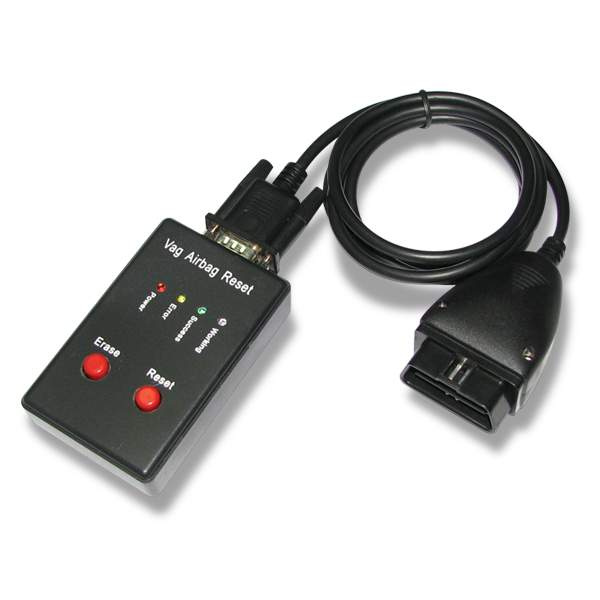

How Audi-VW Airbag Reset Toot works: All Audi-VW airbag systems after car crash and airbag
Deployment are locked. Even after small accident Airbag sensor will write in internal memory special
Error message "crash data stored" and after you need to exchange very expensive sensor to new one.
With our Audi-VW Airbag Reset Tool you can reset and repair airbag computer in your office in 1
Minute. No need to remove airbag sensor from the car. Fully automatic sensor type recognizing.
Audi-VW Airbag Reset Tool works without additional computer and thought car OBD II connector can
Erase airbag sensor "crash data" or only fault memory.
Workable Model:
Works with all VW/Audi airbag sensors to year 2003:
Audi A4, A6, A8 1994-1997:
Airbag V BOSCH:
8A0 959 655 C (Bosch 0 285 001 038)
8A0 959 655 K (Bosch 0 285 001 155)
8A0 959 655 K (Bosch 0 285 001 151)
Crash data erase & Fault erase
Audi A3, A4, A6, A8 <1999:
Airbag 7 BOSCH:
4B0 959 655 C
4B0 959 655 J
4D0 959 655 C
4D0 959 655 H
8D0 959 655 C
8D0 959 655 L
8L0 959 655 F
(all Bosch Airbag 7)
Crash data erase & Fault erase
Audi A2, A3, A4, A6, A8 - 1999:
Airbag 8 BOSCH:
Crash data erase & Fault erase (can erase "Controller Malfunction");
VW - Golf III, Passat B4, Sharan:
1J0 909 603 Siemens
Crash data erase & Fault erase
VW - Golf IV, Passat B5:
Siemens:
1J0 909 609
1J0 909 607
Crash data erase & Fault erase
VW - Golf IV, Passat B5:
Bosch:
3B0 959 655 B
8L0 959 655 A
Crash data erase & Fault erase
VW - Golf IV, Passat B5, Sharan:
Siemens:
6Q0 909 605 A
6Q0 909 605 B
Crash data erase & Fault erase
VW - Golf IV, Passat B5, Sharan:
Siemens:
1C0 909 605 C
1C0 909 605 F
1C0 909 605 H
6Q0 909 605 C
Crash data erase & Fault erase
VW - Passat B6 2001-2004:
New Siemens VW5, VW51, VW61
Crash data erase & Fault erase
Skoda, Seat all Siemens
Crash data erase & Fault erase
Now support new Audi airbag sensors 1999-2002 DTC65535 (Controller Malfunction) erase by OBDII
Connector. Works with all sensor types:
8L0 959 655 G (Bosch 0 285 001 352) and others with HC12 processor
4D0 959 655 J (Bosch 0 285 001 266)
8D0 959 655 J (Bosch 0 285 001 276)
8D0 959 655 F (Bosch 0 285 001 270)
8D0 959 655 M and others with National CR16 (44 PLCC)
Operating Instructions
Very simple user instruction: Connect this tool to Audi/VW car OBD II connector. Right red button is
For airbag "crash data" erase. Push this button once and wait: Yellow light start to flash and after
15 second green light inform you that "crash data" is erased. Red light set ON if erasing is not
Successful. Left yellow button is for erase airbag "fault memory" or "errors". If airbag warning
Lamp go OFF and immediately ON, evaluate airbag "error memory" using any VW-Audi diagnostic
Equipment and repair.
For the product Manual, please to download the PDF file.
