Ningbo VPC Pneumatic Co., Ltd. >> Air Suspension 8PCS 250psi DC12V Brass Valves 3/8" NPT Electric Solenoid

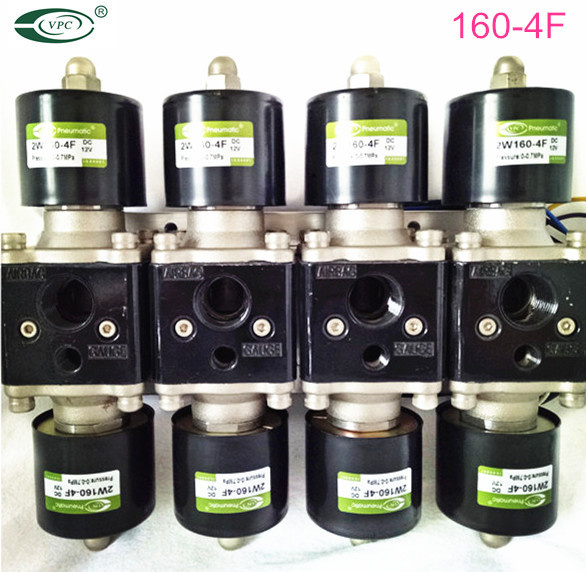

Air Suspension 8PCS 250psi DC12V Brass Valves 3/8" NPT Electric Solenoid

Air Suspension 8PCS 250psi DC12V Brass Valves 3/8
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

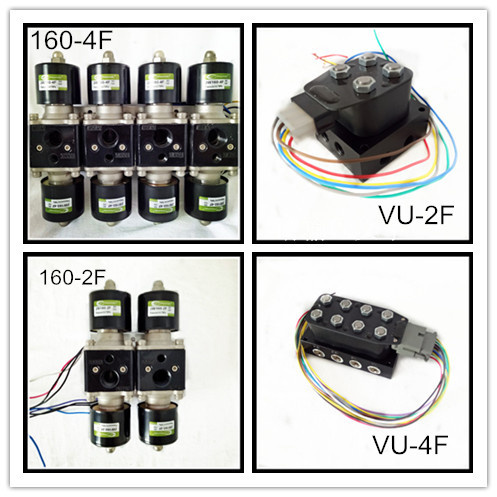

NPT 1/4" VU4 4-Corner Solenoid Valve Unit Air Suspension Manifold is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. It's more smart than our previous

manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.
Fast Air Ride Suspension Brass Valve Mount Kit


Compatiable Suspension Type4-Corner Full Air Suspension
Voltage Requirements  10.5-16 Volts
Current Requirements 1.1 Amps (for each of the (8) Valves)
Connectors IP67 certified (immersion up to 3 ft)
Fitting Size 3/8" D.O.T. / P.T.C (x 8), 1/2" NPT (x 4)
No. of Inlet Ports 2
No. of Exhaust Ports2
Max Operating Pressure 200Psi
Cv Flow Factor 0.33
Average Adjustment Time 2.2 Seconds (from 10% to 50% of travel)

1. wiring harness for easy installation

2. 3/8" press-fit D.O.T Fittings eliminate pipe threads for 100% leak free operation

3. High Pressure Rated for operation up to 200psi

4. Anodized Aluminum Manifold to prevent corrosion

5. 100% weather resistant for harsh under vehicle environments

6. For use with any brand of controller or switches



Prod Model: 2W160-10
VPC Pneumatic

Pneumatics is changing air that is wherever and infinitely available in the world to power energy. You might seldom see its actual applications, but currently pneumatic equipment are used in production and conveyer lines in almost all industries.

VPC ® Company, which was founded in 1985, as a leading manufacturer, is dedicated to serve the automation and labor saving requirements with our pneumatic product range.

Our goal is to preserve our customers through the complete satisfaction of their specific requirements, having in our mind only to pursue the continuous improvement in the fields of productive efficiency and cost saving. Our professional skills and abundant resources will continue to be the great source of our strength.

Above, coupled with close connection with customers' requirements, enables us to manufacture and market good value, high quality products and to operate successfully around the world. As natural result of such policy, VPC ® Has been recognized to be in compliance with the requirements as provided for the quality system standard ISO 9001: 2000, as well as the CE Certificate, which is the first pneumatic enterprise who get both certificates in Ningbo, China.

VPC ® Built an excellent sales team is taking advantage of a widespread net of local and foreign distributors in constant expansion in the main worldwide strategic areas. We believe the diversity of our product line, and the sincere work of our staff will make VPC ® To be world class performance leaders of pneumatic products.
