Zhejiang Maide Machine Co., Ltd. >> Air Conditioner Compressor (MD-40)

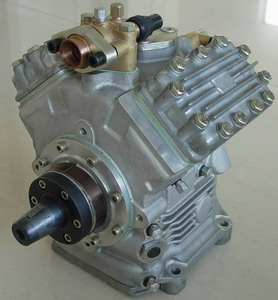

Air Conditioner Compressor (MD-40)

Air Conditioner Compressor (MD-40)
Price: Negotiable
Min Order: 1
Prod Model: MD-40

Product Description

Features:
1) Special pressure balance by pass prevent lube oil into inside,Efficiency much
better
3) Patented infiltrated ceramic piston ring without gap at joint polongs the service
life
4) Unitary body cast by Aluminum Alloy with optimum heat transfer


Specifications:
Specifications dim MD40/560 MD40/655
Charateristics
Number of cylinders 4 4
Swept volume cm3 555 650
Theoretical displacement at 1450 rpm m3/h 48.3 56.6
Lubrication
Forced feed lubrication zahnradpumpe*/gear pump*
Oil brand fuchs dea reniso triton se 55
Oil charge ltr. 2.0 2.0
Weight
Weight, incl. Oil charge kg 32 31
Operative range
Max. Speed, n design 1/min 3000 3000
Max. Speed, k design 1/min 3500 3500
Min. Speed 1/min 500 500
Max. Adm. Operating overpressure hp bar 25 25
Max. Adm. Operating overpressure lp bar 19 19
Max. Admissbble discharge end temperature oc +140 +140
Maide is biggest manufacturer in China on fuel dispenser spare parts, bulk positive displacement meter, PEI member, and our team specializes in manufacturing fueling Nozzle, Gear Pump, Vane Pump, Flow Meter, Sensor, etc, for fueling dispenser in Zhejiang, China and obtained ISO 9001 certificate in 1998, with UL certificated, ATEX certificated

We can supply you our products with first-class quality at very favorite price. Our products are durable, reliable and economical and have been exported almost all over the worlds.

Maide have more than 300 worker, and each year, we manufactured more than 300000PCS nozzle, 40000 fuel dispenser pump and 50000 fuel dispenser meter, 4000PCS bulk PD meter and vane pump.

The company is a comprehensive enterprise specialized in producing fuelling equipments and we have manufactured spare parts of fuelling dispensers for several decades. We have much sophisticated testing equipment and many experienced engineers. Our tenet is developing by Quality and Technology. We absorb the international advanced technology and improve the quality of Products through new technics and precise test. Our products are reliable, stable and accurate, such as combined vane pumps, combined gear pumps, flowmeters, and self shut-off nozzles.
