Shinningpc Industrial Co., Ltd. >> Adblue Emulator for Scania Euro6 Trucks Nox Sensor Support DPF System

Adblue Emulator for Scania Euro6 Trucks Nox Sensor Support DPF System

Adblue Emulator for Scania Euro6 Trucks Nox Sensor Support DPF System
Price: US $ 40/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Avoid adblue system errors
Certification: RoHS
Update Method: by Internet

Product Description

Adblue Emulator for Scania Euro6 trucks NOX sensor Support DPF system

for Volvo Euro 6  Trucks

for MAN  Euro6 trucks:

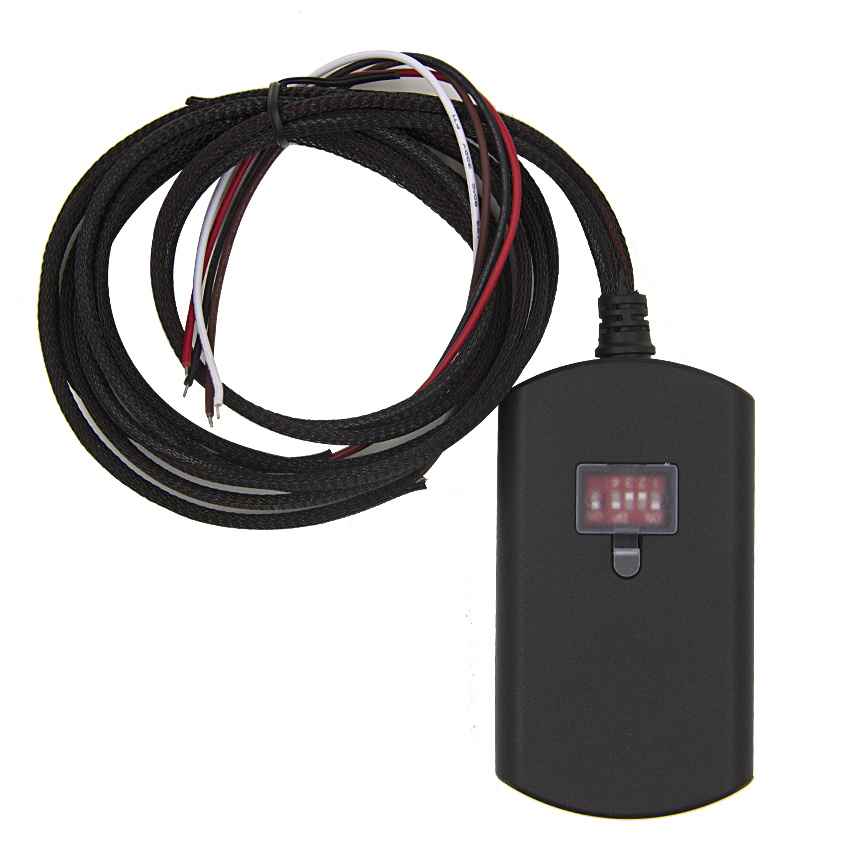

Adblue emulator 9in1:

SQU OF68 IMMO emulator:

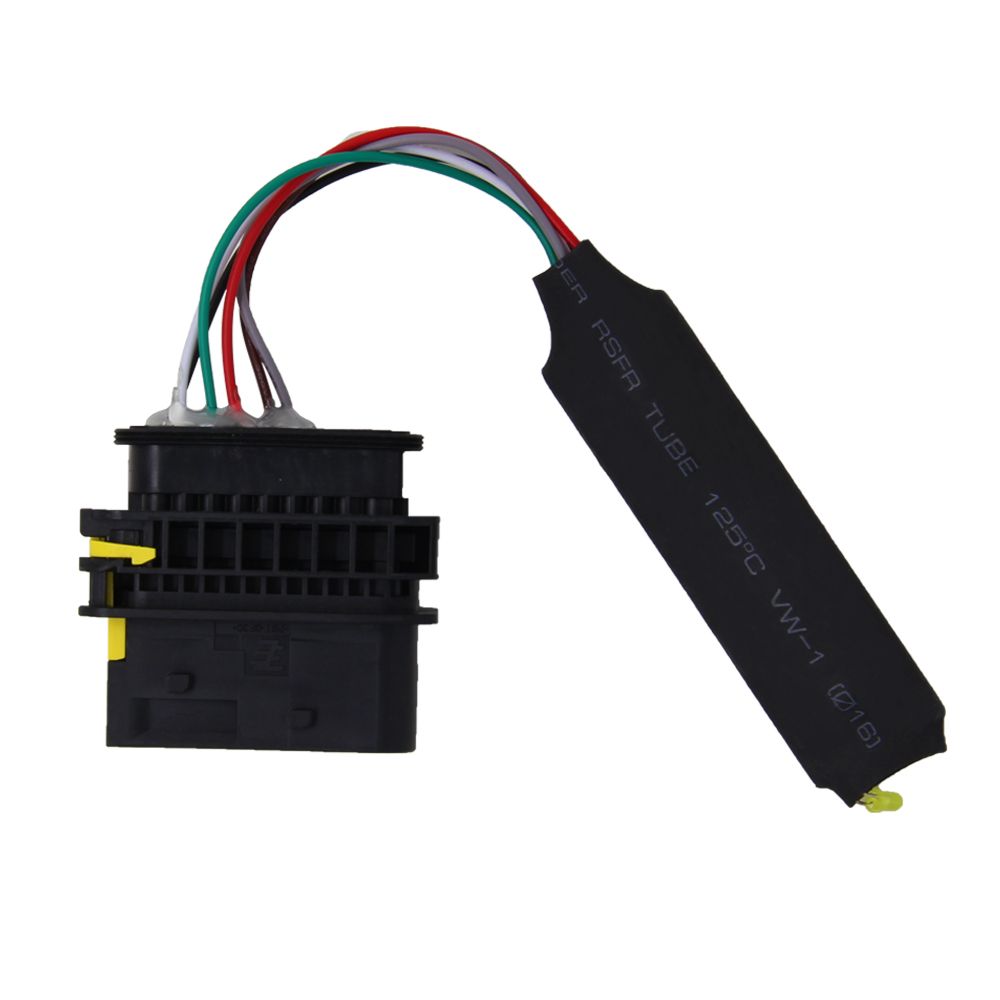

Adblue Emulator for Scania Euro6 trucks NOX sensor Support DPF system





Adblue Emulator for Scania Euro6 , not need to be leaming, you have to mount emulator in the plug of the EEC(AdBlue)ECU(in the pink one),Yon can find EEC ecu ta the center of the vehicle frame.Two big plugs(one is pink) in this manual you will find pin mumber of the EEC plug,also colours cables of EEC and Emulator.



Adblue Emulator for Scania Euro6:

Emulator for Scania Euro 6 not need to be leaming

You have to mount emulator in the plug of the EEC(AdBlue)ECU(in the pink one),Yon can find EEC ecu ta the center of the vehicle frame.Two big plugs(one is pink)

in this manual you will find pin mumber of the EEC plug,also colours cables of EEC and Emulator.



Connect wires of the emulator with this table as reference:

Red(Vcc)-PIN 12 (green) Cut the cable after connect emulator to truck side

Black (GND)-PIN 4 (fat black)

Yellow (CAN H)-PIN 22 (orange)

Green (CAN l)-PIN 19 (fat black)

Shinningpc Technology Co., Ltd is a professional automotive safety systems supplier. We have our own factory and cooperated factories for producing different auto equips products. As a traditional security products manufacturer, we have a clear target that to provide the most competitive products not only in quality but also at price to clients with those mature auto equips. We would like to supply those equips to our clients exactly meet their requirements and surely we adjust our products design according to end user useful advise. And our innovation will make our enterprises as a leading company in the auto security field.

Our products mainly include vehicle mobile safety system, reversing camera system, backup systems, car security monitor, automobile stand-alone monitor, overhead mouting DVD player, headrest DVD monitor, CMOS/CCD night vision waterproof surveillance cameras, vehicle Side Camera, vehicle DVR, mobile DVRs and other auto equips...These products are widely used on cars, vehicles, buses, trucks, trailers, board etc to assure safety while driving/operating.

We concentrate on providing you with reliable equips, every product were strictly tested and inspected. For example, vibration test, waterproof test, vandal-proof test, and aging test are processed to evaluate the product performance. All of our security products come with a 12 month warranty. Also with MOQ and lead-time, we can response quickly and make it finished within 10 working days.

We are sincerely looking for long-term and mutual benefit relationship with stable partners, please don't hesitate to contact with us for further detail.

CE, LVD, RoHS certificate already.
