A9423200121 Rubber Air Spring Suspension 4390np01

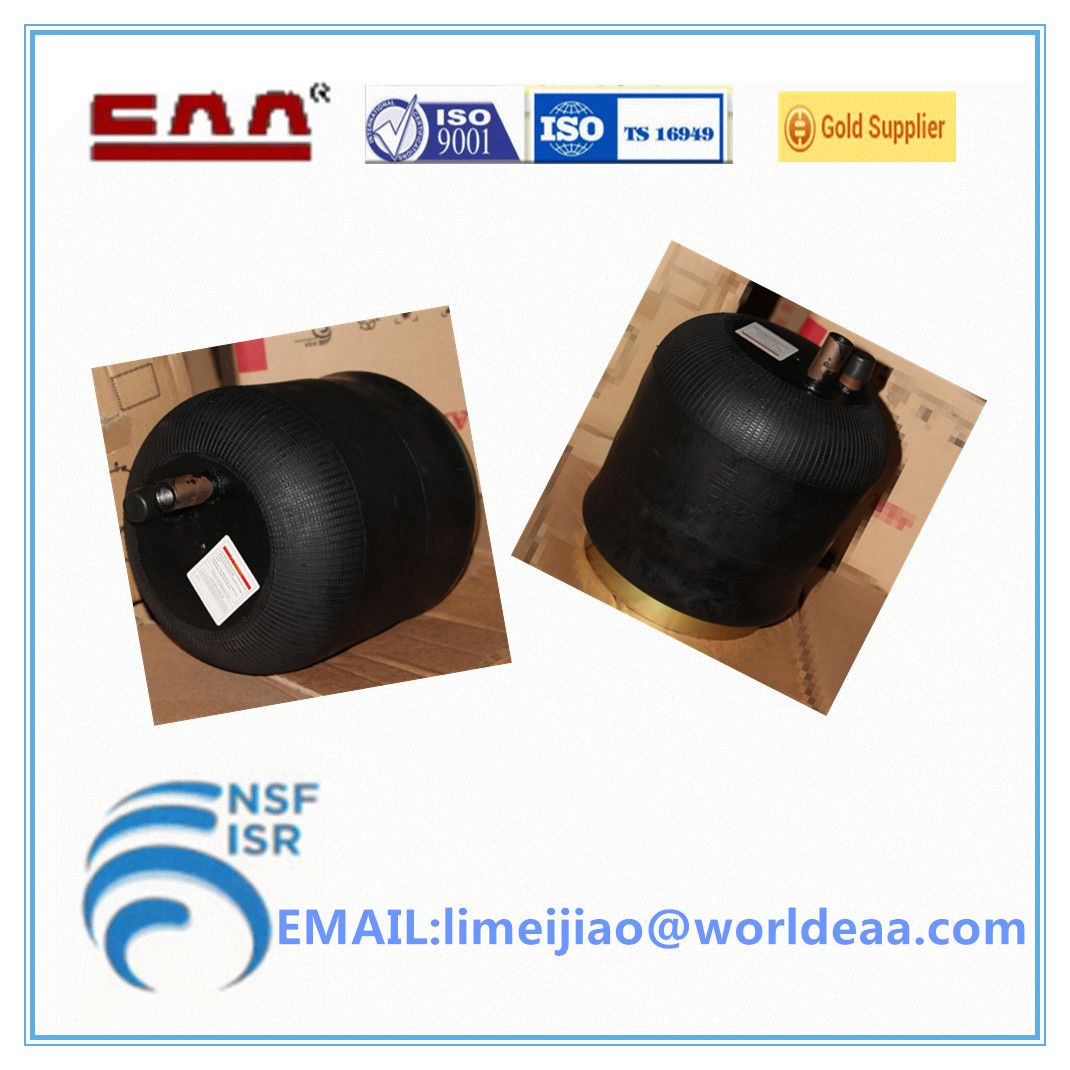

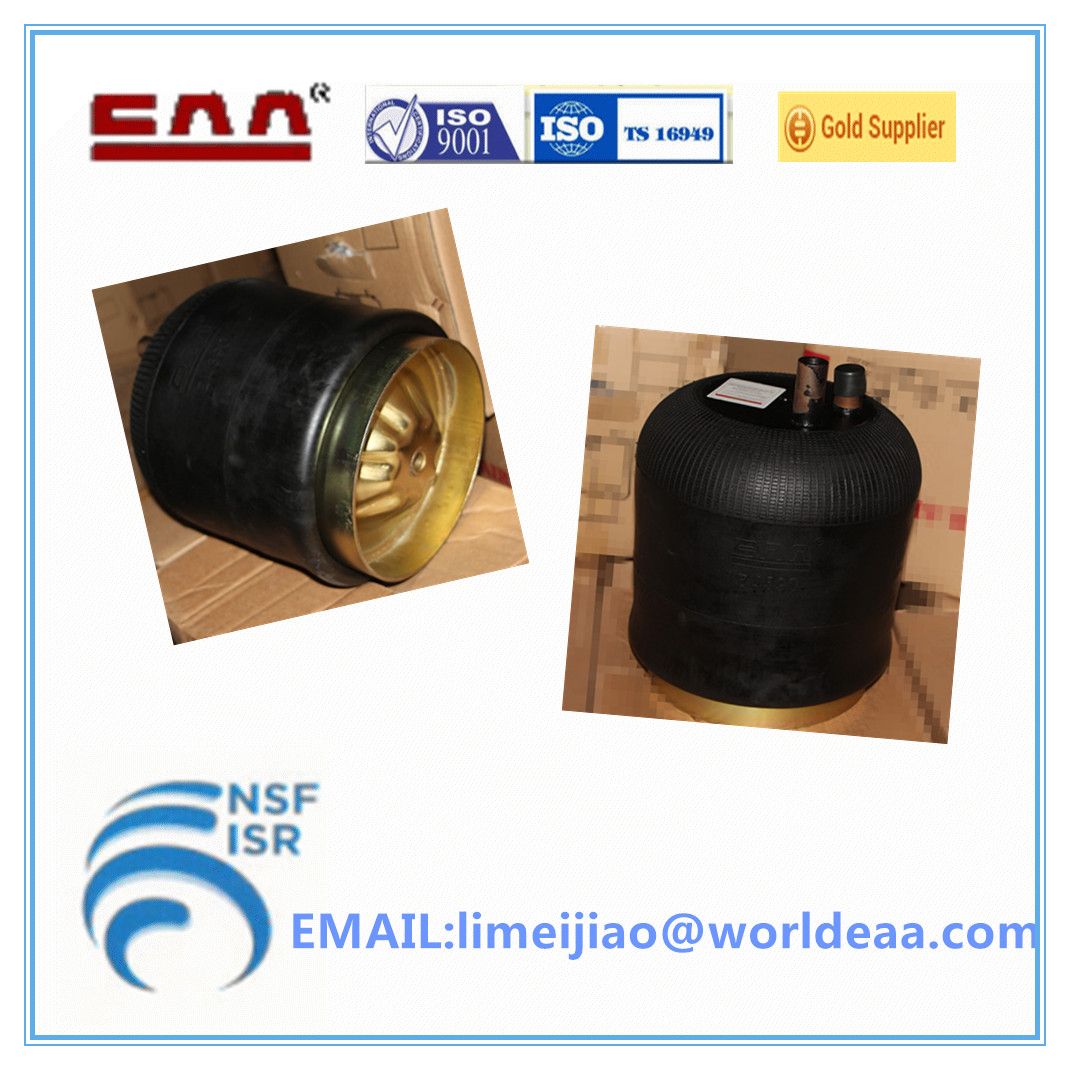

Name: A9423200121 Rubber Air Spring Suspension 4390np01
Brand: ibuyautoparts.com
SKU: 702373162
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 45/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E4390
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Height:	282mm
Working Stroke:	290mm
Part:	Air Spring
Position:	Rear
Type:	Gas-Filled
Spring Type:	Air Spring
Spring Material:	Rubber
Damping Force Direction:	Bidirectional
Application:	Daimler Chrysler
Brand:	Eaa

Product Description

Cross Information	OEM Information	Technical data
CONTITECH :4390NP01/4390N1	DAIMLER CHRYSL ER:A9423200121	Weight: 7.5kg
AIRTECH:3439-01K		Design height:282mm
FIRESTONE ORDER NR :W01-M58-8514		Deflection(Hight min):190mm
GOODYEAR:9505/9507		Deflection(Hight max):480mm
DUNLOP FR:D12T10		Working stroke:290mm
		Measurement d max:285mm
		Space required:300mm
		Loading cap.at0.3bar:1.3kN
		Loading cap.at7.0bar:29.0kN

EAA rubber air spring

Best service for you!

1.Providing the right products for you in professional suggestion

2.most considerate service for you

3.Supporting sample to check before order

4.one year prodcuts warrenty

5.timely delivery

We are Qingdao EAA Rubber Ind. Co., Ltd., who have great power and experience in supplying and producing all kinds of air spring and Tyre in China, now our product range reaches almost 300 types which are equivalent to Conti, firestone and Goodyear...Fit for bus, truck, trailer and industrial application. Meantime, we have exported all kinds of air spring to America, Europe and Southeast. Asia with premium quality and competitive price for the OEM and aftermarket.

We are always prepared to increase our range of products by particularly requested articles or to produce according to particular samples or drawings in accordance with our customers' requirements.

As a global strategy, we are planning to find more partners in oversea markets, so if any interest, please feel free to contact us.
