PEAK CORPORATION >> 9000lbs Capacity Blue 4 Post Columns Lift for Car Repair Station (409)

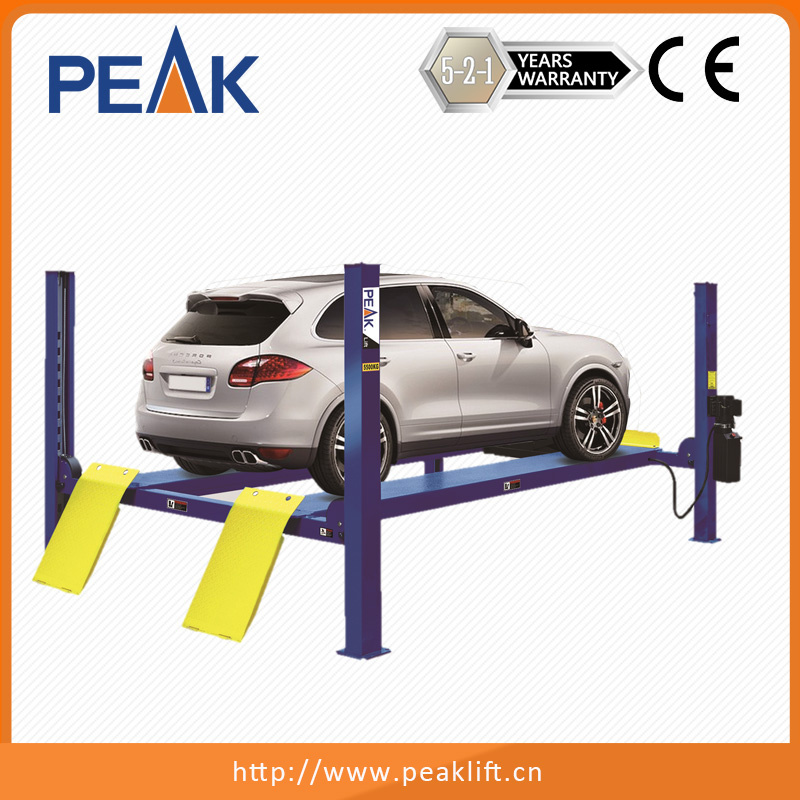

9000lbs Capacity Blue 4 Post Columns Lift for Car Repair Station (409)

9000lbs Capacity Blue 4 Post Columns Lift for Car Repair Station (409)
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 409
Color: Blue
Surface Treatment: Spray-Paint
Lifting Time: 45 Seconds
Lifting Height: 1865mm(73 1/2")
Motor: 2.0/3.0HP
Gross Weight: 965kg(2,127lbs)
Type: Four Cylinder Hydraulic Lift
Lifting Capacity: 4T
Certification: CE
Design: Four Post
Brand: Peak

Product Description

409  9000Lbs Capacity Blue 4 Post Columns Lift For Car Repair Station

PEAK's Series of 4 Auto Lift
ModelLifting Capacity
4094.0T (9,000 lbs)
409A4.0T (9,000 lbs)
4125.5T (12,000 lbs)
412A5.5T (12,000 lbs)
4146.5T (14,000 lbs)
414A6.5T (14,000 lbs)
* "A" with alignment function.


Feature
• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Non-skid diamond platform.
• Adjustable platform and adjustable safety lock ladders.
• Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a second safety device.
• Optional Jack: J6H (hand pump), J6A (SPX Air pump) and include 1.5", 2.5" extension adapters.
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).




409  9000Lbs Capacity Blue 4 Post Columns Lift For Car Repair Station
Model409
StyleFour Post Car Lift
Lifting Capacity4.0T (9,000lbs)
Lifting Time45 Seconds
AOverall Length (With Ramps)5512mm (217")
BOverall Length (No Ramps)4600mm(181 1/8")
COverall Width3208mm(126 1/4")
DWidth Between Columns2852mm(112 1/4")
ELifting Height1865mm(73 1/2")
Gross Weight965kg(2,127lbs)
Motor2.0/3.0HP
Packing Dimension4670 X 560 X 720 mm
QTY of Container12 Units/20'GP
24 Units/40'GP



EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!

PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.

PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.

Each PEAK lift is designed for customers who seek the world-class products!
