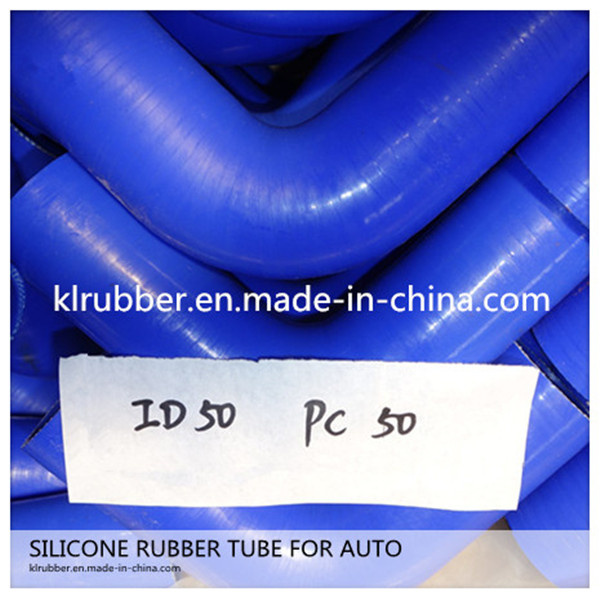

90 degree reducing elbow silicone radiatorhose
Description
1. Made of High Quality Silicone, for High Temperature and High Boost Application
2. 1 to 5 Ply Polyester for Strong Reinforcement
3. Full 2 to 6 mm Thickness (3-Ply: 4mm, 4-ply: 4.5 or 5mm)
4. Withstands Operating Temperatures from -40 degree.F to 482 degree.F (250 degree.C)
5. Working Pressure from 0.5 to 6 Bar (7.25 to 87 PSI)
6. Burst Pressure: 12 to 20 Bar (174 to 290 PSI)
7. Shape: Straight, Elbow, Hump, Reducer, Formed
8. Application for Universal: Basic Replacement, Custom Turbo, Supercharger charge piping set up, custom compressor, inlet for turbocharger and supercharged cars, vehicles, boats etc.
9. Attention: Silicone Hose is compatible with water or anti-freeze such as coolant.
Silicone Hose is NOT compatible with fuel or oil.
10. Custom-built Rubber Hoses are welcome.
Main products we have:
1. Straight lengths silicone hose (1m long)
2. Straight coupling silicone hose (76mm long)
3. Stand elbow silicone hose (90 degree, 45 degree, 135 degree, and 180 degree elbow hose)
4. Hump silicone hose (Single hump, multiple hump, and hump hose with steel ring)
5. Straight reducer silicone hose (transition hose)
6. Reducer elbow silicone hose (90 degree, 45 degree reducer elbow hose)
7. Vacuum tube (vacuum silicone hose)
8. Fiber Braided Silicone Hose
9. Hose clamp
10. Hose kits
PROFILE |
| we are the manufacturer |
| Certificate : ISO 9001:2000 |
| Silicone Hose Category | Material of our product |
| Straight Reducer | Silicone |
| Straight Hump | EPDM |
| T-shape Hose | Viton |
| Elbow Hose: 45°/60°/90°/135°/180° | NBR(nitrile -butadiene rubber) |
| Silicone Hose Specification | Our Product is Used for |
| Material | Silicone | Engine Air Supply | Exhaust pipe |
| Working temperature | -50 ~ 260 °C | | Intake pipe |
| Support Pressure | 0.3 to 0.9MPa | | Turbocharger hose |
| Explosive Pressure | 5.5~9.7MPa | Crankshaft& Camshaft | Breather Hose |
| Hardness | 35~80 shore A | Engine Cooling System | Radiator Hose |
| Thickness | 2mm ~ 6mm | | Coolant pipe/water pipe |
| Diameter Range | 10mm~120mm | We are the regular supplier for |
| Color options | blue/black/red ,at your request | VOLVO,MERCEDES BENZ,SCANIA,IVECO, Cummins etc |
| Size tolerance | +/- 0.5mm | |
| Reinforcement | 1~4 layers of polyester or nomex | |
| We even can provide special products, according to customer's drawings or samples at any time. |
| OEM hose was welcome |
| Logo designed was available |
Shijiazhuang Standards Rubber Products Trading Co., Ltd. It is located in the International Science & Technology Park, Shijiazhuang City, Hebei Province. Our company boasts the integration of research, development, production and sale with highly professional capabilities.
Our main products include all kinds of rubber and plastic products, such as high pressure rubber hose, PVC/PU/PA hose, metal hose, silicone hose, seal strips, silicone rubber products, rings, and other plastic products. These products are widely used in truck, car, shipping, railway, machinery, bridge, drilling industry, and other areas. The main materials are rubber, PU, PA, EPDM, PVC, silicon, NBR, BR, CR, TPE and ABS. Our company has already established good and cooperative relationships with many domestic automotive manufacturers, building wall manufacturers, door and window manufacturers, special machinery plants and power plants.
Our company has always stuck to the principle of "quality and reputation must go first". All of our products are ISO9001 certified and enjoy a high reputation among many clients and users. Our products sell well in Europe and the USA. Our engineers are able to provide different designs of products and develop various new products to meet customers' individual needs.
In the new century, with the spirit of creativity, our company will continue to do our best to develop more up-to-date products and make them more practical. We have the confidence that our clients and users will be satisfied with our products.
