Dingxiang C&N Huarui Forging Co., Ltd. >> 85mm White Faceplate Rudder Angle Gauge Stainless Steel Bezel 87-900ohm with Mating Sensor for Boat Yacht

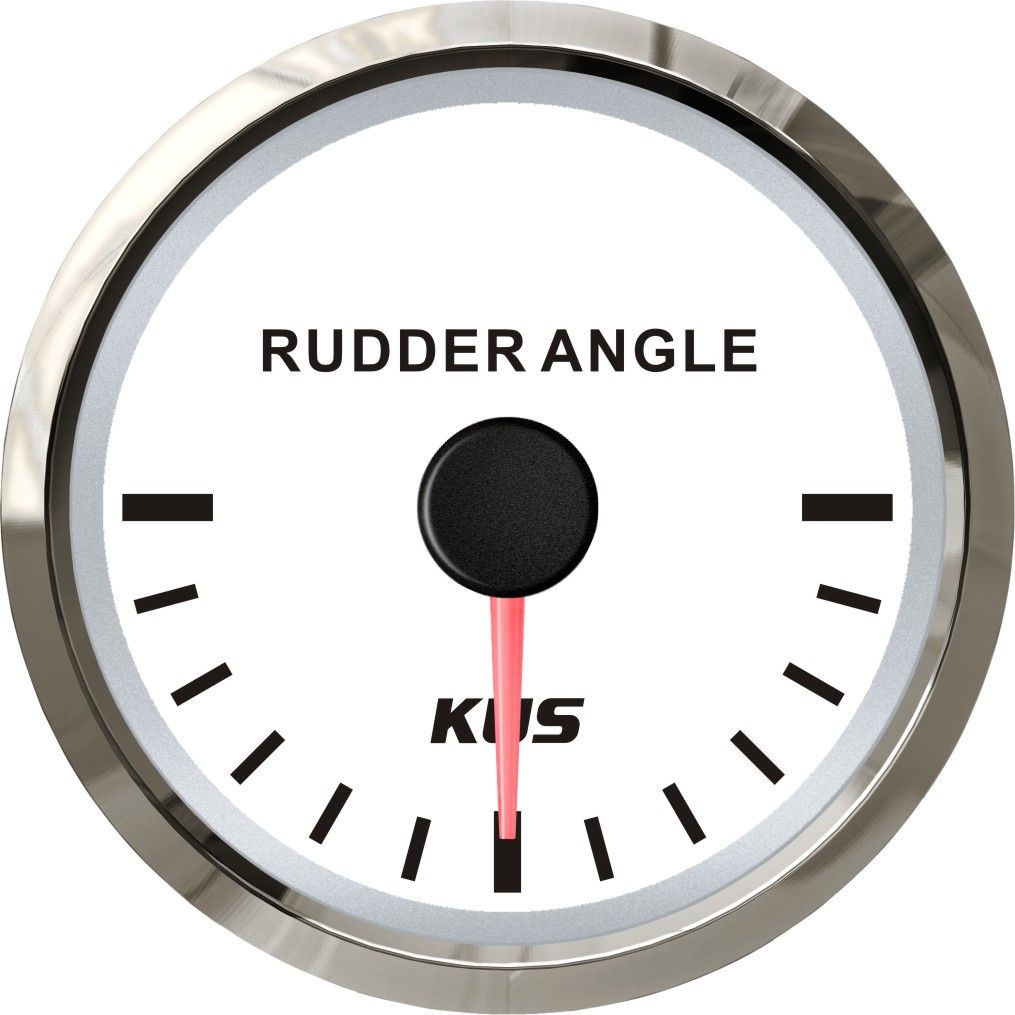

85mm White Faceplate Rudder Angle Gauge Stainless Steel Bezel 87-900ohm with Mating Sensor for Boat Yacht

85mm White Faceplate Rudder Angle Gauge Stainless Steel Bezel 87-900ohm with Mating Sensor for Boat Yacht
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product Description

Be suitable for all kinds of rudder sensor , and display the direction of the underway marine.
Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
Operating temperature: -40°C ~+85°C
Protection rank : IP67.



Product Information
Operating voltage: 12V/24V
Fixing dimension: 52mm.
Scale Part: 0-4/4
Description: Magnet Movement gauge
Weight: 100g/each one pcs
Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
Accessories: Installation Instructions;  Wires and resistance.



Product Features
Protection grade is IP67, the whole body is completely waterproof;
Excellent antifogging function;
316 Stainless steel bezel with curved glass;
Convenient Installation by multi-pliug socket connecting way;
Red and yellow dual-color background light can be choosed;
The moving magnet gauge need to connect to extra resistors for 8V-16V working voltage.
Item Type: Other
Is Customized: Yes
Indicating Range: R-L
Working Voltage: 12V/24V
Installation Dimension: 85mm
Material: Stainless Steel
Color: White
Warranty Period: One Year
Place Of Origin: Shanghai China (Mainland)
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.

Our production scope:

Butt weld Fittings:

Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312

Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc

Forged fittings: THREADED/SOCKET WELD

ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83

ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT

Flanges: ASME/ANSI/API JIS, DIN, EN/BS

Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,

We are also offering our customer a total soluation for the whole piping material packages

Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.

For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
