0.76mm PVB Film for Automobile Windscreen with CE/SGS/ISO9001
| 0.76mm |
|
Appearance | Surface | Smooth surface without Nick,Crease,Bond; The color band should be evenly distributed and the width of transitional region is equalized |
Band Color | Clear, Blue,Green ,Gray & others |
Crystallite and watermarks | Crystallite Diameter exceed 2.0mm is not allowed. No visible watermarks. |
Visible defects (impurities, bubbles, oil, drop etc.) | Defects Diameter exceed 0.5mm and allowed maximum 6 defects per 200m |
Defects Diameter exceed 0.5mm to tag on PVB film; Diameter less than 0.5mm in the Intensive defects area* must tag on one defect. The defects marks and places should be showed in the packing list. |
| Thickness tolerance(mm) | Plus or Minus 0.04mm |
Thickness and size | Uniformity ratio | At any two points from 25mm distance either horizontally or vertically of the thickness tolerance is less than 15μm; (or 50mm - less than 25μm; or 100mm - less than 50μm) |
| Length (m) | Normal length |
| Width (mm) | Normal width |
Roughness Rz | 15 -70 |
Moisture content (%) | 0.35 - 0.55 |
Heat shrinkage rate ( 60ºC/15min) (%) | 8 Max |
Pummel value | 7 Max |
Light transmittance (%) | 85 Min |
Haze (%) | 0.2 - 0.4 |
UV Screening, up to 380nm (%) | 99 |
Tensile strength (MPa ) | 20 Min |
Tensile elongation (% ) | 200 Min |
Yellowness index (%) | 10 Max |
*Intensive defects area: Within the 300mm diameter circle, the defect numbers |

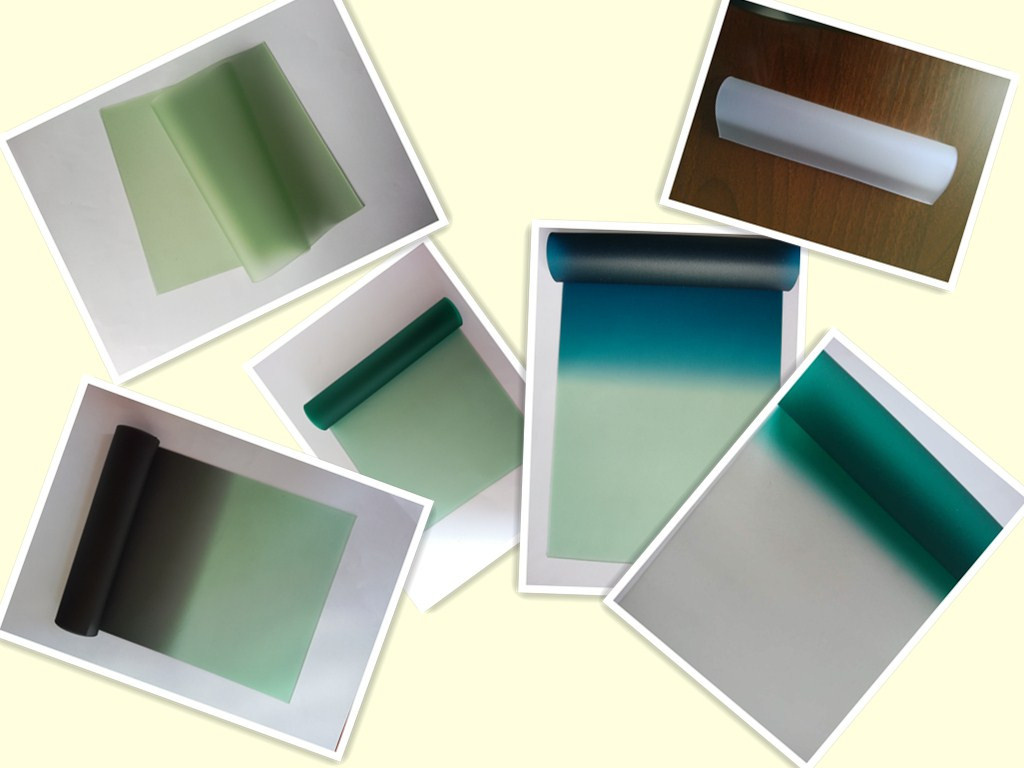

Color: Blue on clear, green on clear, grey on clear, green on green, blue on greenThickness: 0.76mmWidth: 600mm-2500mm
Band width: 0-230mmLength: 200

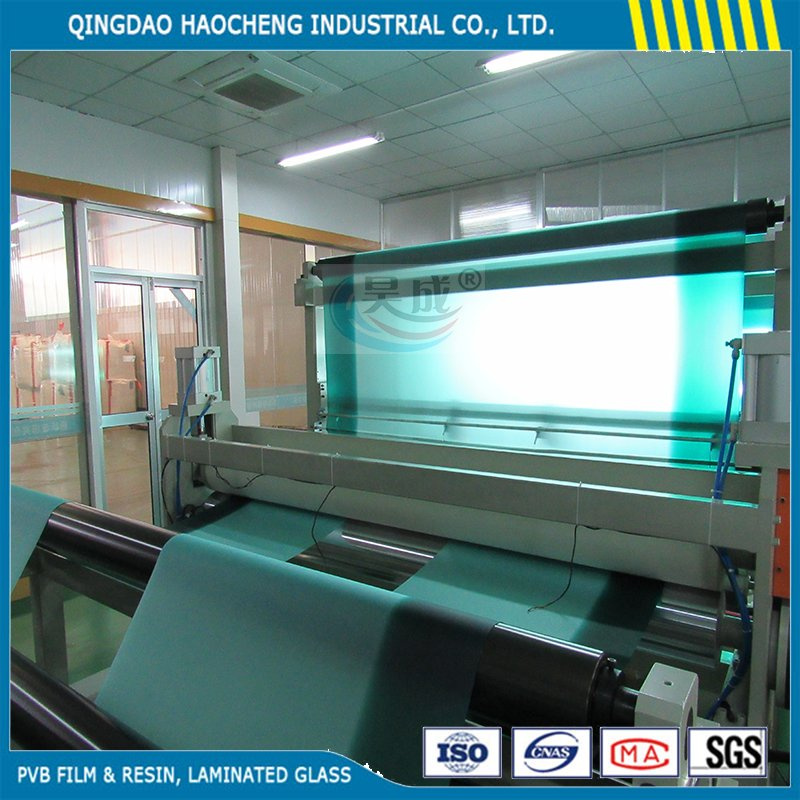

Other size can be customerized.Packaging&shipping: Every layer of PVB film should be separated by PE film then vacuumed with aluminum foil and lastly into specified plywood box or fiber can.Why are we your best choice?-Professional foreign trading service-Fast delivery &shipping by LCL or FCLWe have two large production lines working in 24 hours, which ensure the timely delivery for you, it is often in 3 working days after your order.-Competitive priceWe are manufacturer, and we have the best price in the market, we do not have a middleman.-Flexibility of production planningWe are factory and can adjust the production plans according to your order. We are now exploring the overseas markets, so every foreign order has been put in the first place.Your order is always our priority.-Guarantee of qualityhigh quality and perfect after sale service-Variety of products
Best regards
Wendy Yang
Tel :+86-13854209824
Qingdao Haocheng industrial Co., Ltd. is located in Qingdao of China and founded in 1985, And covers the entire Chinese market and exports to a lot of countries, and enjoy a good reputation internationally in the circle of our business. Which the company are specialized in chemical & fertilizer, architecture and equipment manufacturing. And the company has an integrated Hi-Tech experienced strong R&D team, and scientific managerment, honored "AAA" Grade Credit-Enterprise and achieved ISO 9001: 2000 certificate in October 2003.
Now Haocheng is engaged in the research & production of PVB resin, PVB interlayer, PVB plastics (3GO) and Laminated glass sheet to keep pace with the world demand. And also, we can guarantee our product quality and save producing costs to get a good market competitiveness. Going with company develoment, we are looking for new team of partner with strong integrity to join us to enjoy our business together.
The company continually strives to optimize their strong relationships with clients and principals by providing the Best quality products and superior level of service. The company businesses always adhere to on the basis of Principle equality and mutual benefit, honouring contracts, keeping promises. Therefore, the company has the Capacity to support the business in its constant growth and evolving business environment.
