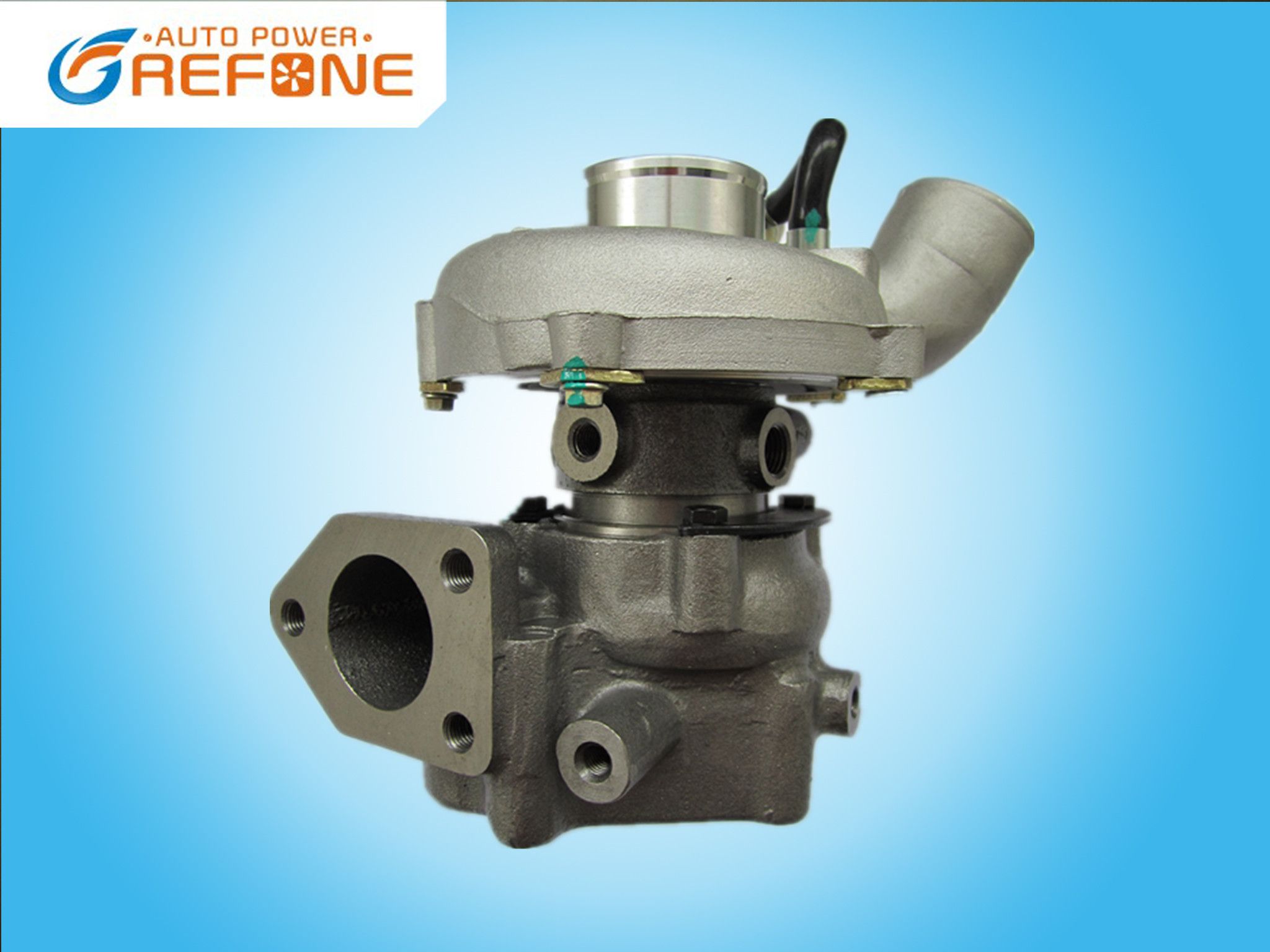

Δ 733952 turbocharger specs
| Part Number |
733952-5001S
|
| Previous Version |
733952-0001, 733952-1
|
| OE number |
282004A101, 28200-4A101
|
| Year |
2002-
|
| CHRA |
433352-0032
|
| Turbo Model |
GT1752LS, GT1752S
|
| Engine |
D4CB
|
| Displacement |
2.5L, 2500 ccm, 4 Cylinders
|
| KW |
86/140 HP
|
| RPM Max |
4000
|
| Fuel |
Diesel
|
| Bearing Housing |
434578-0012
|
| Turbine Wheel |
729099-0001
|
| Comp. Wheel |
702492-0001
|
| Back plate |
701335-0009
|
| Repair Kit |
732252-0001
|
| Turbine Housing |
435788-0071
|
| Compressor Cover |
435791-0142
|
| Actuator |
432340-0118
|
| Gasket (turbine inlet) |
210564
|
| Gasket (turbine outlet) |
210565
|
| Gasket (oil outlet) |
210243
|
| Replaced By |
733952-0004
|
Δ Applications
2002- Hyundai Sorento, Kia With D4CB Engine
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
Δ REFONE TF035 turbochargers
| TURBO MOODEL | TURBO PART NO. | OE NO. | CAR MARKER | APPLICATION | ENGINE |
| TF035 | 49135-05130/49135-05132/
49135-05131/4913505130/4913505131/
4913505132/4913505140/
53039880115/53039700115 | 504340182, 504136785,
71792081, 71792013, 71793636
8070917, 124664, 530390 | FIAT | Fiat Ducato 120 Multijet III, Commercial | F1AE0481D, FIA Euro 4 |
| TF035 | 49135-02910/49135-02920/49135-02921/
49135-02912 | 1515A123 | MITSUBISHI | Mitsubishi Triton, Shogun, Pajero, Montero | 4M41 |
| TF035 | 49135-03310 | ME202966 | MITSUBISHI/FUSO | Pajero, FUSO Canter | 4M40 |
| TF035HM-12T | 49135-03111 | ME202435 | MITSUBISHI | Challenger, Space Gear | 4M40 |
| TF035 | 49135-04210 | | MITSUBISHI/HYUNDAI | Mitsubishi Various Commercial Hyundai Starex,
H-1 Box, H1, H200 | |
| TFO35 | 49135-04350 / 49497-66101 | 2820042800 | HYUNDAI | Grand Starex | |
| TF035 | 49135-05610/49135-05620/49135-05640/
49135-05650/49135-05651/49135-05660/
49135-05670/49135-05641 | 7795499, 11657795499, 779549907,
1165779549907, 7795498J09,
11657795498J09, 11654716166,
4716166, 7795498, 7795498D704,
11657795498, 11657795498D704,
779549807, 1165779549807,
7795499K, 7795499K10 | BMW | 120 d (E87), 320D (E90/E91) | M47TU2D20, M47TUe2-OL, M47N204D4/N47D20A, N47D20C |
| TF035 | 49135-07300 / 49135-07100 /
49135-07302 /49135-07301 | | 2823127800, 28231-27800 | Santa Fe CRDi, 2.2L | D4EB-V |
| TF035 VGT | 49135-07310/49135-07311/49135-07312 | 28231-27810 | HYUNDAI | Santa Fe, Grandeur CRDi | D4EB |
| TF035HL VGT | 49135-02652 | MR968080 | MITSUBISHI | L200, W200-Shogun | 4D56 |
| TF035HL VGT | 49135-05670/49135-05610/49135-05620/
49135-05640/49135-05650/49135-05651/
49135-05660/49135-05641 | 7795499, 11657795499, 779549907,
1165779549907, 7795498J09,
11657795498J09, 11654716166, 4716166,
7795498, 7795498D704, 11657795498,
11657795498D704, 779549807,
1165779549807, 7795499K, 7795499K10 | BMW | 120 d (E87), 320D (E90/E91) | M47TUE |
| TF035HL VGT | 49135-05860/
00220/00230/00440/05840/05850/05885/05895 | 781019903D/1165781019903D/
09010700064/11658506892/11657808478/
11657797782/7797781/850689101 | BMW | 120D (E81 / E82 / E88), 320D (E90 / E91 / E92 / E93),
520D (E60N / E61N), X3 2.0L D (E83N) | N47-D20C, N47D20 N47OL |
| TF035H | 49135-03410/49135-03411 | ME203949, ME191474 | MITSUBISHI | Pajero III 3.2L DI-D | 4M41 |
| TF035HM | 49135-04000/49135-04001 | 282004A150 | HYUNDAI | Commercial H 200, Starex, Libero, Galloper II, H1 | 4D56T |
| TF035HM | 49135-04010/49135-04011 | 282004A160 | HYUNDAI | Commercial H 200, Starex, Galloper II, H1 | D4BF Euro-2, 4D56TI |
| TF035HM | 49135-04020/49135-04021 | 282004A200 | MITSUBISHI/HYUNDAI | Hyundai Starex, Libero, Galloper II, Terracan, H1,
Mitsubishi Galloper, L200 | 4D56TI |
| TF035HM | 49135-04030/49135-04131/49135-04121/49135-04031 | 282004A210 | MITSUBISHI | Gallopper II | D4BH |
| TF035HM | 49135-06037 | 3C1Q-6K682-FB | FORD | TRANSIT 24.DL 120HP | PUMA |
| TF035HM-12T | 49135-03101 | ME201677 | MITSUBISHI | Delicia | 4M40 |
| TF035HM-12T | 49135-03130 | | MITSUBISHI | PAJERO 2.8L | 4M40 |
| TF035HM-12T-4 | 49135-02110 | MR212759 | MITSUBISHI | L200 2.5LD | 4D56 |
| TF035HM-12T-4 | 49135-04121 | 28200-4A201 | HYUNDAI/KIA | Starex | |
| TF035HM-13T-6 | 49135-05000 | 99450703 | FIAT/IVECO | Daily 122HP | 2.8L |
| TF035HM-13T-6 | 49135-05010/53149886445 | 99450704, 7701044612, 99466793 | FIAT/IVECO | Commercial Fiat Iveco Daily II, Renault Master,
Opel/Vauxhall Movano | 8140 |
| TFO35HM | 49135-06037/49135-06035/49135-06030 | 3C1Q6K682EB, 1355059, 1020183,
1355059, YC1Q6K682AE | FORD | Transit Bus | PUMA |
| TF035HM | 49135-03110 | ME202012 | MITSUBISHI | Challenger, Pajero | 4M40, 4M40(96-Q-DOM) |
| TF035 | 49135-03112/4913503112 | ME202489, 913503112, 9608085 | MITSUBISHI | Mitsubishi Shogun | 4M40 (P45), 4M40T |
| TF035 | 49135-04302/4913504302 | 28200-42650,2820042650 | HYUNDAI | Hyundai Starex TDi | D4BH, 4D56 A-1, 4D56 A-1 Euro 3, 4D56 A-1 Euro-3 |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
