728768-4 728768-5 760774-3 GT1749V turbocharger 760774 760774-5003S
Products Descreption:| Part Number | 760774-5003S |
| Previous Version | 728768-0004, 728768-0005, 753847-0002, 753847-0006, 753847-5002S, 760774-0003, 728768-4, 728768-5, 753847-2, 760774-3 |
| OE number | 9662464980, 3M5Q6K682CD, 1231955 1327582, 1331247, 1406472, 9654262180, 36002265, 9658728580, 30725134, 9662464980 |
| Year | 2004-06 |
| Description | Ford Mondeo, C-Max, Focus, Kuga. Galaxy, Volvo C30 |
| CHRA | N/A |
| Turbo Model | GTA1749V |
| Engine | DW10BTED4S, DW10BTED, DW10BTED4S Euro-4 PSA |
| Engine Manufacturer | PSA |
| Displacement | 2.0L, TDCi, 2000 ccm, 4 Cylinders |
| KW | 102/104/136 HP |
| RPM Max | 4000 |
| Fuel | Diesel |
| Comp. Wheel | 702489-0005/702489-0001 |
| Heat shield Number | 433112-0001 |
| Nozzle Ring Assembly | 704013-0052/704013-0035 |
| Actuator | 724290-0018 |
| Turbine Housing AR | VNT2 |
| Gasket (turbine inlet) | 210572 |
| Gasket (oil outlet) | 210243 |
Applications
2006- Ford Kuga TDCi, Focus C-Max TDCi, Mondeo with DW10 BTED4S Duratorq Engine
2006- Volvo C30 with DW10BTED4S Engine
2004- Volvo S40 with DW10BTED4S Engine
2004- Volvo V50 with DW10BTED4S Engine

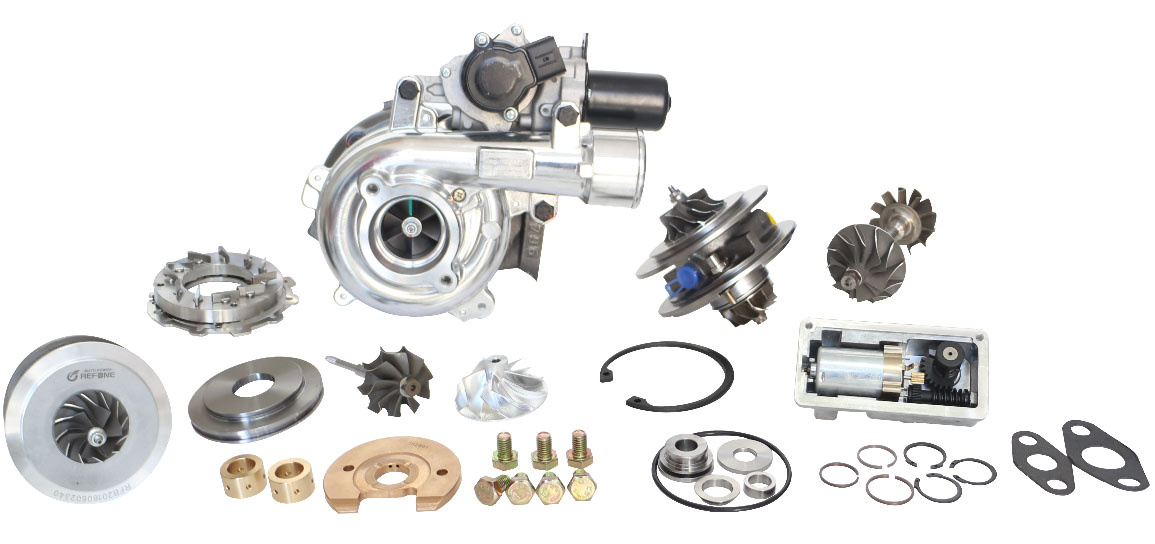

Main Product And Component
Quality Control:
Final Inspection:
Company Information
Refone Auto Power Co., Ltd. Is a specialized company engaged in manufacturing turbocharger replacement, performance parts for turbo and which is a high-tech enterprise in researching, developing, manufacturing andmarketing turbocharger and turbo spare parts for automobile & engineering machine.
We have became one of the largest suppliers of turbochargers in China.
We are looking forward to establishing long-term cooperative relationship with you.
Our Service for Turbocharger
1. Fast Delivery
2. Gold Aftersale service: Take photos Sending back for testing Send new turbo to customer.
3. Warranty: 12 months
4:package for Turbocharger
1:Turbocharger in Mold foam
2:Turbocharger in Plastic bag
3:Strong Canton Pallet
4:The Package as the customer requirement.
Why choose us:
1) The products have passed the balancing test and the high speed CHRA balancing test,and the product has vocational certification .
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. We confident that we are capable to meet your quality standard .
4) The competitive price from the own manufactory,Probably,You pay much attention to lower your cost for turbocharger.That is where i can be of help.
Q: Do you have other models?
A: Yes, we have, because the model is numerous, which can't show on the website one by one, any model needed, please send emails, i will reply within 24 hours seriously!
Some Related Hot-Selling Size As follow:| 1 | Model | Turbo OEM Number | Application |
| 2 | GT1238S | 708838 | Cabrio 0,6 (MC01) YH Engine M160R3 3 Cyl |
| 3 | GT1749V(S1) | 713672 | 2000-06 Audi A3 TDI with PD UI Engine |
| 4 | GT1749V, GT1749MV, GTA1749MV | 713673 | Volkswagen: BEETLE, CADDY TDI, BORA TDI, SHARAN TDI |
| 5 | GTA1749MV(S2), GTA1749MV, GT1749MV, GT1749V (S2) | 724930-5009S | Volkswagen Golf V TDI, Jetta TDI, Passat TDI, Touran TDI BKD 2.0 TDI 4 Valve Euro-4 |
| 6 | K03 | 53039880123 | 2006-2011 Audi Car with TFSI Engine |
| 7 | K03 | 53039880118 | Peugeot 207, 308, Mini Cooper S |
| 8 | K04 | 53049880049 | Opel Astra |
| 9 | RHV4 | VB23 | 2008-12 Toyota 200 series Land cruiser C-Rail with 1VD-FTV VDJ76/78/79 Engine |
| 10 | TD03L4, TDO3L4-07T/VG | 49131-06007 | 2003-Opel Meriva A 1.7L CDTI Engine Z17DTH |
| 11 | GTA4502V | 758206-0006 | 2000-13 Detroit Diesel Truck with Series 60 Engine |
| 12 | HY55V | 40646945 | 2007- Iveco Truck with Cursor 13 Engine |
| 13 | GTB1749VK | 798128-5004S | Peugeot Boxer with Duratorq 2.2 Euro 5 Engine |
| 14 | BV45 | 53039880337 | 2010-12 Nissan Navara, Pathfinder with 2.5 dCi, YD25DDTI Engine |
| 15 | GTA1749V | 761618-5003S | Suzuki Grand Vitara DDiS with F9Q264-266 Engine |
| 16 | RHV4 | VJ36 | Repair Kit With MZ-CD Engine |
| 17 | GTA2052GVK | 757608-0001 | Chrysler 300C CRD with OM642 Engine |
| 18 | GTB1749VM, GTB1749VM(S3) | 757042-0015 | Audi A3 2.0L TDI (8P/PA) with DPF PQ35 Engine |
| 19 | TF035HL-10GK23-VG, TF035HL | 49135-07312 | Hyundai Santa Fe, Grandeur With D4EB Engine |
| 20 | BV39-1867DCG426.18AVAXC | 54399700030 | Nissan Qashqai 1.5L dCi Engine K9K Euro-4 |
| 21 | K03-2072GAA5.88KCAXK, k03-005 | 53039880029 | Audi A4 1.8T (B5) Engine Code APU, ARK |
| 22 | K03-2072CCB5.82KDAXD, K03 | 53039880055 | Nissan Interstar 2.5L dCI with G9U720 Engine |
Note:
Turbo core is precision moving parts with high speed, please invite professional engineer to opetare the installation and maintenance, before installing, please replace qualified oil and ensure the pipeline is unblocked so that it will not damage the engine. Let,s Talk a More.
Cristile Salesman
Refone Auto Power Co.,Ltd
Website: www.cnrefone.com
Mobile Phone:+86 18019917597
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
