Battery operated wireless CCTV security 700TVL drain pipe inspection camera(V8-3288)
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.

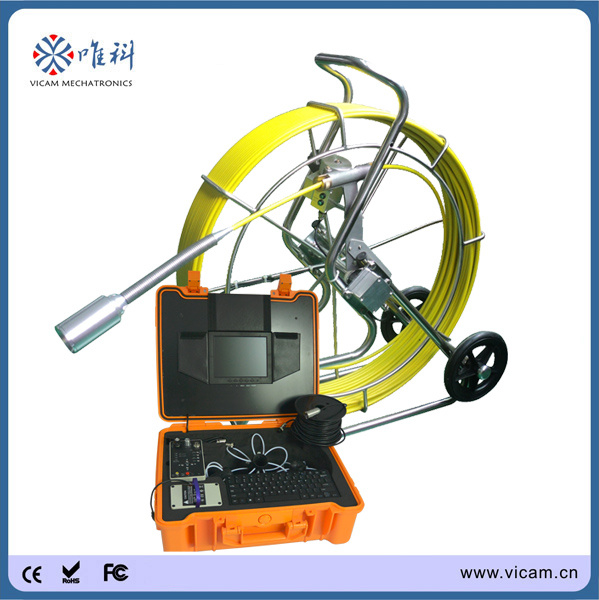

Heavy-Duty and Handle Soft Cable Reel 2 in 1 Pipe Inspection System Set
Ideal for 2 different use
1. Heavy-duty CCTV Inspection kit
Big Camera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use
Havey-Duty Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
* New design Counter device error rate less than 0.1%
2. Handle inspection kit
Small Camera Head
* Stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
* handle cable reel
* ideal for underwater or vertical pipe inspection
Monitor
* 8 inch TFT LCD monitor
* Display model: 4: 3
* Visible angle: Horizontal & vertically 170°
* Power supply DC 12V
DVR Control Box
* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD CARD INCLUDED)
* Li-ion Battery power supply pack (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week
|
Model |
V8-3288B |
|
Brand |
VICAM |
|
Cable 1 |
diameter 9mm*60m fiberglass push rod cable(60m to 200m optional) |
|
Cable 2 |
30m soft cable with 23mm stainless camera head |
|
Carrying case |
ABS engineering carrying case |
|
Reer size |
845*435*930mm |
|
Application |
Widely used in industrial plumbing pipe inspection, drain , pipe, sewer inspection, underwater inspection, underground inspection, water course study, etc. |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
