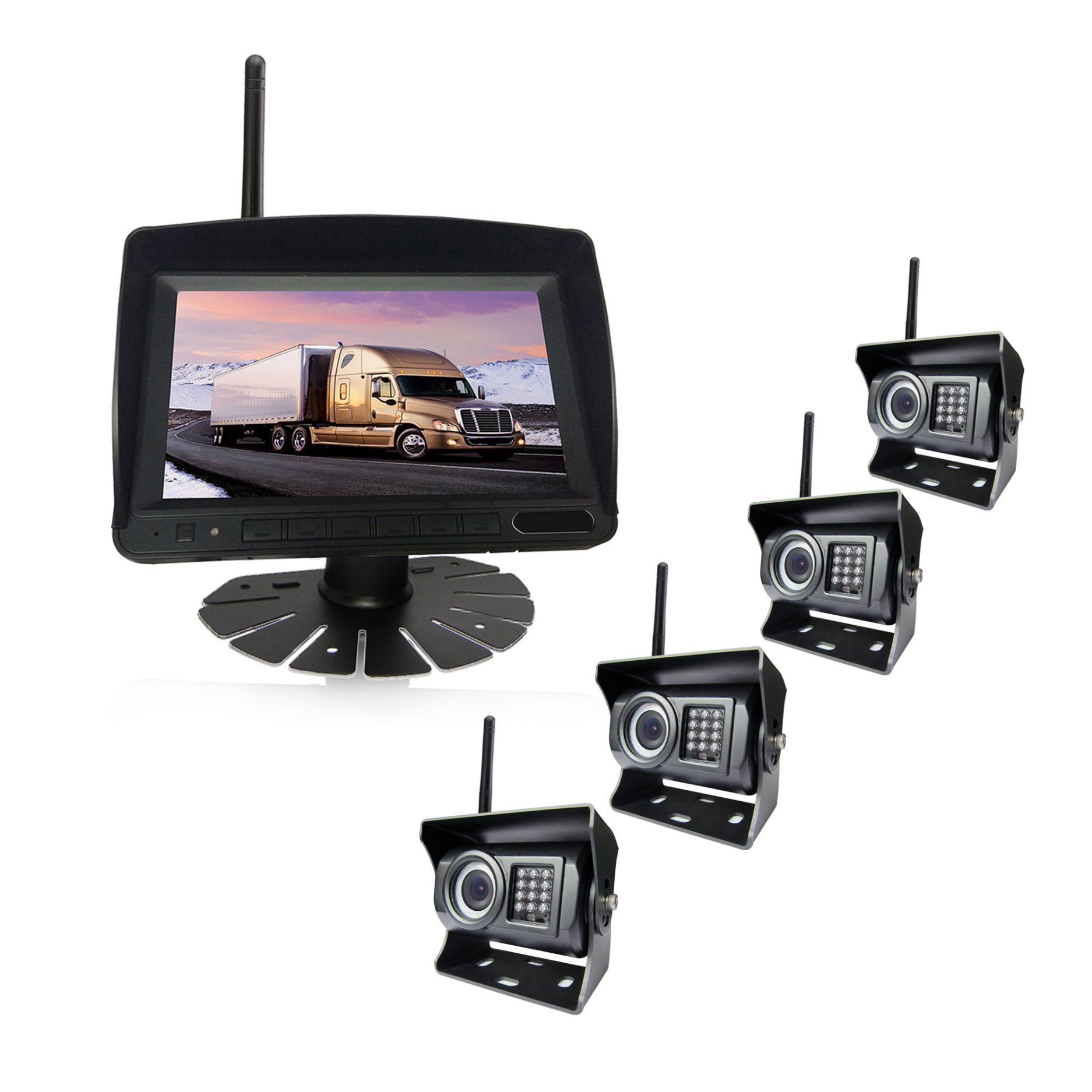

7 Inch 4CH 2.4G Digital Wireless Monitor and Backup Camera for Plough, Trailer, Truck, Barn Vision

Name: 7 Inch 4CH 2.4G Digital Wireless Monitor and Backup Camera for Plough, Trailer, Truck, Barn Vision
Brand: ibuyautoparts.com
SKU: 814950405
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 150/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-707RSW

Product Description

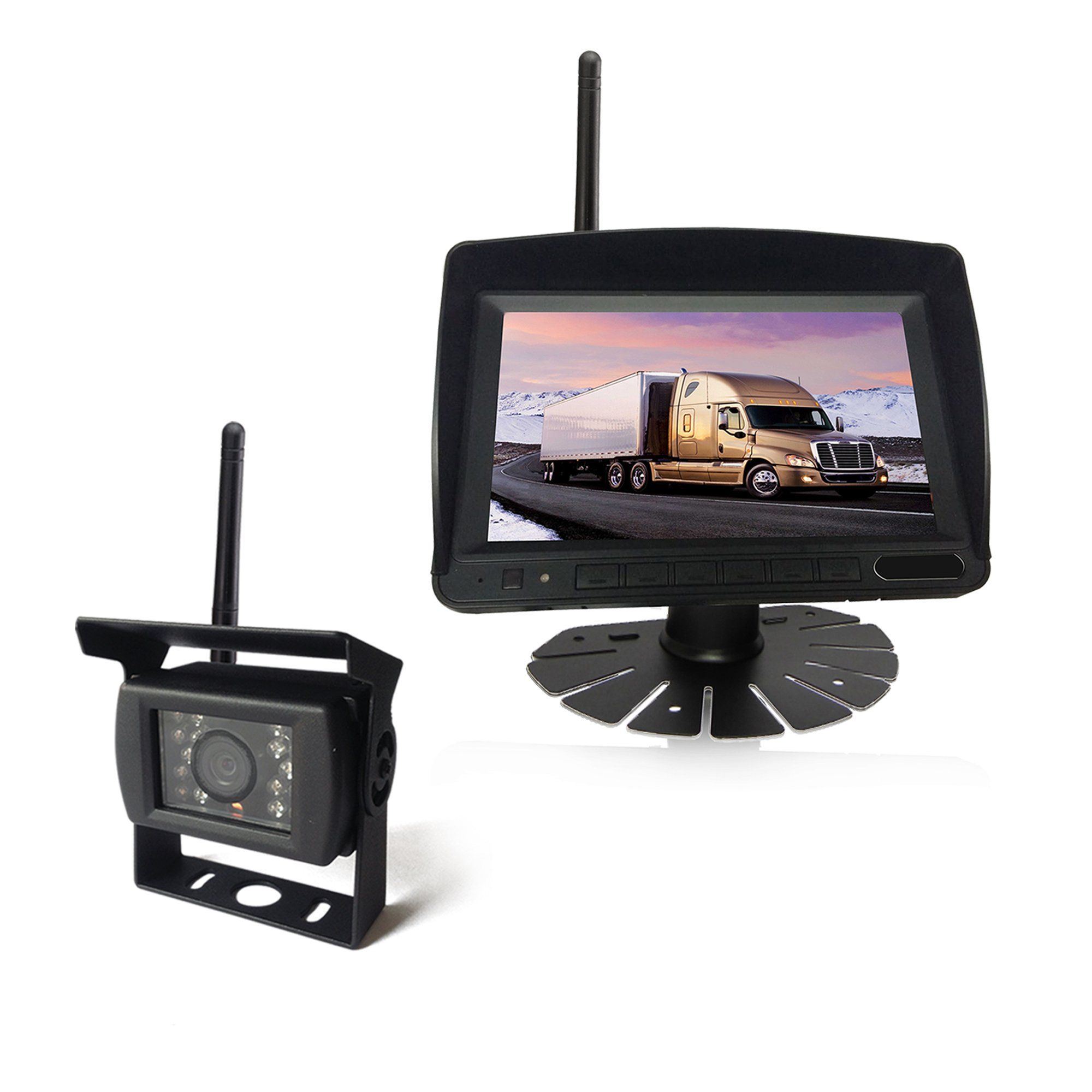

Wireless camera system in 4CHs, with waterproof camera

Specifications of 7'' LCD monitor: (LED digital panel)
1. Resolution: 800 x 3 (RGB) x 480p
2. Contrast: 500: 1
3. Dot pitch: (H) 0.192 x (V) 0.1805p
4. Viewing angle U: 50/D: 60 L/R: 70
5. Input power: 10-15V DC
6. System: PAL and NTSC
7. Respond time: 120ms
8. Shock resistant, specifically designed for mobile use
9. Picture display format: 4: 3/16: 9
10. Five languages OSD menu: Chinese, English, Russian, German and French
11. Display with two video frequency input automatic/manual switch
12. Includes flat surface/in-dash and adjustable Universal mounts
13. Front panel controls with on-screen menu
14. Operation temperature: - 30 to +70°C
15. Headrest installation optional
16. Sunshade cover is easy to install and take off

Specifications of camera:
Day and night CCD camera
1. OV7725 sensor
2. Waterproof: IP68
3. System: NTSC: 510x492, PAL 500X582
4. Resolution: 420 TV Lines
5. Minimum light: 0 lux (LED on)
6. Electron shutter: 1/100,000 (s), on/off
7. S/N ratio, more than 48dB
8. Video output: 1Vp-p, 75Ω
9. Voltage: 12V DC (+/-10%)
10. Vibrations resistant, especially designed for mobile use
11. 120 degrees

Specifications of MS-610 digital wireless module:
2.4G digital wireless module
Size: 52*50*13mm
Distance of wireless: 150m without obstacle
Transmit power: 0.27A
Power consumption: 1.35W
Receiver power: 0.16A
Power consumption: 0.8W

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
